WESTELETTRIC DHCS22T-24 Orientable LED lamp for industrial machinery, 12W, arm length 280mm, 24V AC/DC, IP65
(Incl. Tax: €386.98)
The DHCS22T-24 orientable LED lamp features a 280+280+280 mm articulated arm that ensures precise and stable lighting for machine tools and workstations. The anodised extruded aluminium head improves heat dissipation, ensuring long LED life with 12 W output, 5700 K colour temperature and CRI 85. The IP65 rating makes it suitable for industrial environments with dust and splashes, while the 57 mm fixing base allows secure and accurate positioning.
Photo-Electric Parameters
| Parameter | Value |
|---|---|
| Colour temperature (CCT) | 5700 K |
| Luminous efficacy (lm/W) | 85 |
| Colour Rendering Index (CRI) | 85 |
| LED energy efficiency class | A+ |
ORIENTABLE LED LAMPS SERIES 24V AC/DC FOR INDUSTRIAL MACHINERY
• Flexible arm light lamps are available with LED light source.
• The lamp head is made of anodised extruded aluminum with thermal convection design that allows a high disposal of the heat produced by the light source.
• Insulation Class III.
• Protection degree: IP65.
WESTELETTRIC DHCS22T-24
| Specification | Value |
|---|---|
| Voltage | 24V AC/DC |
| Power | 12 W |

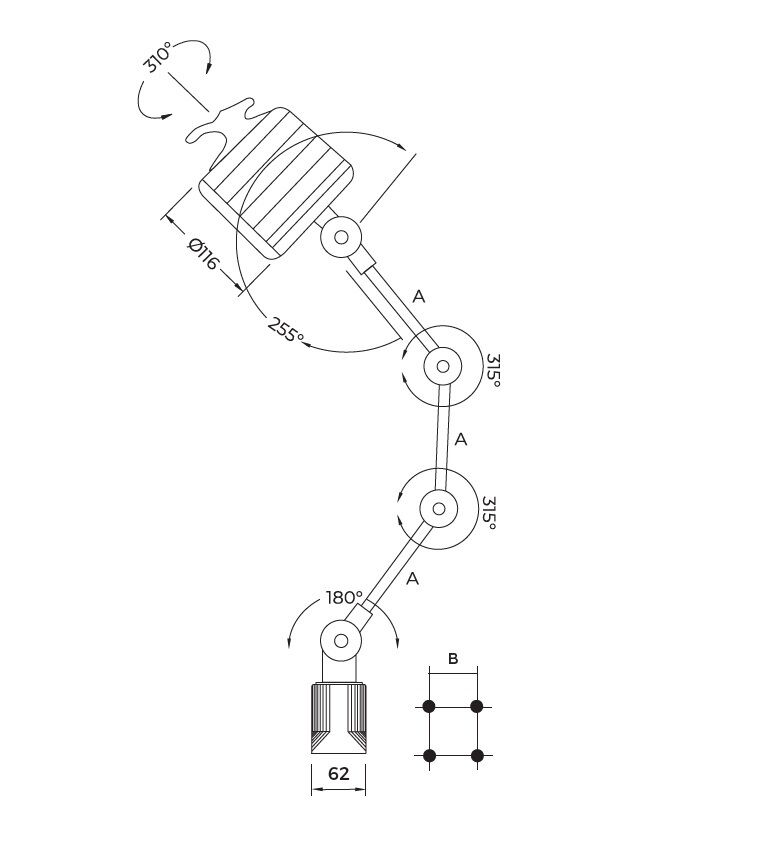

| Arm length A | 280 + 280 + 280 mm |
| Fixing distance B | 57 mm |
| Net weight | 1985 g |
| Head material | Anodised aluminium |
| Protection rating | IP65 |
| Insulation class | III |
- Typology:
- Joint
- Brand:
- WESTELETTRIC
- Power:
- 12 W
- Length "L":
- 280 + 280 + 280mm
- Protection class:
- IP65
