APPLICATION:
Optimized for 5-axis machining without collisions in one set-up.
Particularly suitable for 5-axis machines in combination with a base plate.

TYPE:
Mechanical clamping system with power transmitter, manual
operated.
Short and compact design.

ADVANTAGES FOR THE CUSTOMER:
With tension clamping, workpiece zero point on the operator side
Wide clamping range
High precision positioning
Stable chip protection for longer life

TECHNICAL CHARACTERISTICS:
- Robust steel body and all guides are hardened and ground on all sides
- Supporting jaws incl. swivel hook inserts for round and rectangular jaws
pieces
- Clamping jaw clamping ranges:
Rectangular work pieces: 35 - 215 mm
Circular pieces: 65 - 225 mm

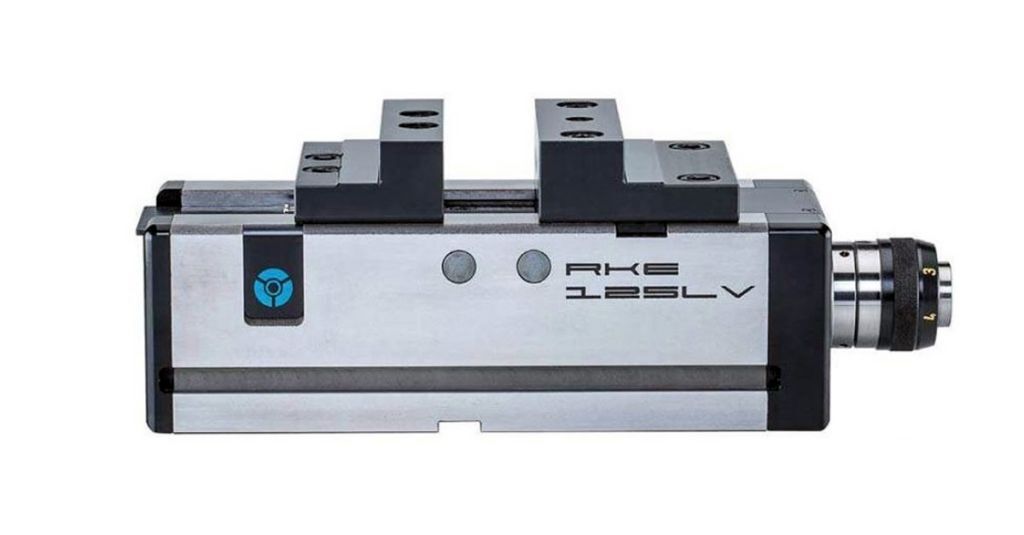

RKE-LV = RÖHM, compact, single locking, lightweight design, short design
