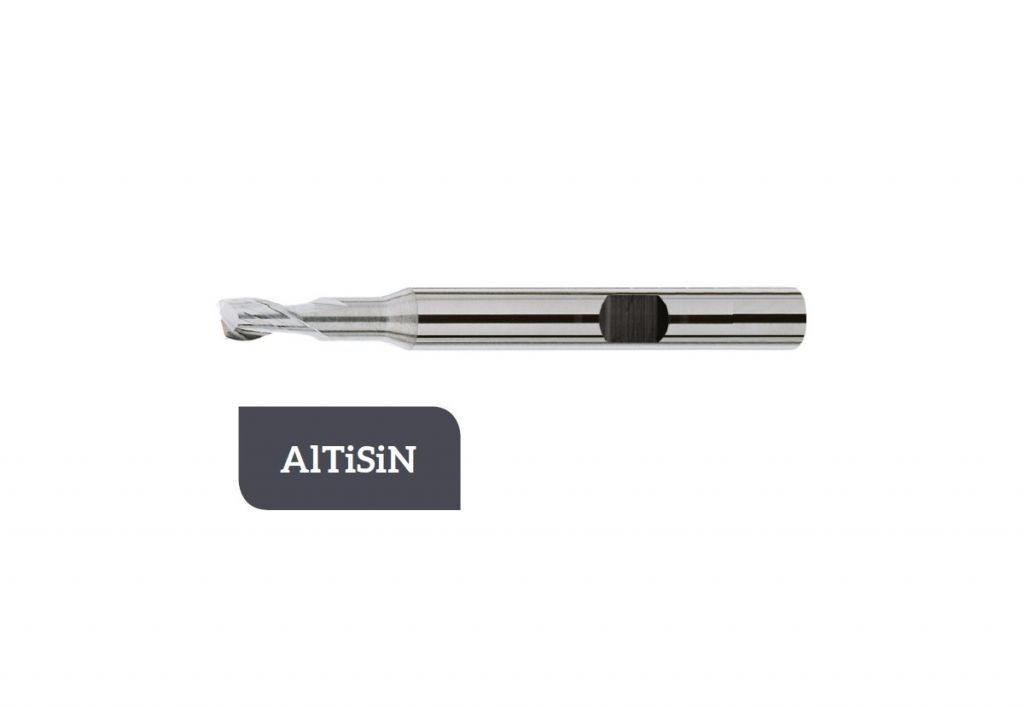

TM-3.2W-0600L Carbide helical end mill Ø6 with two cutting edges, center cutting, with cylindrical shank DIN 6535 HB, coated with AITiSiN
Fresa in metallo duro rivestita in AlTiSiN per la lavorazione e la fresatura di Acciai non legati, Acciai alto legati, acciai inossidabili, Ghisa, Ghisa grigia, Ghisa malleabile, Alluminio, Leghe, Rame, Ottone, Bronzo e Materie plastiche.
Si esegue il servizio di riaffilatura e rivestimento delle frese, mantenendo le prestazioni del prodotto nuovo.
Su richiesta può anche essere rivestita con diversi rivestimenti.
Parametri di lavorazione e scheda tecnica fornibili tramite:
E-mail cliccando qui
The TM-3.2W-0600L carbide helical end mill is designed for precision machining with a diameter of 6 mm. This cutting tool features two sharp cutting edges and is capable of center cutting, which allows for effective plunging into materials. It comes equipped with a cylindrical shank that conforms to the DIN 6535 HB standard, ensuring compatibility with various milling machines.
This end mill is coated with AlTiSiN (Aluminium Titanium Silicon Nitride), a high-performance coating that enhances its durability and wear resistance, making it suitable for machining a wide range of materials. The TM-3.2W-0600L is engineered for processing non-alloy steels, high-alloy steels, stainless steels, cast iron, gray iron, malleable cast iron, aluminum, various alloys, copper, brass, bronze, and plastics.
In addition to its high-performance capabilities, the TM-3.2W-0600L end mill offers a regrinding and recoating service. This ensures that the tool can maintain its original performance levels even after multiple uses. Furthermore, upon request, it can be coated with different types of coatings to suit specific machining needs.
For further information on processing parameters and the technical data sheet, please reach out via email.
Specifications Table:
| Attribute | Details |
|---|---|
| Product Name | TM-3.2W-0600L Carbide Helical End Mill |
| Diameter | 6 mm |
| Cutting Edges | 2 |
| Center Cutting | Yes |
| Shank Type | Cylindrical |
| Standard | DIN 6535 HB |
| Coating | AlTiSiN |
| Suitable Materials | Non-alloy steels, high-alloy steels, stainless steels, cast iron, gray iron, malleable cast iron, aluminum, alloys, copper, brass, bronze, plastics |
| Services Offered | Regrinding and recoating |
| Custom Coatings | Available upon request |
- Brand:
- TADAAH
- Work material (ISO):
- High-alloy steels, Stainless steels, Unalloyed steels, Aluminium, Alloys, Copper, Brass, Bronze, Cast iron, Grey cast iron, Malleable cast iron, Plastic materials
- Cutting Material:
- HM coated AlTiSiN
- Typology:
- Solid carbide Z=2
- Shank Type:
- Cylindrical DIN 6535 HB

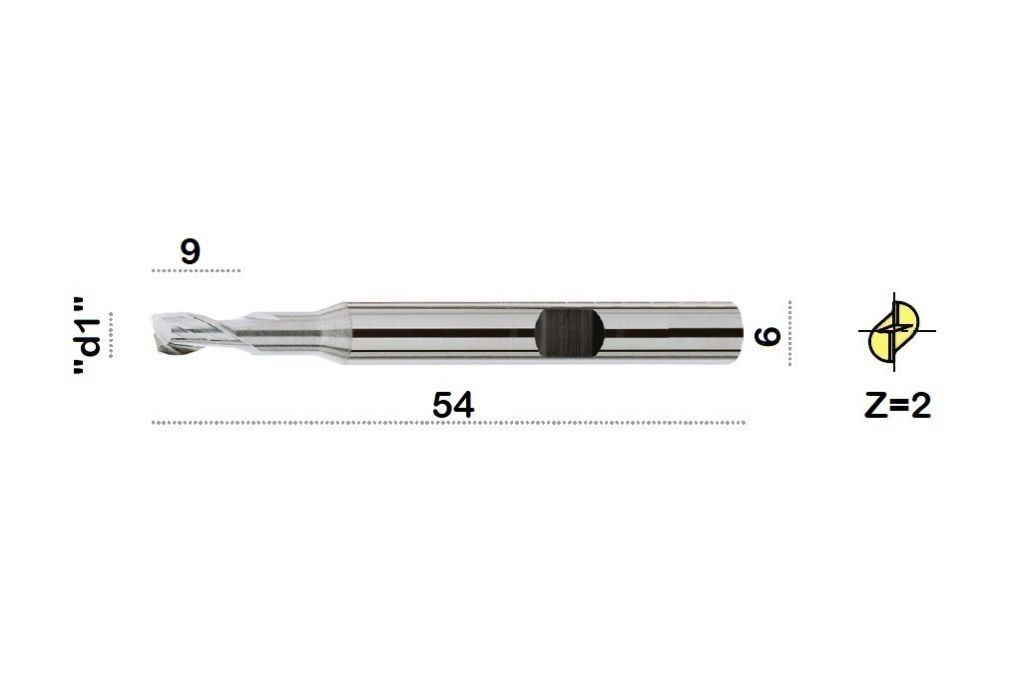

- Diameter "d1" mm:
- 6
- Diameter "D":
- 6mm
- Lengt "L":
- 54 mm
- Length "L1":
- 9mm
