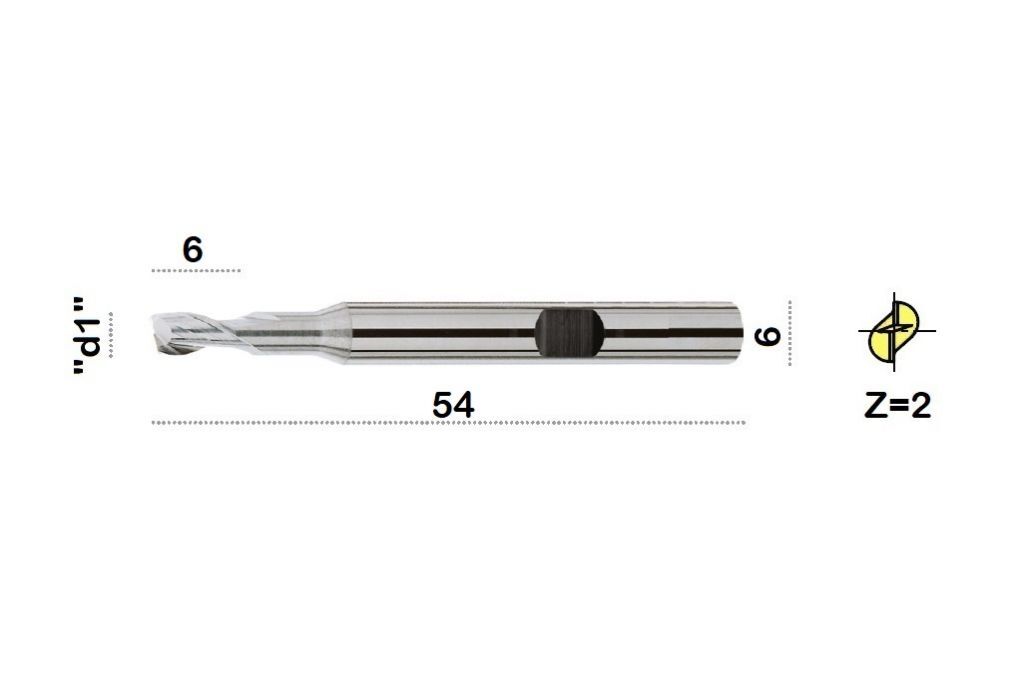

TM-3.2W-0450C Carbide helical end mill Ø4.5 with two cutting edges, center cutting, with cylindrical shank DIN 6535 HB, coated with TiCN-B
Fresa in metallo duro rivestita in TiCN-B per la lavorazione e la fresatura di Acciai non legati, Acciai alto legati, acciai inossidabili, Ghisa, Ghisa grigia, Ghisa malleabile, Alluminio, Leghe, Rame, Ottone, Bronzo e Materie plastiche.
Si esegue il servizio di riaffilatura e rivestimento delle frese, mantenendo le prestazioni del prodotto nuovo.
Su richiesta può anche essere rivestita con diversi rivestimenti.
Parametri di lavorazione e scheda tecnica fornibili tramite:
E-mail cliccando qui
The TM-3.2W-0450C is a carbide helical end mill with a diameter of 4.5 mm, designed with two cutting edges and featuring a center-cutting profile. It is equipped with a cylindrical shank that meets the DIN 6535 HB standard. This end mill is coated with a TiCN-B coating, enhancing its durability and performance in various machining applications.
This tool is specifically engineered for milling and machining a wide range of materials, including unalloyed steels, high-alloy steels, stainless steels, cast iron, gray cast iron, malleable cast iron, aluminum, alloys, copper, brass, bronze, and plastics. The TiCN-B coating significantly improves wear resistance, allowing the end mill to maintain consistent cutting performance across different material types.
Additionally, we offer a re-sharpening and re-coating service for the end mills, ensuring that they retain the performance levels of a new product even after repeated use. Upon request, the end mills can also be coated with alternative coatings to better suit specific processing requirements.
For processing parameters and detailed technical specifications, please contact us via email by clicking here.
| Feature | Description |
|---|---|
| Type | Carbide Helical End Mill |
| Diameter | 4.5 mm |
| Cutting Edges | 2 |
| Center Cutting | Yes |
| Shank Type | Cylindrical (DIN 6535 HB) |
| Coating | TiCN-B |
| Applications | Unalloyed steels, high-alloy steels, stainless steels, cast iron, aluminum, alloys, copper, brass, bronze, plastics |
| Services Offered | Re-sharpening and re-coating |
- Brand:
- TADAAH
- Work material (ISO):
- High-alloy steels, Stainless steels, Unalloyed steels, Aluminium, Alloys, Copper, Brass, Bronze, Cast iron, Grey cast iron, Malleable cast iron, Plastic materials
- Cutting Material:
- HM coated TiCN-B
- Typology:
- Solid carbide Z=2
- Shank Type:
- Cylindrical DIN 6535 HB
- Diameter "d1" mm:
- 4.5
- Diameter "D":
- 6mm
- Lengt "L":
- 54 mm
- Length "L1":
- 6mm
