TM-3.2W-0350L Carbide helical end mill Ø3.5 with two cutting edges, center cutting, with cylindrical shank DIN 6535 HB, coated with AITiSiN
Fresa in metallo duro rivestita in AlTiSiN per la lavorazione e la fresatura di Acciai non legati, Acciai alto legati, acciai inossidabili, Ghisa, Ghisa grigia, Ghisa malleabile, Alluminio, Leghe, Rame, Ottone, Bronzo e Materie plastiche.
Si esegue il servizio di riaffilatura e rivestimento delle frese, mantenendo le prestazioni del prodotto nuovo.
Su richiesta può anche essere rivestita con diversi rivestimenti.
Parametri di lavorazione e scheda tecnica fornibili tramite:
E-mail cliccando qui
The TM-3.2W-0350L is a high-performance carbide helical end mill designed for precision machining. With a diameter of 3.5 mm, this end mill features two cutting edges and is capable of center cutting, which allows for plunge cutting as well as lateral machining. It has a cylindrical shank conforming to DIN 6535 HB specifications, ensuring compatibility with standard milling machines.
This end mill is coated with a specialized AlTiSiN (Aluminum Titanium Silicon Nitride) finish. This advanced coating enhances the tool's hardness and wear resistance, making it suitable for working with a variety of materials such as unalloyed steels, high-alloy steels, stainless steels, cast iron (including gray and malleable types), aluminum, alloys, copper, brass, bronze, and plastics. The coating not only increases the tool's lifespan but also improves cutting performance, even under difficult machining conditions.
In addition to its robust construction, the TM-3.2W-0350L end mill can be reground and recoated, maintaining the performance characteristics of a new product. This reconditioning service extends the tool's usability while retaining its performance standards.
Upon request, the end mill can also be coated with different finishes to suit specific machining requirements or preferences.
For detailed cutting parameters and technical specifications, please contact us via email by clicking the provided link.
| Specification | Details |
|---|---|
| Type | Carbide Helical End Mill |
| Diameter | 3.5 mm |
| Number of Cutting Edges | 2 |
| Cutting Type | Center Cutting |
| Shank Type | Cylindrical (DIN 6535 HB) |
| Coating | AlTiSiN |
| Compatible Materials | Unalloyed Steels, High-Alloy Steels, Stainless Steels, Cast Iron, Aluminum, Alloys, Copper, Brass, Bronze, and Plastics |
| Regrinding and Recoating Services | Available |
| Custom Coating Options | Available upon request |
- Brand:
- TADAAH
- Work material (ISO):
- High-alloy steels, Stainless steels, Unalloyed steels, Aluminium, Alloys, Copper, Brass, Bronze, Cast iron, Grey cast iron, Malleable cast iron, Plastic materials
- Cutting Material:
- HM coated AlTiSiN
- Typology:
- Solid carbide Z=2
- Shank Type:
- Cylindrical DIN 6535 HB

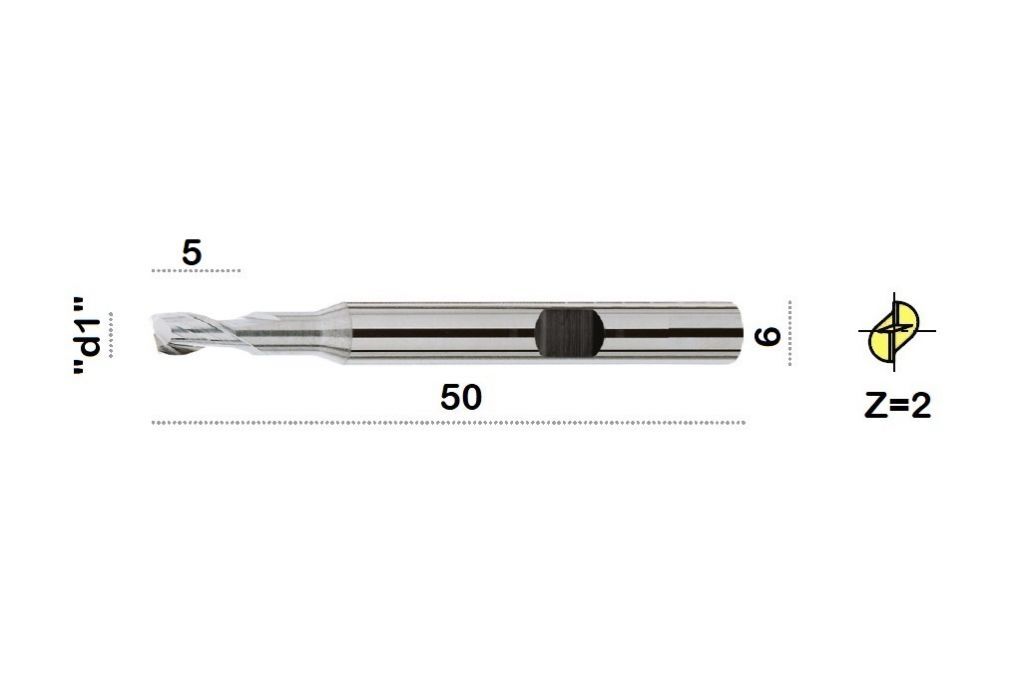

- Diameter "d1" mm:
- 3.5
- Diameter "D":
- 6mm
- Lengt "L":
- 50 mm
- Length "L1":
- 5mm
