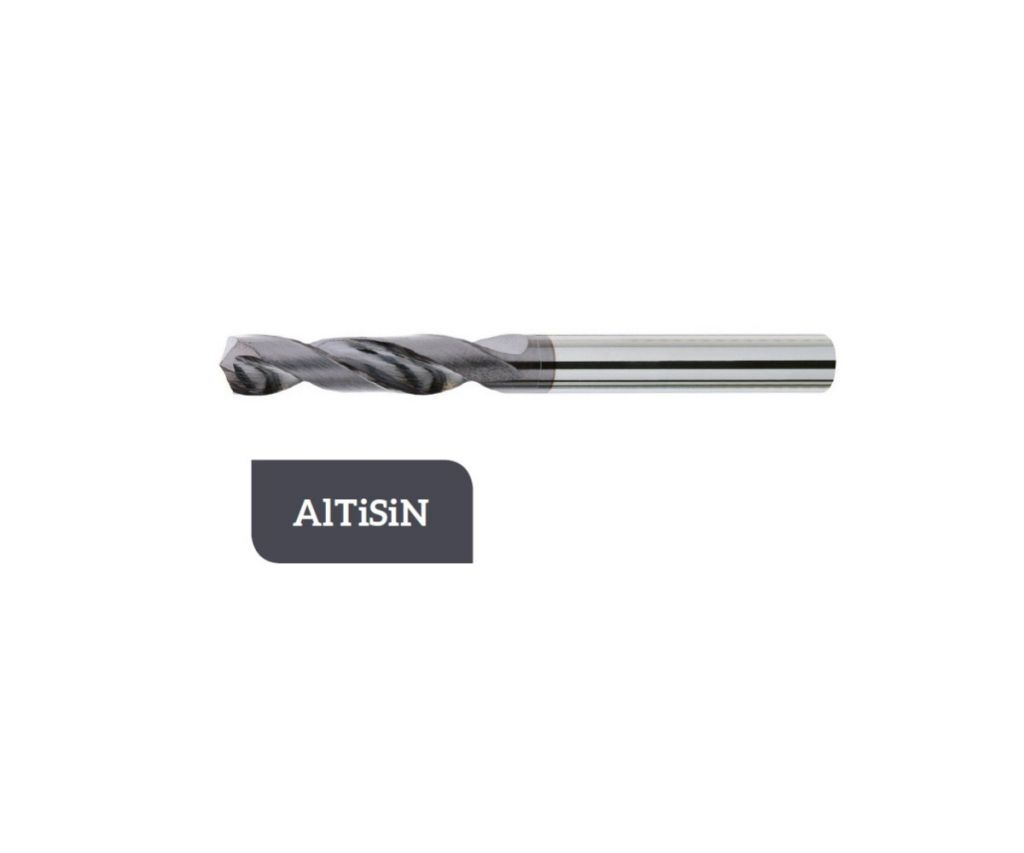

THP-2.900-1010 Carbide helix drill Ø10.1 with 2 cutting edges, high performance, with cylindrical shank, Drilling depth 3xØ, coated in AlTiSiN
Punta in metallo duro rivestita in AlTiSiN per la lavorazione e la foratura di Acciai non legati, Acciai alto legati, Alluminio, Leghe, Rame, Ottone, Bronzo, Acciai inossidabili, Ghisa, Ghisa grigia, Ghisa malleabile e leghe di Cr-Ni.
Si esegue il servizio di riaffilatura e rivestimento delle punte, mantenendo le prestazioni del prodotto nuovo.
Su richiesta può anche essere rivestita con diversi rivestimenti.
Parametri di lavorazione e scheda tecnica fornibili tramite:
E-mail cliccando qui
The THP-2.900-1010 carbide helix drill is a high-performance drilling tool designed for precision and efficiency. With a diameter of 10.1 mm and featuring two cutting edges, this drill is engineered for a wide range of applications. It is particularly effective for drilling into various materials including unalloyed steels, high-alloy steels, aluminum, alloys, copper, brass, bronze, stainless steels, cast iron, gray iron, malleable iron, and chromium-nickel alloys.
The drill is manufactured with a cylindrical shank, making it compatible with standard drilling machines. The design allows for a drilling depth of up to three times the diameter of the drill (3xØ). Additionally, the drill is coated in AlTiSiN (Aluminum Titanium Silicon Nitride), a specialized coating that enhances durability and performance, providing better wear resistance and higher cutting speeds.
For those looking for extended life and performance from their tools, we offer resharpening and recoating services for the drill bits. This service maintains the performance characteristics of a new product, ensuring that users get the most out of their tools. Moreover, upon request, the drill can be coated with different types of coatings to meet specific requirements for various materials and working conditions.
The processing parameters and technical data for the drill are available upon request via email for those interested.
For other diameters and additional options, please refer to the provided links.
Below is a summary of key specifications:
| Specification | Details |
|---|---|
| Type | Carbide Helix Drill |
| Diameter | 10.1 mm |
| Cutting Edges | 2 |
| Drilling Depth | 3 x Ø |
| Coating | AlTiSiN |
| Applications | Unalloyed steels, high-alloy steels, aluminum, copper, brass, bronze, stainless steels, cast iron, gray iron, malleable iron, and chromium-nickel alloys. |
- Brand:
- TADAAH
- Typology:
- Spiral drill 30° Z=2
- Drilling depth:
- 3 x D
- Cutting Material:
- HM coated AlTiSiN
- Work material (ISO):
- High-alloy steels, Stainless steels, Unalloyed steels, Aluminium, Alloys, Copper, Brass, Bronze, Cast iron, Grey cast iron, Malleable cast iron, Cr-Ni alloys
- Diameter "d1" mm:
- 10.1
- Lengt "L":
- 89 mm
- Diameter "D" mm:
- 10.1
- Lengt "L1":
- 43
- Shank Type:
- Cylindrical DIN 6539
