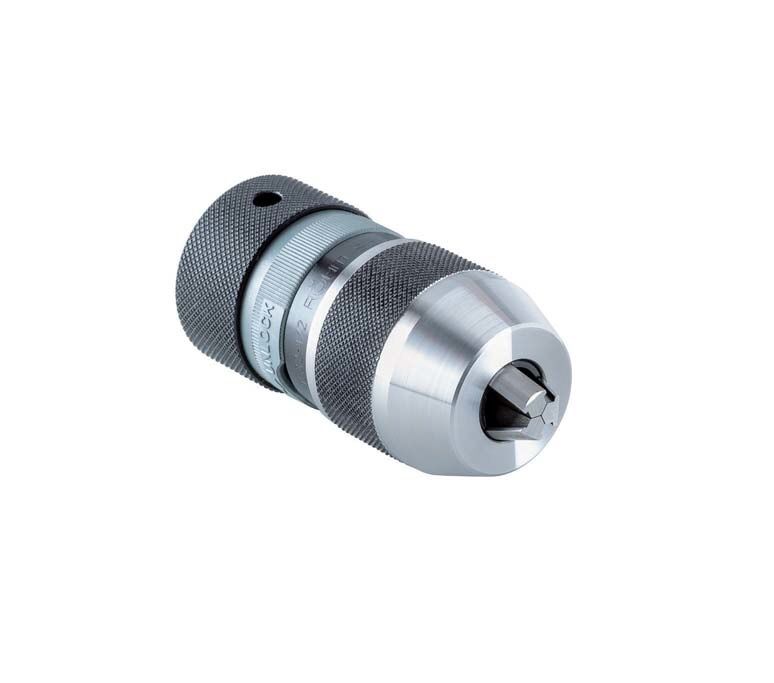

ROEHM 871070 Quick-action drill chucks SPIRO-SK clamping capacity 0-10 mm for machining centers, stationary drills and drilling machines - Conical mount B16 DIN 238/1
(Incl. Tax: €170.19)

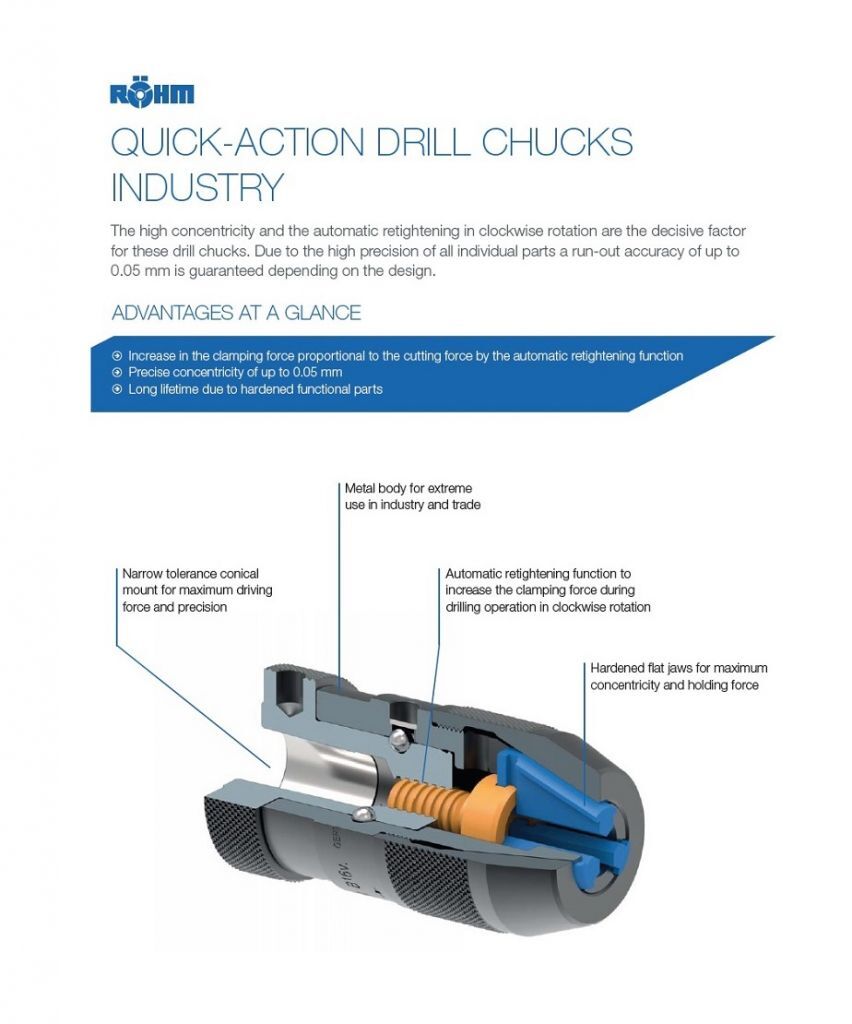

Quick-action metal drill chucks ROHM SPIRO with self-tightening flat jaw drill for industry sector. The high concentricity and the automatic retightening in clockwise rotation are the decisive factor for these drill chucks.Due to their self-locking effect, they are particularly suitable for high-speed drills, boring machines and special drilling units.
APPLICATION:
Especially suitable on machining centers, stationary drills and drilling machines with high precision requirements.
TYPE:
Self-tightening flat jaw drill chuck with metal sleeve and clamping force safety device. Industrial design with maximum precision.
CUSTOMER BENEFITS:
- Precise concentricity of up to 0.07 mm over the whole clamping range
- Increase in the clamping force proportional to the cutting force by automatic retightening function and no releasing in counterclockwise rotation
- Conical mount for maximum driving force and precision
TECHNICAL FEATURES:
- The locking of the pawl prevents the unintentional release in counterclockwise rotation up to a turning moment of 15 Nm
- All functional parts are hardened and ground
- Brand:
- ROHM
- EAN Code:
- 4019208198637
- Typology:
- Drill chucks both rotations (LH-RH)
- Size:
- 0 - 10mm
- Shank Type:

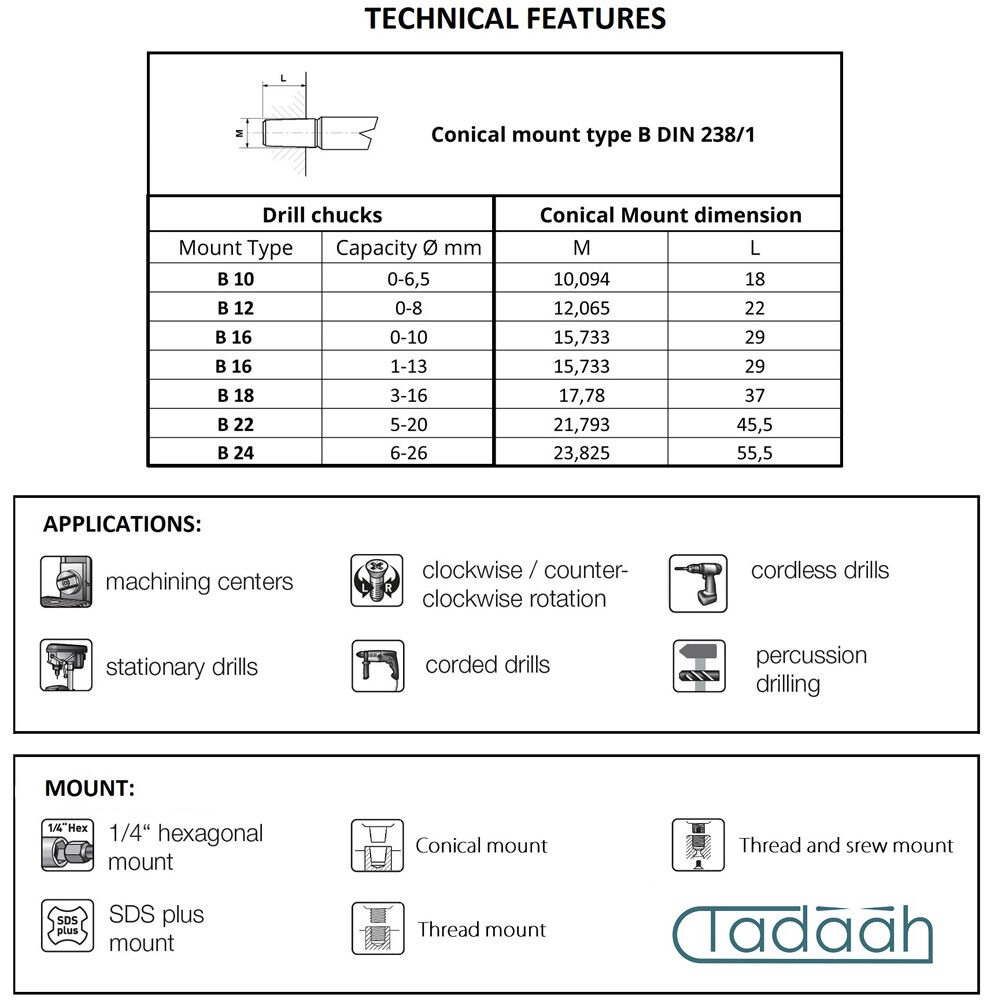

- B16 DIN 238/1
- Concentricity error max (mm):
- 0.07
- Diameter "D":
- 43 mm
- Lengt "L":
- 89,1 mm
