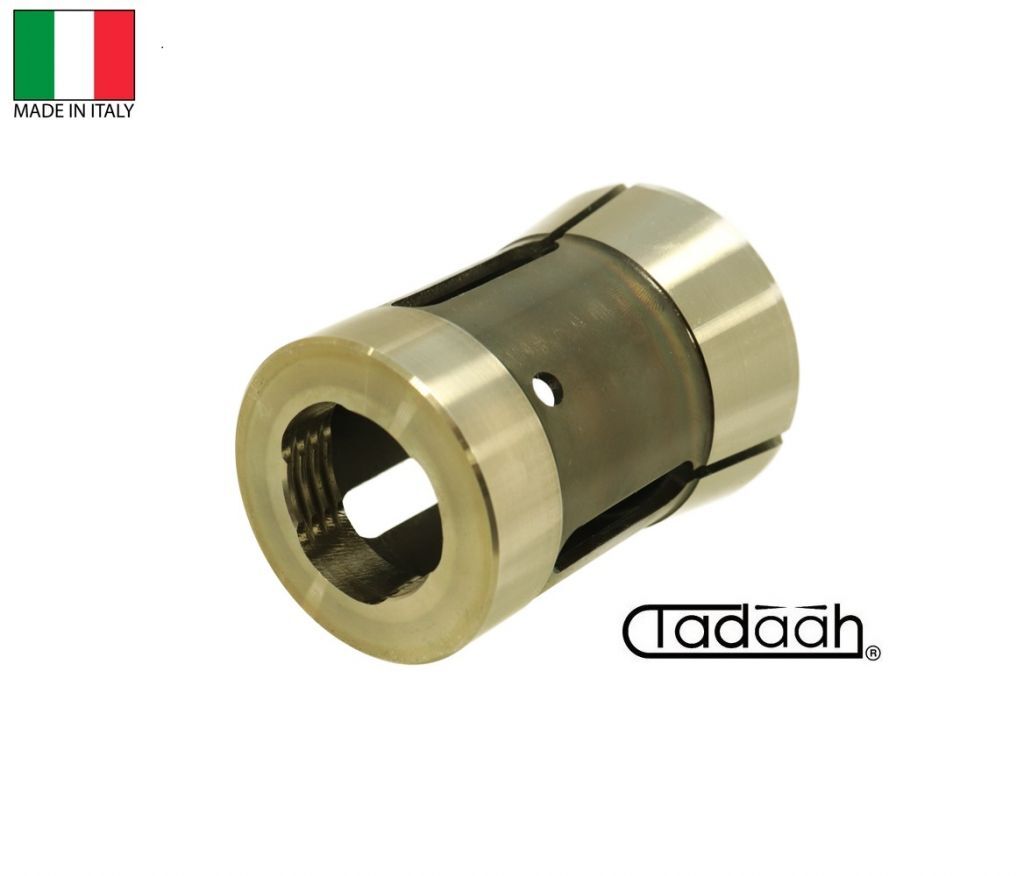

Q0004700 Pick-up collet ROUND spindle SACO suitable for Gildemeister GM42, Mori-Say 6/42 - 8/42, Wickman 1"3/8 - 1"3/4, Schütte AD 40 - SF42, bayonet attack.
(Incl. Tax: €124.44)
Important note for the user: Check whether the pick-up chuck uses collets with a bayonet connection.
The pick-up spindle collets are essential for the Gildemeister GM42, Mori-Say 6/42 - 8/42, Wickman 1"3/8 - 1"3/4, Schütte AD 40 - SF42, bayonet attack multi-spindle automatic lathes, designed to ensure maximum precision, repeatability and reliability in high-speed machining. Made of high-strength hardened steel, they offer long life even in intensive working conditions, maintaining tight tolerances for impeccable finishing results.
These collets are optimized for integration with the hydraulic clamping system, also available special according to machining needs. Their design allows for quick and secure clamping, reducing setup times and increasing production efficiency.
Typical applications include second operation machining on raw or semi-finished parts, often in combination with hydraulic tailstocks or automatic transfer systems. Ideal for high-productivity environments, they help minimize cycle times while maintaining a stable and precise grip.
We offer specialized technical support to help you identify the solution best suited to your production needs.
- Brand:
- GILDEMEISTER - DMG MORI, MORI-SAY, WICKMAN
- Application:
- Round
- Typology:
- Bayonet
- Machine Type:
- AD40, GM42, SF42, 1"3/4, 1"3/8, 6/42, 8/42

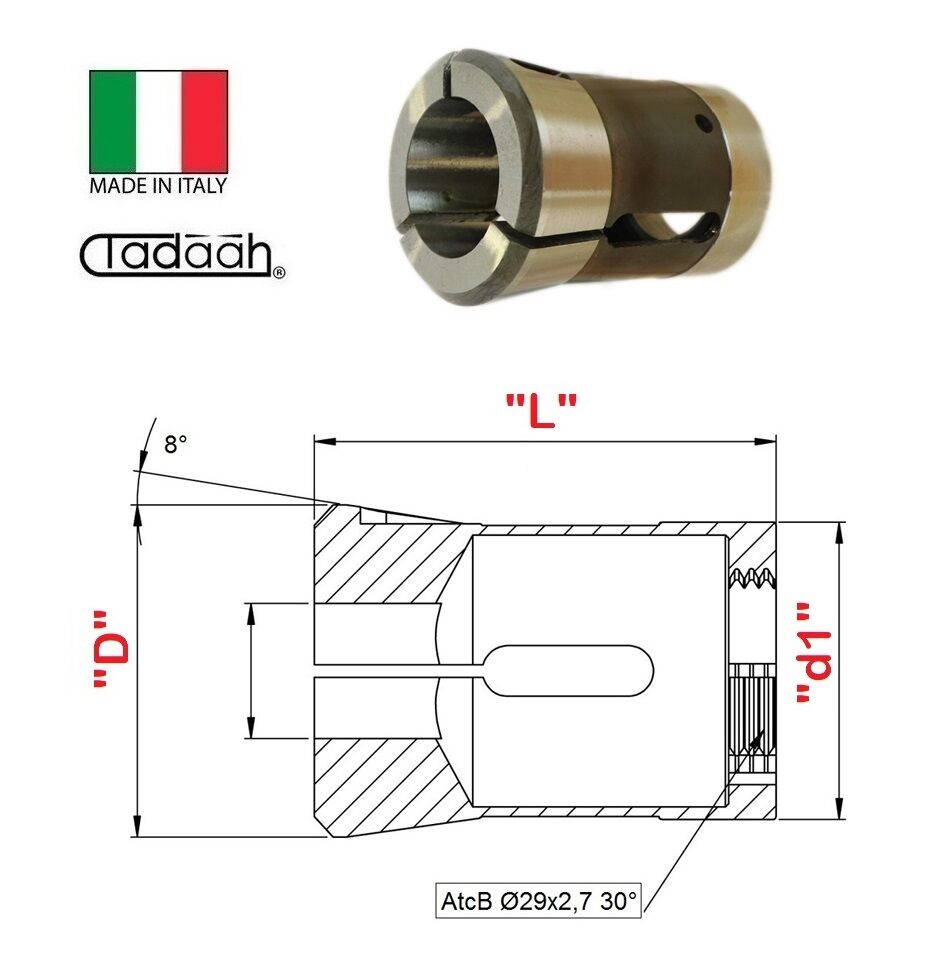

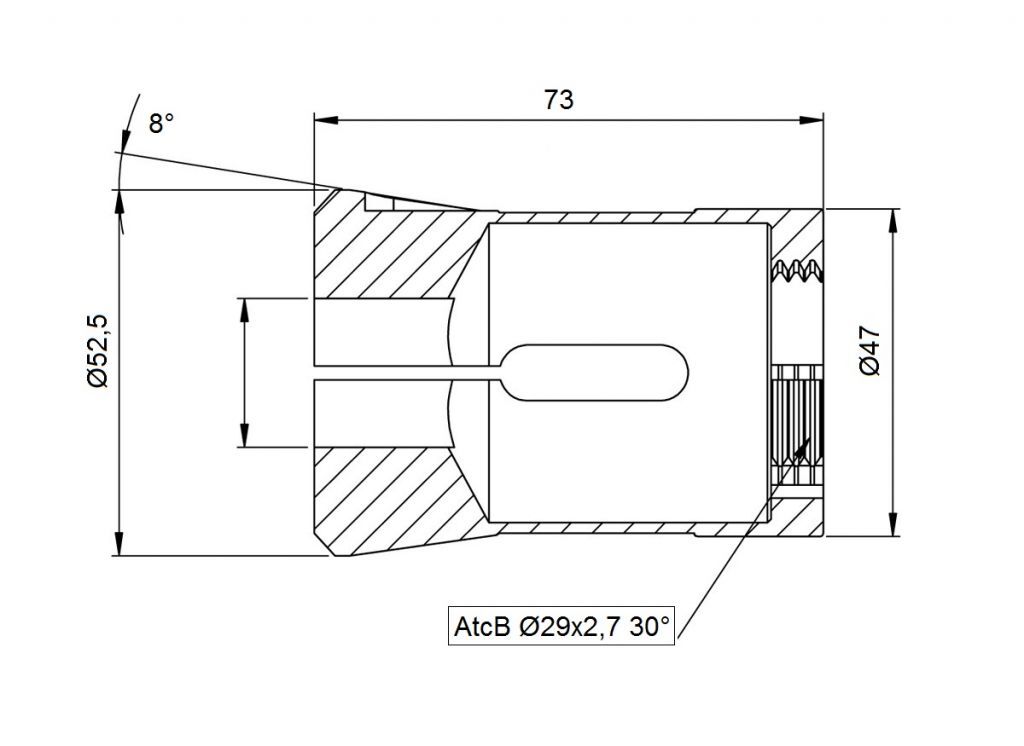

- Diameter "d1" mm:
- 47
- Dimension of thread :
- AtcBØ29x2.7-30°
- Diameter "D" mm:
- 52.5
- Lengt "L":
- 73mm
- Angle "C":
- 8
- Code:
- Q0004700
