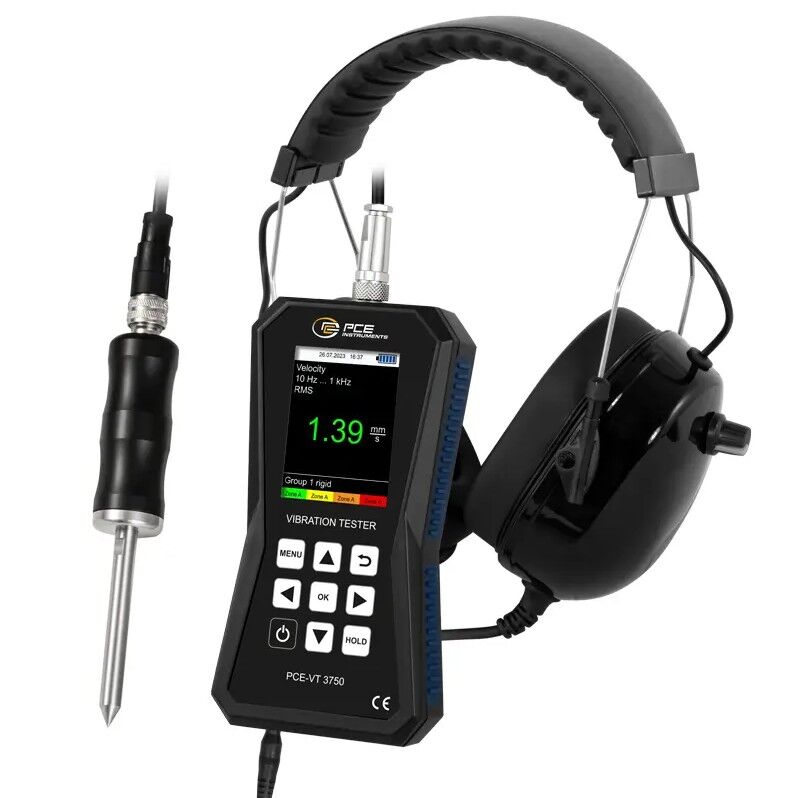

PCE Instruments PCE-VT 3750S Vibration accelerometer with ISO 10816-3 rating, HOLD function, peak, color graphical display, and rapid fault detection on plant and machinery
(Incl. Tax: €1,360.79)
The accelerometer enables the monitoring of vibrations on machinery and systems, detecting acceleration, velocity, and displacement. The instrument performs an automatic assessment according to ISO 10816-3, providing real-time alerts for imbalance or bearing wear. The color graphic display intuitively shows the measured data, with multilingual support. The HOLD/peak function, included headphones, and complete kit make the analysis quick and reliable even in complex environments.
An accelerometer is a tool for monitoring vibrations in rotating machinery, industrial systems and mechanical components. Used in predictive maintenance, it quickly detects acceleration, velocity and displacement, showing the data on an intuitive color graphic display.
Technical specifications:
| Measuring range | Acceleration |
| 0.0 - 399.9 m/s² / 0.0 - 15744 in/s² | |
| Resolution | 0.1 m/s² / 3.94 in/s² |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz - 10 kHz 1 kHz - 10 kHz |
| Measuring range | Velocity |
| 0.00 - 399.9 mm/s / 0.00 - 15.74 in/s | |
| Resolution | 0.1 mm/s / 0.0039 in/s |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz - 1 kHz |
| Measuring range | Rotational Speed |
| 600 - 50000 RPM | |
| FFT acceleration | 10 Hz - 8 kHz |
| FFT velocity | 10 Hz - 1 kHz |
| Accuracy @ 160 Hz | ± 2% |
| Number of FFT lines | 2048 |
| Route measurement | 100 routes each with 100 machines each with 100 measuring points with 1000 measured values each |
| Measuring range | Displacement |
| 0.000 - 3.9 mm / 0.000 - 0.154 in | |
| Resolution | 1 µm / 39.4 µin |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz - 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak |
| Crest factor | |
| Manual memory | 99 folders with 50 measured values each |
| Data logger | Various start/stop triggers Measurement interval between 1 s - 12 h 50 memory locations with 43200 measured values each |
| Units | can be switched to metric / imperial |
| Display | 2.8" LC display |
| Menu languages | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese |
| Power supply | internal: LiPo battery (3.7 V, 2500 mAh) external: USB 5 VDC, 500 mA |
| Headphone connection | 3.5 mm jack plug |
| Operating time | ca. 15 - 20 h (depending on display brightness) |
| Operating and storage conditions | temperature: -20 - +65 °C / -4 - 149 °F humidity: 10% RH - 95% RH, non-condensing |
| Protection class | IP52 |
| Dimensions | 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3" |
| Weight | 239 g / 8.4 oz |
| Technical Data Vibration Sensor | |
| Resonance frequency | 24 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature | -55 °C - +150 °C / -67 °F - 302 °F |
| Housing material | stainless steel |
| Mounting thread | ¼ - 28“ |
| Dimensions | Ø 17 x 46 mm / 0.67 x 1.8" |
| Weight (without cable) | 52 g / 1.8 oz |

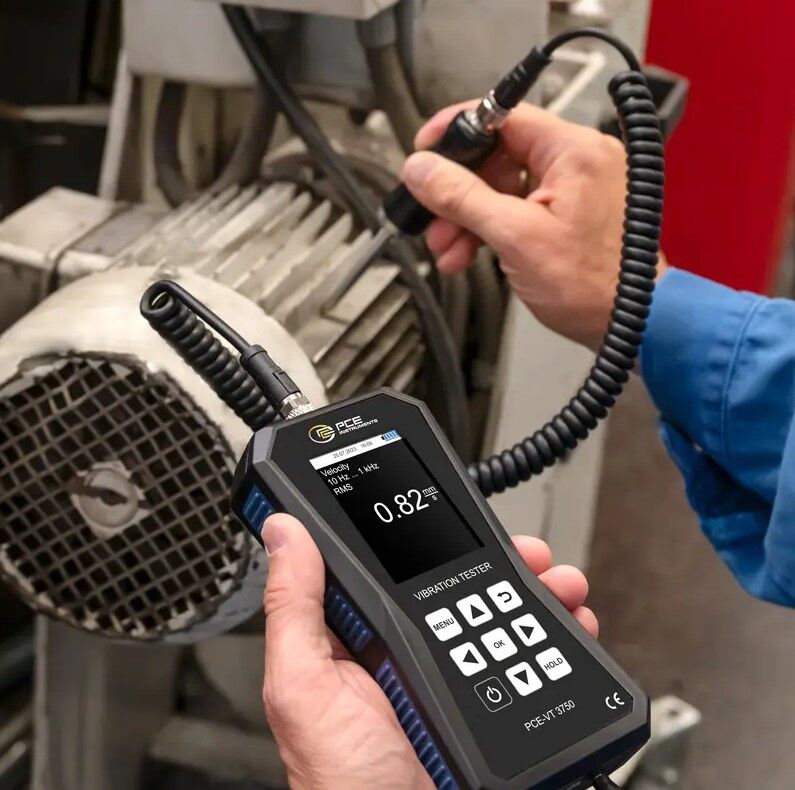

The sensor, connected via spiral cable and mounted with a magnet, captures vibrations to diagnose mechanical imbalance and bearing faults. Thanks to automatic ISO 10816-3 evaluation, the device processes the measured parameters and immediately displays a pass or fail result. The hold function simplifies peak value reading.
The multilingual system and included accessories make it ideal for workshops, plants and technical departments requiring precision, reliability and instant condition analysis.
Features:
- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
-The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function
- incl. headset

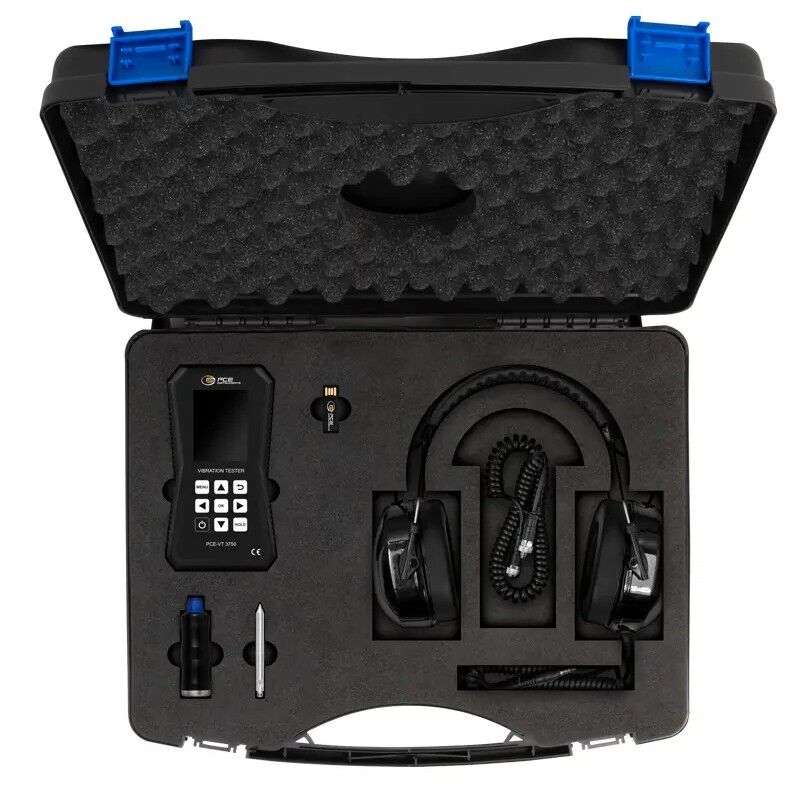

Delivery scope:
1 x Accelerometer PCE-VT 3750S

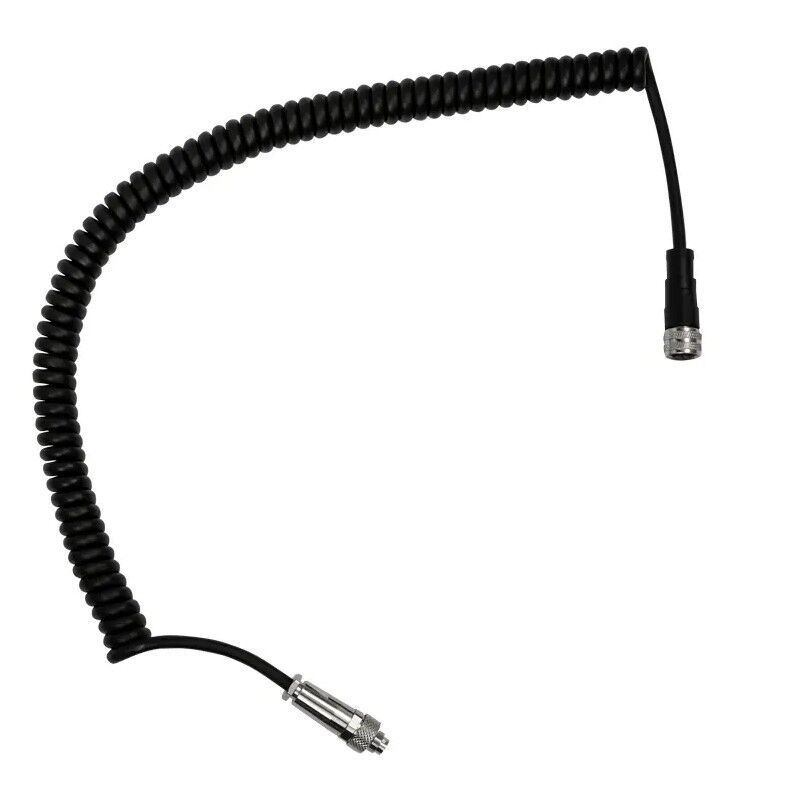

1 x Sensor with spiral cable PCE-VT 3xxx SENSOR
1 x Needle sensor PCE-VT NP
1 x Handgrip PCE-VT 3xxx HANDLE
3 x 1.5 V AA batteries
1 x Quickstart guide
1 x Case
1 x headset
