PCE Instruments PCE-VE 1500-22190 Borescope with 4-way head, viewing angle 120°, camera diameter 2.2mm, probe length 1m
(Incl. Tax: €27,484.34)
The PCE Instruments PCE-VE 1500-22190 is a versatile boroscope equipped with a four-directional camera head, allowing for enhanced maneuverability and viewing angles. It features a 120° field of view, a 2.2 mm camera diameter, and a 1-meter probe length, making it ideal for inspecting hard-to-reach areas. This tool is suitable for various applications, including automotive, HVAC, and other industrial inspections.

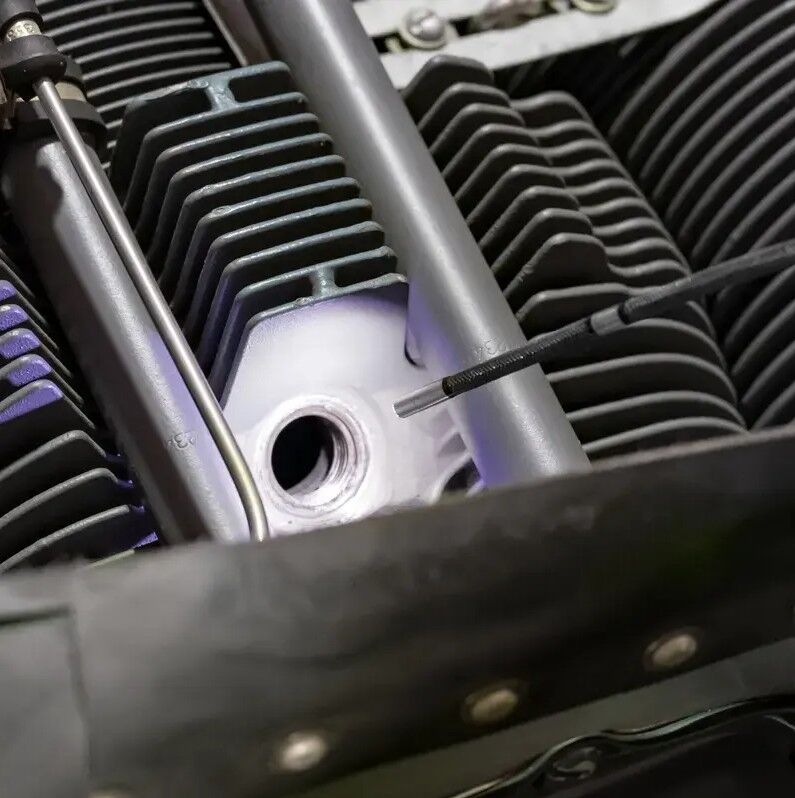

This advanced inspection system features a motorized 4-directional camera head with 190° articulation range and 120° field of view. The ultra-slim 2.2mm diameter titanium-alloy camera probe, protected by a braided tungsten sheath, accesses confined spaces like engine components, firearm barrels, and inspection ports while maintaining exceptional durability.

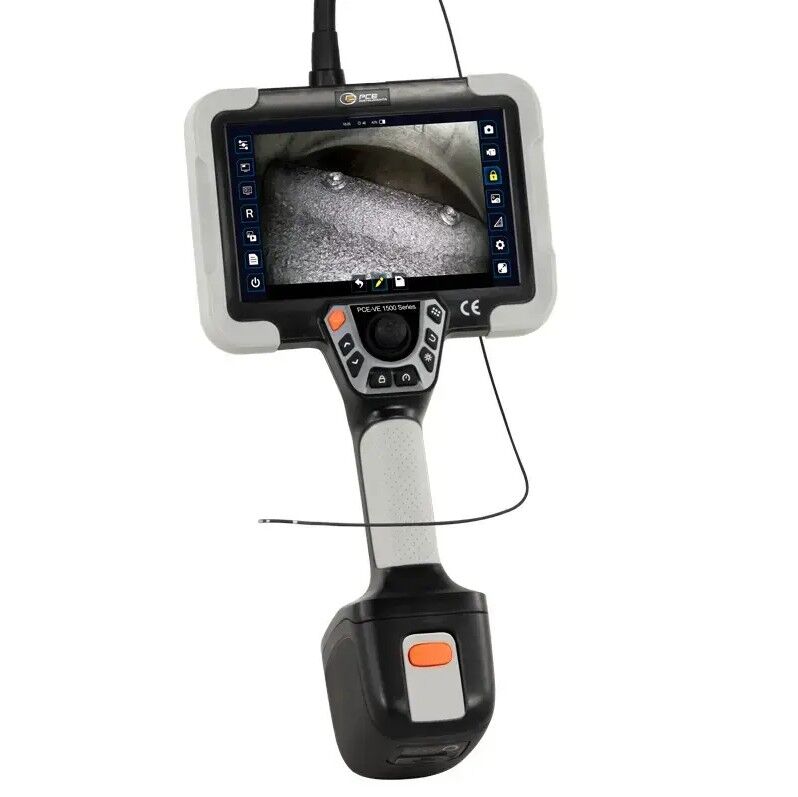

The plug-and-play system is intuitively controlled via 7" touchscreen (1920x1200 resolution) with picture-in-picture functionality for comparative analysis. Five adjustable brightness levels ensure optimal visibility, while HDMI output enables real-time image projection on external displays.
Technical specifications:
| Diameter | Ø2.2mm / 0.08" |
| Cable length | 1 m / 3.2 ft |
| Camera direction | 90° |
| Resolution | 160,000 pixels |
| Focusing range | 5 - 50 mm / 0.19 - 1.96" |
| Further specifications | |
| Material camera head | titanium alloy |
| Material camera hose | braided tungsten |
| Material camera lens | glass |
| Field of view | 120° |
| Illuminance | 50,000 lux |
| Bending direction | 360° (4-way camera head) |
| Bending angle | 190° |
| Display | 7" LCD touchscreen |
| Display resolution | 1920 x 1200 pixels |
| Image format | JPG |
| Video format | MP4 |
| Image resolution | 1280 x 720 pixels |
| Video resolution | 1280 x 720 pixels |
| Digital magnification | 8 times |
| Memory (internal) | 16 GB |
| Memory (external) | expandable up to 128 GB for ca. 285,000 pictures or 1500 minutes of video recording |
| Interface | Mini HDMI, USB-A, USB-C (only for data transfer) audio interface, WiFi |
| Power consumption (endoscope) | 10 W |
| Operating time | >3 hours |
| Battery | 7.4 V (4 x 18650), 6400 mAh, removable |
| Battery (charging) | 12 VDC, 3 A |
| Mains adapter | primary: 100 - 240 VAC 50/60 Hz, 1.5 A secondary: USB-C (PD) 65 W maximum 5 VDC, 3 A 9 VDC, 3 A 5 VDC, 3 A 9 VDC, 3 A 12 VDC, 3 A 15 VDC, 3 A 20 VDC, 3.25 A PPS1: 3.6 - 11 VDC, 3 A PPS2: 3.6 - 20 VDC, 3 A |
| Operating conditions (hand-held device) | 5 - 50 °C / 41 - 122 °F, <92 % RH, non-condensing |
| Operating conditions (endoscope cable) | 5 - 80 °C / 41 - 176 °F, <92 % RH, non-condensing |
| Storage conditions | 5 - 63 °C / 41 - 145 °F, <92 % RH, non-condensing |
| Dimensions | 366 x 194 x 137 mm / 14.4 x 7.6 x 5.3" |
| Weight | handset weight: 1017 g / 35.8 oz endoscope cable with electric motor: ca. 600 g / 21.1 oz battery 550 g / 19.4 oz |
The unit records images and videos to SD cards (capacity: 285,000 photos or 25 hours of footage) for technical documentation. The 6,400 mAh lithium-ion battery provides minimum 3 hours runtime, with 5-level status indication and hot-swappable capability. USB-C Power Delivery allows continuous operation during charging.

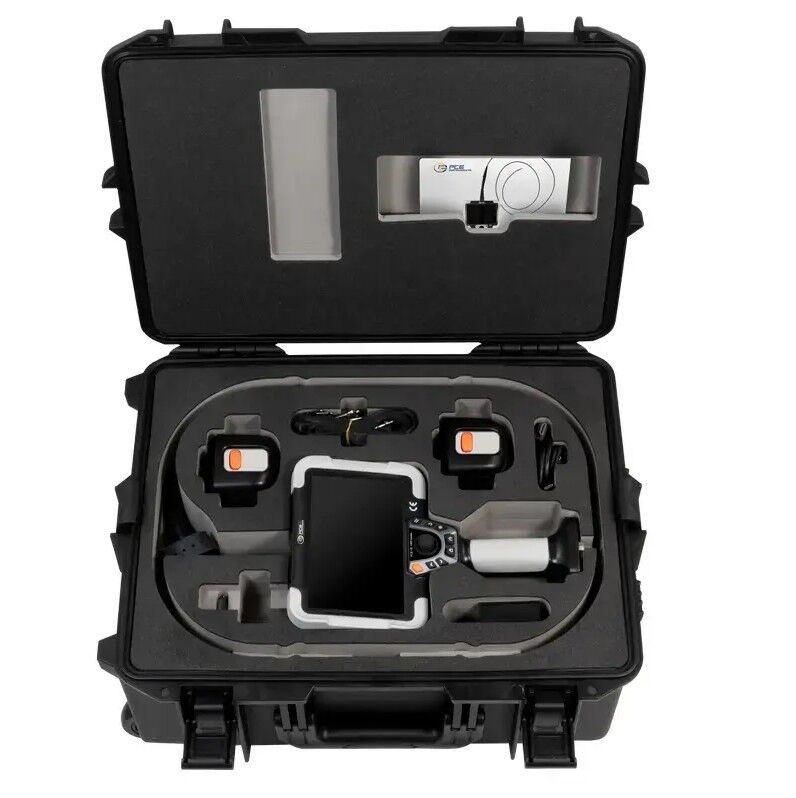

A rugged wheeled carrying case with quadruple-latch closure and rubberized padding provides waterproof protection during transport.

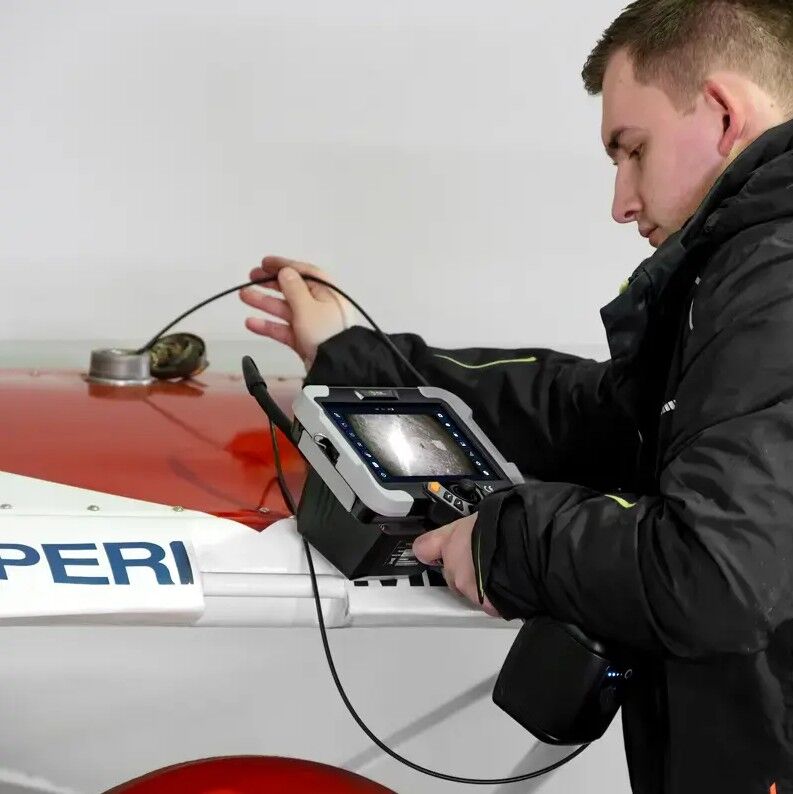

Ideal for engineering, quality control, and technical inspections, this borescope combines mechanical precision with operational versatility for diagnosing welds, wear, or damage in demanding industrial environments.
Features:
- Length of endoscope cable approx. 1 m,
- Camera diameter 2.2 mm
- Camera orientation lateral
- Image resolution 160,000 pixels
- Angle of view of the camera 120 °
- Focus of camera at distance 5 - 50 mm
- Bending radius of the camera head at 90° 23 mm
Delivery scope:
1 x Videoscope PCE-VE 1500-22190
2 x 7.4V 6400mAh battery
1 x 64GB memory card
1 x USB-C cable
1 x HDMI to Mini HDMI cable
1 x SD card reader
1 x Carrying case
1 x Instruction manual
