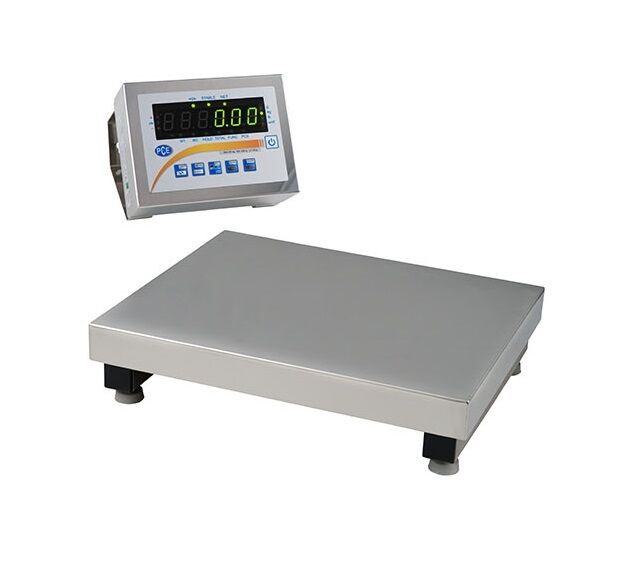

PCE Instruments PCE-SD 30SST C Water-resistant stainless steel precision scale, ideal for areas with high humidity and hygienic requirements

PCE Instruments PCE-SD 30SST C Water-resistant stainless steel precision scale, ideal for areas with high humidity and hygienic requirements

In stock
SKU
PCE-SD-30SST-C
€1,382.15
(Incl. Tax: €1,686.22)

The water resistant scale PCE-SD SST featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the water resistant scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the water resistant scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the water resistant scale on ships at sea. Standard functions of the water resistant scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc.

Due to its high IP protection the water resistant scale does not feature any interface. But optionally interfaces can be purchased for the water resistant scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.

- Calibrated according to calibration class MIII
- Completely made of stainless steel IP67-IP65
- Unit Counter
- Summation function
- MAX. / MIN. indication
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / Net display
- Tare storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contactors
- Analogue output optional 4-20 mA / 0-10 V

SPECIFICATION:

Weighing range 30 kg
Resolution 10 g
Calibration value 10 g
Min.* 200 g
Platform size 400 x 500 mm
Calibration Class M III (is delivered calibrated)
Unit Counter Function counting by reference values
Tare function multiple taring covering the whole measurement range
Interface optional bi-directional RS-232, USB, LAN datasheet on interface as well as analogue output 4-20 mA, 0-10, OC
Display LED with 20 mm digit height
Cable Length from platform to display
Power Source ~230V, 50Hz, 8VA (schuko plug)
Protection Class IP 67 cell / IP65 display
Operational Temperature -10 °C ... +40 °C
Weight platform 400 x 500 x 120 mm / 17 kg
platform 600 x 500 x 135 mm / 25 kg

* The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.

Delivery Scope:
1 x Water Resistant Scale PCE-SD 30SST C
1 x display device
1 x instruction manual
EAN Code:
4250348712486
Typology:
Water-resistant
Brand:
PCE INSTRUMENTS
Capacity :
30 Kg
Resolution (mm):
10gr
