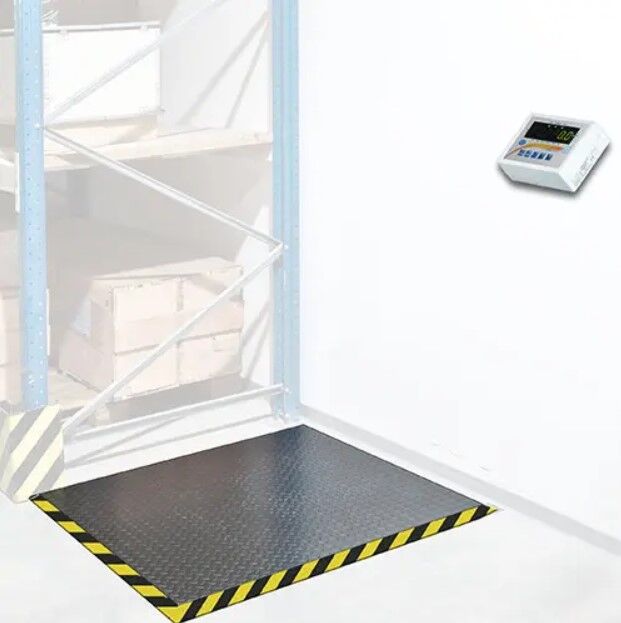

PCE Instruments PCE-SD 1500F Recessed floor scale up to 1500 kg with 0.5 kg resolution, IP 67 load cells, piece counting, and RS-232 interface, removable structure and platform, optional USB and LAN
In stock
SKU
PCE-SD-1500F
€4,680.15
(Incl. Tax: €5,709.78)
(Incl. Tax: €5,709.78)
The recessed scale handles loads up to 1,500 kg with a resolution of 0.5 kg and IP 67 load cells. Constructed from painted steel, it is designed for installation on level floors and includes a mounting structure. The removable weighing platform facilitates installation, while the 5 m display cable allows for easy setup without recalibration. The display has an IP 54 protection rating and can be mounted on a bench, wall, or optional tripod. Its functions include piece counting, comparative weighing, and tolerance determination. Also available with RS-232, USB, LAN interfaces, and analog options like 4-20 mA and 0-10 V. The scale can be customized with a frame for floor recessing and features maintenance-free components.
Technical specifications:
| Model | PCE-SD 1500 F |
| Weighing range | 1,500 kg |
| Resolution | 0.5 kg |
| Min.* | 10 kg |
| Dimensions | 1500 x 1500 mm |
| Weight | 210 kg |
| Calibration | calibratable according to class M III (delivered calibrated) |
| Tare | multiple tare over the full weighing area |
| Settling time | <4 s |
| Display | LED with 20 mm digit height |
| Cable length | plugged in 5 m |
| Weighing units | kg / piece / lb |
| Interface | bi-directional RS-232 optional USB, LAN, 4-20 mA, 0-10V, OC |
| Weighing plate | fluted painted steel (unscrewable) |
| Operating temperature | -10 °C - +40 °C / 14 - 104 °F |
| Power supply | ~230V 50Hz 8VA (safety plug) |
| Protection | cell IP 67 / display IP54 |
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor installation scale also indicates smaller weights, but these may not be used in legal traffic.
The recessed scale is an advanced tool designed for floor-level installation, ideal for handling loads up to 1,500 kg with precise resolution of 0.5 kg. Constructed from painted steel and also available in stainless steel, the scale features IP 67 load cells, ensuring resistance to dust and water, making it suitable for industrial environments and harsh working conditions.
The removable weighing platform facilitates installation and maintenance, ensuring smooth operation and easy cleaning. Its robust construction and adaptable dimensions are designed for intensive use and various weighing needs.
Advanced features include piece counting, optimizing inventory management and production operations, and comparative weighing in percentage, useful for comparing and analyzing relative weights. The scale also offers summation for accumulating weights of multiple loads and mixture weighing, ideal for preparing compounds and recipes.
The memorizable tare value and average weight determination enhance precision and efficiency in repetitive weighing tasks. The adjustable filter allows customization of the scale's response time, particularly useful for weighing unstable materials or animals, ensuring accurate results even in varying work conditions.
For increased flexibility and integration, the scale includes a bidirectional RS-232 interface, facilitating integration with existing IT systems, and offers additional connection options such as USB, LAN, and analog outputs like 4-20 mA or 0-10 V. These connectivity options enable versatile data management and easy communication with other devices and monitoring systems.
The display, with an IP 54 protection rating, can be mounted on a bench or wall, and the gross/net button adds convenience for data visualization. Additionally, the scale can be equipped with an optional tripod for greater placement flexibility.
This recessed scale represents a highly functional and versatile solution for industrial, logistical, and quality control applications. Its robustness, precision, and adaptability to various usage conditions make it ideal for those seeking a professional and durable tool for heavy and bulky load weighing. The combination of advanced technical features and numerous customization options enhances productivity and optimizes workflows, ensuring consistent and reliable performance over time.
Caratteristichs:
- Piece counting function
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Average weight determination
- Formulation mixed weighing
- Adjustable bidirectional RS-232 interface
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Average weight determination
- Formulation mixed weighing
- Adjustable bidirectional RS-232 interface
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA
Delivery scope:
1 x Weighbridge for installation
1 x Display
4 x Floor fixing plates
1 x User manual
1 x Display
4 x Floor fixing plates
1 x User manual
- EAN Code:
- 4250348712301
- Typology:
- Floor
- Brand:
- PCE INSTRUMENTS
- Capacity :
- 1.5 t
- Resolution (mm):
- 500gr
