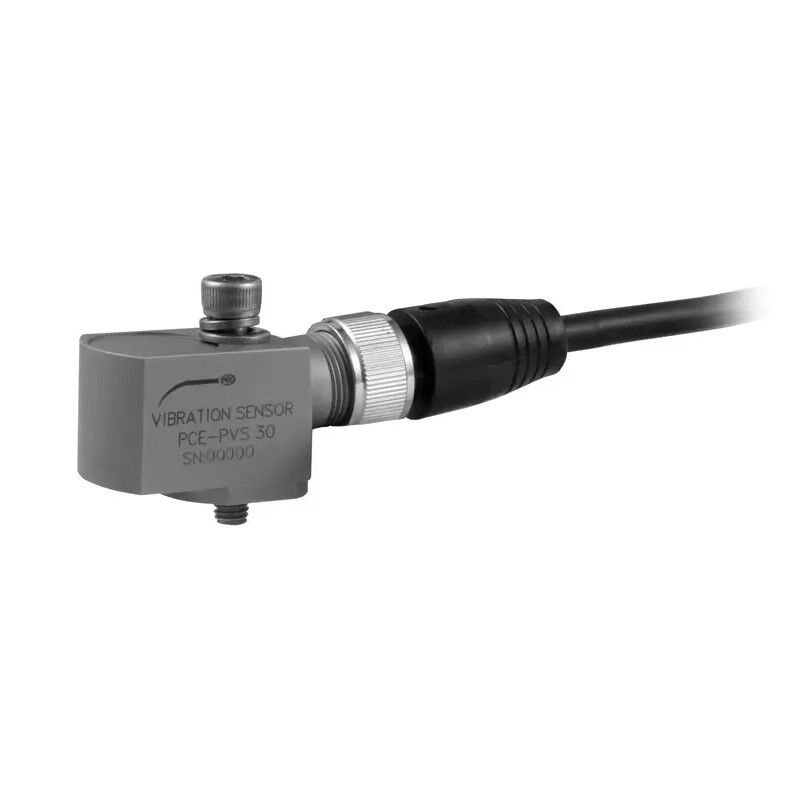

PCE Instruments PCE-PVS 30 Vibration transducer for continuous monitoring, 4-20 mA output, range 3-1500 Hz, robust structure, and MIL-C-5015 connection
In stock
SKU
PCE-PVS-30
€529.52
(Incl. Tax: €646.01)
(Incl. Tax: €646.01)
The vibration transducer is a device designed for continuous monitoring of vibration speed. Available in various configurations, this instrument measures the vibration speed with a range of ± 12.7 mm/s and frequencies between 3 and 1500 Hz. The measured value is output as an analog 4-20 mA process signal. The sensor connects to a process controller via a MIL-C-5015 connector, mounted horizontally. The power supply for the transducer operates at a voltage of 12-24V DC. The robust structure ensures reliability in harsh operating conditions, making it suitable for various industrial applications.
Technical specifications:
| Measuring range | ± 12.7 mm / s |
| frequency range | 3 - 1500 Hz |
| output | 2 conductors 4 - 20 mA |
| sensitivity | <5% |
| Shock limit | ± 1000 g |
| Power supply | 12 - 24 V DC in current loop |
| Isolation from ground | > 108 ohms |
| Output impedance | <100 ohms |
| design | horizontal connection |
| Electrical connections | Pin A: + 4 - 20 mA |
| Pin B: - 4 - 20 mA | |
| Connection type | 2 pin MIL-C-5015 |
| operating temperatur | -40 - 85 ° C |
| Dimensions | Ø22 x51 |
| Mounting thread | M6 |
The vibration transducer represents a fundamental tool in the field of engineering and industrial maintenance, specifically designed for the monitoring and control of vibration speed in various systems and machinery. This device not only provides continuous and accurate measurements but is also essential for ensuring operational safety and the efficiency of industrial processes.
The main function of the vibration transducer is to detect mechanical oscillations, converting vibratory motion into an electrical signal. Thanks to its 4-20 mA output, it can be easily integrated into existing monitoring and control systems. This makes the transducer a versatile and practical tool for engineers, as it can be connected to various process controllers or data acquisition systems, allowing for an in-depth analysis of operational conditions.
The device operates over a frequency range of 3 to 1500 Hz, making it suitable for a wide array of applications. These include monitoring vibrations in rotating machinery, HVAC systems, and industrial plants where maintaining operational stability is crucial. The ability to measure vibration speed with an accuracy of ± 12.7 mm/s enables operators to promptly identify any anomalies that may compromise system functionality.
A key aspect of the transducer is its MIL-C-5015 connector, which provides a robust and reliable connection, vital in industrial environments where conditions can be challenging. This connector allows for easy installation and a secure connection, ensuring that data is transferred seamlessly without interruptions or losses. Additionally, the transducer is powered by a voltage ranging from 12 to 24V DC, making it suitable for use in environments with variable power supply.
The rugged structure of the transducer is designed to withstand the environmental challenges that may arise in industrial settings, such as intense vibrations, extreme temperatures, and the presence of dust or moisture. This robustness not only ensures a long operational lifespan but also reduces maintenance costs, allowing users to minimize machine downtime and enhance overall productivity.
In terms of applications, the vibration transducer is widely used across various sectors, including mechanical engineering, preventive maintenance, and process monitoring. It is particularly useful for detecting abnormal vibrations during leak tests in gas facilities, as well as for monitoring the operation of air compressors and HVAC systems. This tool is essential for predictive maintenance activities, helping to prevent mechanical failures through careful monitoring of operational conditions.
In conclusion, the vibration transducer stands out as an indispensable tool for engineers and technicians operating in the field of vibration monitoring and industrial maintenance. Its versatility, reliability, and ability to provide accurate real-time data significantly contribute to optimizing machine performance and ensuring the safety of industrial processes. With its easy integration into existing systems and high measurement capabilities, the vibration transducer represents a key element in guaranteeing efficiency and safety in modern industrial operations.
Caratteristichs:
- horizontal or vertical installation
- Process signal output
- MIL-C-5015 connector
- M6 process connection
- different measuring ranges
- robust construction
Delivery scope:
1 x Acceleration Sensor PCE-PVS 30
1 x MIL-C 5015 plug to 5 m cable
1 x instruction manual
- EAN Code:
- 4250348722607
- Typology:
- Vibrometro
- Brand:
- PCE INSTRUMENTS
- Speed:
- ± 12.7 mm/s
