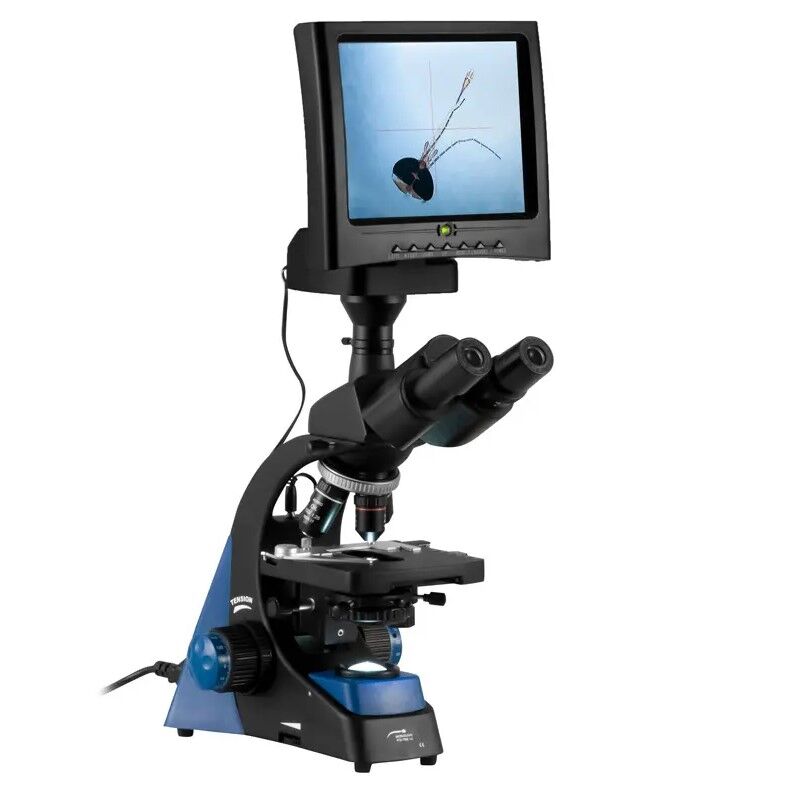

PCE Instruments PCE-PBM 100 Research microscope, ergonomic trinocular, 360° rotating head, LCD display, excellent lighting, 100 magnifications, and easy to use
In stock
SKU
PCE-PBM-100
€1,936.99
(Incl. Tax: €2,363.13)
(Incl. Tax: €2,363.13)
The PCE-PBM 100 microscope is a high-quality tool designed for the recording and monitoring of electrical signals. Equipped with an ergonomic trinocular support, it features a 360° rotating head and a large LCD display (800 x 600 pixels) to facilitate viewing by multiple users. Thanks to the video output, it is possible to transfer images to a projector, making analyses more accessible. With a zoom of up to 100 magnifications and a cross table (125 x 125 mm), the microscope accommodates users with glasses. The diaphragm adjustment and LED brightness ensure optimal illumination. This tool is ideal for educational centers, research and development, and quality control.
Technical specifications:
| Eyepieces | WF 10x wide field eyepieces |
| Head | Trinocular |
| 360° rotatable | |
| 30° angled view | |
| Right diopter adjustment | |
| Interpupillary distance adjustable 55 ... 75 mm | |
| Lenses | 4 |
| Magnification | 4x, 10x, 40x, 100x |
| Numerical aperture | 0.1 mm, 0.25 mm, 0.65 mm, 1.25 mm |
| Focal length | 31.04 mm, 17.13 mm, 4.65 mm, 2.906 mm |
| Working distance | 37.50 mm, 7.316 mm, 0.632 mm, 0198 mm |
| Coverslip | 0.17 mm |
| Total magnification eyepiece + lens | 40, 100, 400, 1000 |
| Tube length | 160 mm |
| Conjugate distance | 195 mm |
| Cross table | 125 x 125 mm |
| Shift | 40 x 60 mm |
| Hub | 14 mm |
| Condenser | |
| Cover | yes |
| Adjustment | yes |
| Filter | yellow, green, blue |
| Lighting | 3.5 V 1 W LED |
| Dimmable | yes |
| Technical Data Camera / Display | |
| Camera | |
| Size | 13" |
| Horizontal resolution | 700 lines |
| Resolution | 976 x 582 pixels |
| LCD Display | |
| Resolution | 800 x 600 pixels |
| Colours | 16777216 |
| Video output highest resolution | 1024 x 768 at 75 Hz |
| Video Format | PAL, NTSC4.43, NTSC3.58, SECAM |
| General Technical Data | |
| Power supply | 230 VAC 50 Hz |
| Environmental conditions | 0 - 40 °C / 85 % RH. max. |
| Dimensions | 550 x 320 x 210 mm |
| Weight | 5100 g |
The PCE-PBM 100 microscope represents a high-quality device designed to meet the needs of analysis and documentation of materials in various contexts, including educational centers, research and development, and quality control. This equipment is ideal for visualizing even extremely small details, allowing multiple users to observe simultaneously thanks to its trinocular structure. The third eyepiece features a large LCD screen (800 x 600 pixels), making sample observation and analysis much more accessible and interactive, particularly useful in educational and research environments.
One of the most distinctive features of the microscope is its 360° rotating head, which allows users to easily adjust the viewing position. This ergonomic design has been studied to ensure a comfortable observation experience, reducing eye strain, especially during long working sessions. The viewing distance adjustment is simple and optimizes focus, facilitating detailed observation of samples of various sizes and shapes.
Using the microscope is a simple and intuitive process. The cross table (125 x 125 mm) supports precise and controlled movements, allowing users to easily position the sample under the objective. Moreover, the LED lighting system not only provides light similar to sunlight, making the illumination ideal for observing samples in varying brightness conditions, but also ensures low energy consumption and a long lifespan, minimizing maintenance needs.
The Abbe condenser with adjustable diaphragm is a fundamental element for optimizing the illumination of the object under analysis, providing precise control over the amount of light hitting the sample. This adjustment enhances contrast and clarity of the image, facilitating the analysis of detailed structures. The diopter adjustments in the right eyepiece ensure a clear and detailed view, allowing even those who wear glasses to use the microscope without difficulty.
The PCE-PBM 100 microscope is extremely versatile and adapts to different fields of application. It is particularly useful in scientific research, where having high-precision tools is essential, and in industrial quality control, where measurement reliability is crucial. Thanks to the video output, users can easily connect the device to a projector, allowing them to present results to a larger audience. This function facilitates collaborative analysis, making research and study activities more interactive and engaging.
With a zoom of up to 100 magnifications, the PCE-PBM 100 microscope allows observation of even the tiniest details, making it an indispensable tool for professionals and students alike. Its ease of use, combined with advanced features, makes it an ideal educational aid for teaching microscopy and materials science. Even inexperienced users can quickly achieve presentable results, thanks to the intuitive design and user-friendly functionalities of the microscope. Ultimately, the PCE-PBM 100 combines innovation and practicality, ensuring high performance and reliability over time, making it an excellent choice for anyone working in the field of microscopy and materials management.
Caratteristichs:
- Abbe condenser with adjustable iris
- Diopter adjustment on the right eyepiece
- Adjustable eye relief
- Trinocular
- With cross table 125 x 125 mm
- 4 lenses up to 100x magnification
- LC Display 800 x 600 pixels
- Video output
Delivery scope:
1 x Microscope PCE-PBM 100
1 x Connection cable
1 x Screen connection cable
3 x Colour filter
1 x LC display with camera
1 x Cinch video cable
1 x Video Cinch-USB converter
1 x Video software
1 x USB extension
1 x Cover hood
1 x User manual
1 x Connection cable
1 x Screen connection cable
3 x Colour filter
1 x LC display with camera
1 x Cinch video cable
1 x Video Cinch-USB converter
1 x Video software
1 x USB extension
1 x Cover hood
1 x User manual
- EAN Code:
- 4250348720023
- Typology:
- Microscope
- Brand:
- PCE INSTRUMENTS
