PCE Instruments PCE-MFM 3800 High-precision radiometer with transverse sensor for direct (DC) and alternating (AC) fields, measurement range 0 to 3500 mT
(Incl. Tax: €1,479.13)

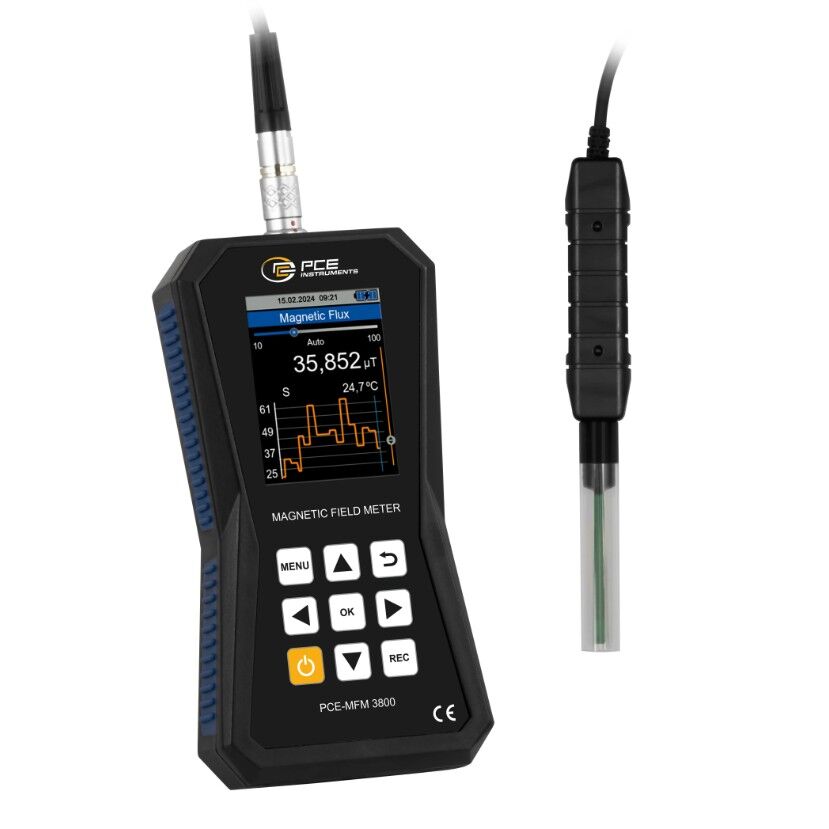

The PCE-MFM 3800 is a high-precision radiometer designed to measure both direct (DC) and alternating (AC) magnetic fields. It features a transverse sensor that allows for measurements in a range from 0 to 3500 mT, making it suitable for various applications in magnetic field analysis. The device is known for its accuracy and reliability, making it an essential tool for professionals working in environments where magnetic field monitoring is critical.
This professional gaussmeter provides an advanced solution for measuring magnetic fields and temperature in industrial and research applications. The device detects both DC and AC magnetic fields with a measurement range from 0 to 3500 mT, offering exceptional 0.001 mT resolution that ensures accuracy even at extremely low field intensities.
The transverse sensor configuration measures magnetic fields perpendicular to the sensor axis, ensuring versatility across measurement applications. For AC fields, the instrument also displays frequency in the 10-50 Hz range, providing complete magnetic signal analysis. Measurement accuracy reaches ±0.5% of reading for DC fields and ±1% for 50 Hz AC fields.
Technical Data:
| AC magnetic field | |
| Measuring range | 0,4 - 3500 mT |
| Resolution | 0,001 mT |
| Accuracy | ±3 % of measured value |
| Frequency range | 10 - 5000 Hz |
| Campo magnetico DC | |
| Measuring range | -3500 - +3500 mT |
| Resolution | 0,001 mT |
| Accuracy | 0 - 100 mT: ± 0,15 mT 100 - 2400 mT: ±1 % of measured value 2400 - 3500 mT: ±3 % of the measured value |
| Temperature | |
| Measuring range | 0 - 80 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0,4 °C |
| Temperature | |
| Measuring range | 32 - 176 °F |
| Resolution | 0,18 °F |
| Accuracy | ±0,72 °F |
| Sensor | |
| Size | Albero: 57 × 4 × 1.7 mm (L × L × H × W) |
| cable length | 140 cm |

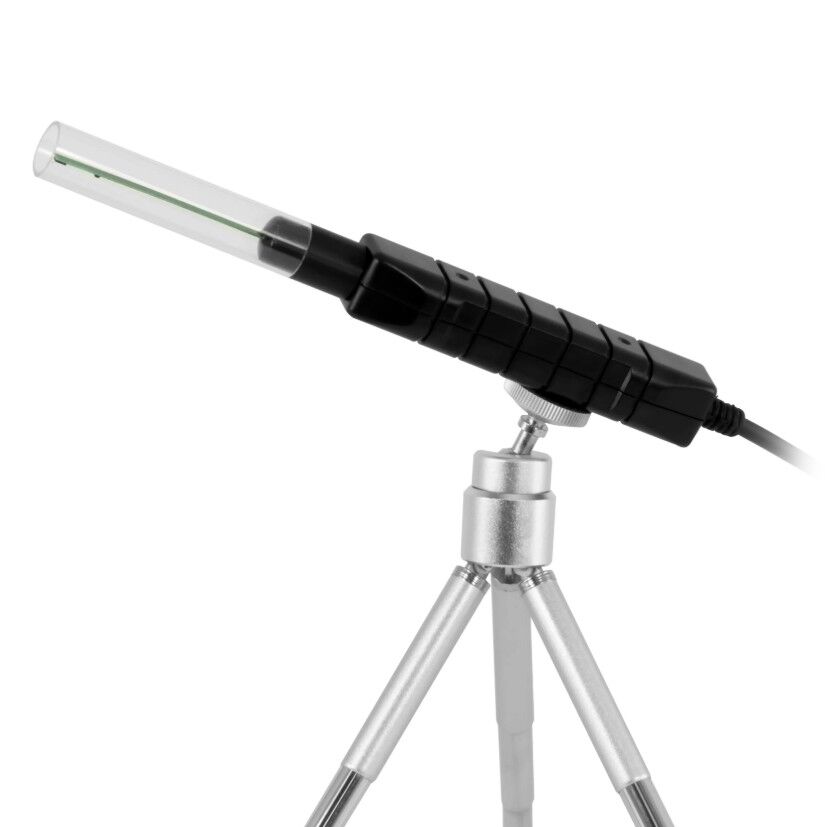

| Additional description | Tripod thread: 1/4 inch |
| Measurement functions | HOLD, MAX, Average value |
| Unit | µT, mT, g, A/m, Oe, WB/m², A/cm |
| Direction of measurement | transversal |
| Display type | LCD with backlight |
| Display size | 2.8 Inches |
| Storage medium | Internal memory |
| Storage capacity | 32 GB |
| Storage range from | 1 s |
| Storage range up to | 24 h |
| Data interface | USB-C |
| Operating time | 24 h |
| Operating time Additional information | Depending on the brightness of the screen and the use of the data logger |
| Adjustable automatic shutdown | 1 - 15 min. |
| Automatic shutdown can be turned off | Si |
| Lingua Menu | German, English (GB), English, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Danish, Japanese |
| Protection class (device) | IP52 |
| Power supply | USB 5 V DC, 500 mA |
| Battery | 1 x 3.7 V internal , Lithium polymer battery |
| Battery capacity | 2500 mAh |
| Operating conditions | -20 - 65 °C , 10 - 95 %U.R. |
| Storage conditions | -20 - 65 °C , 10 - 95 %U.R. |
| Dimensions ( W x L x H ) | 168 x 85 x 32 mm |
| Weight | 248 g |
Beyond magnetic measurements, the gaussmeter integrates a precise temperature measurement system with a 0°C to 80°C operating range and ±0.4°C accuracy. The unit features a 2.8-inch color TFT display with multiple data viewing modes, while the 32 GB internal memory stores up to 10 million measurement points.
Operation is simplified through the multilingual interface and advanced functions including HOLD mode, MAX capture, and measurement averaging. Power is supplied either by the integrated LiPo battery or via USB-C connection, ensuring operational flexibility.
Ideal for industrial quality control, magnetic shielding tests, and material selection, this instrument also serves research and development applications, particularly in magnetic materials studies and electromagnetic compatibility (EMC) analysis. Combining metrological precision, data logging capabilities, and intuitive operation, it provides a complete solution for professionals working in electromagnetic measurements.
Features:
- Measuring direction: transverse
- AC and DC magnetic field
- Accuracy of ±1 % of measured value @ 100 - 2400 mT (DC)
- Frequency display
- Temperature measurement
- Units of measurement: µT, mT, G, A/m, Oe, WB/m², A/cm

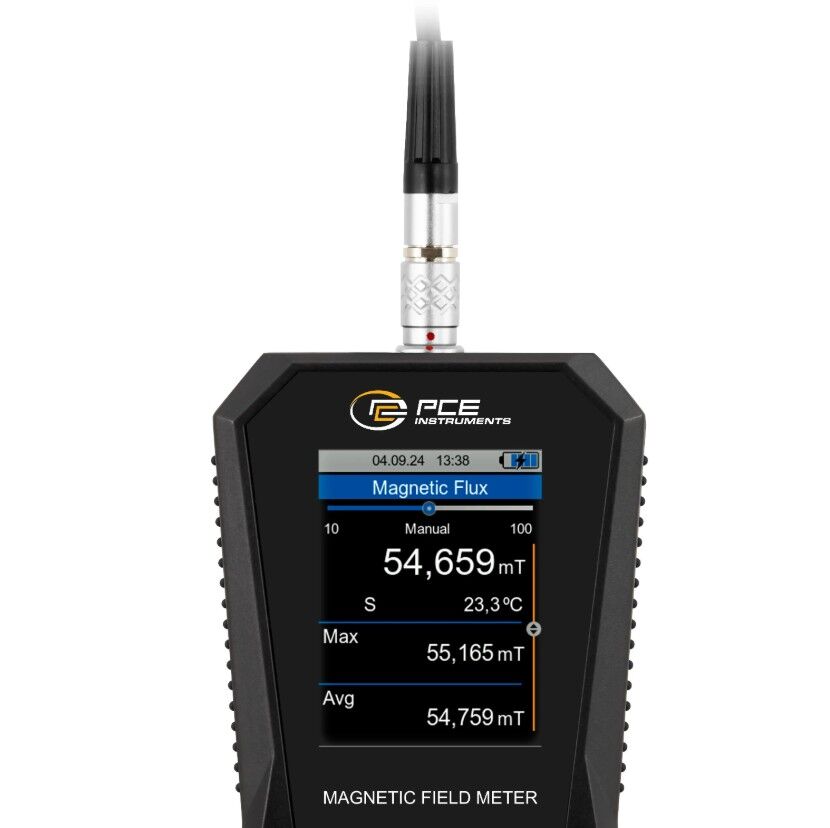

- 2.8-inch TFT color display
- Data logger for up to 10 million measurement points

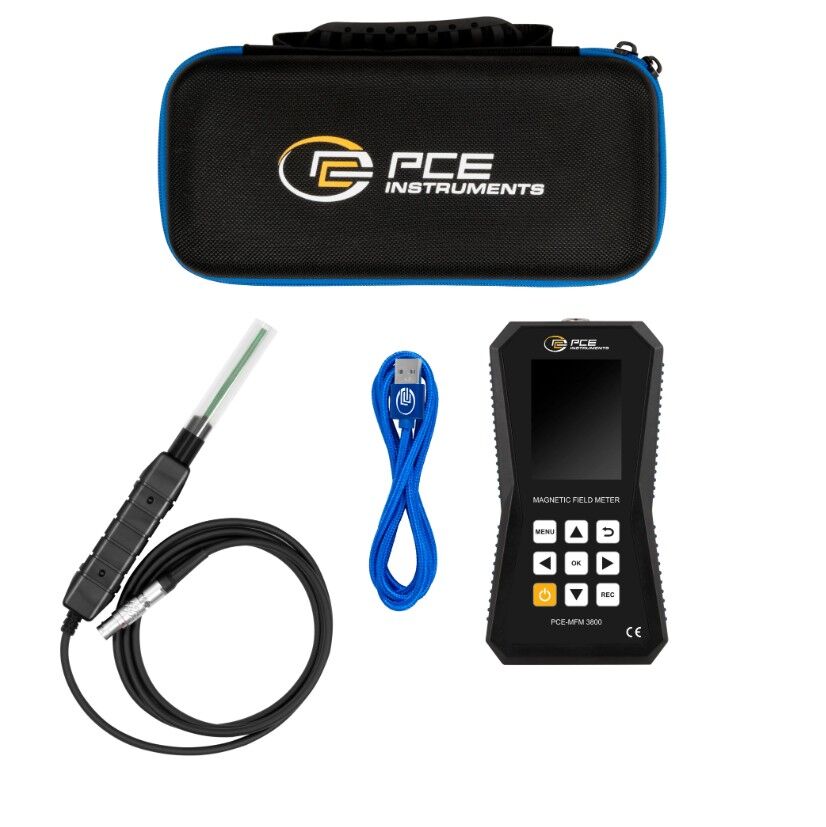

Delivery scope:
1 x Radiometer PCE-MFM 3800
1 x Hall sensor (transverse)
1 x USB-C Cable
1 x Operating Instructions
1 x Carrying Case
- EAN Code:
- 4250348738509
- Typology:
- Radiometer
- Brand:
- PCE INSTRUMENTS
