PCE Instruments PCE-LXT Advanced workplace safety device, continuous light monitoring with relay output, analog output, and digital display for industrial applications
In stock
SKU
PCE-LXT
€387.90
(Incl. Tax: €473.24)
(Incl. Tax: €473.24)

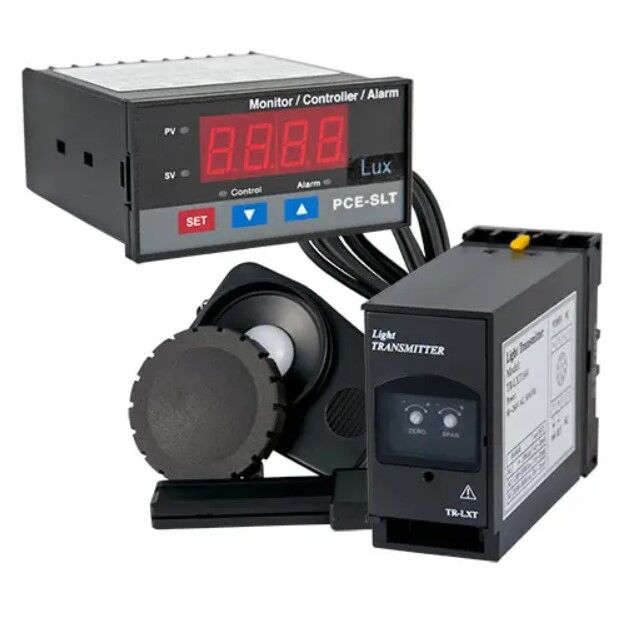

The workplace safety and health device consists of a light sensor, wall mount, 1.5 m cable, signal transmitter, and digital display. It is used for the continuous measurement and control of light in photographic laboratories or production areas, such as in the processing of food and pharmaceuticals. The display includes a relay output for audible or visual alarms and an analog output. It allows for the programming of alarm limit values and the analog output can be used to control valves or send data to a datalogger. Powered by 230 V.
Technical specifications:
| Lux sensor | |
| Measuring range | 0 - 50000 lux in three areas |
| Resolution | 0.1 lx / 1 lx |
| Accuracy | ±5 % of reading |
| Sensor | Photo Diode with color correction filter according to C.I.E. |
| Supply | via transmitter |
| Cable length (sensor to transmitter) | 1.5 m / 4.9 ft |
| Ambient conditions | max. 80 % relative humidity / 0 - +50 °C (32 - 122 °F) |
| Housing material | ABS plastic |
| Transmitter | |
| Housing | ABS plastic |
| Supply | 90 - 260 ACV |
| Calibration | adjustable via grub screws |
| Output | 4 - 20 mA |
| Degree of protection | IP 54 |
| Ambient conditions | max. 85 % relative humidity / 0 - +50 °C (32 - 122 °F) |
| Digital display | |
| Input signal from the transmitter | 4 – 20 mA |
| Display | -1999 - 9999 (1 - 3 decimal places, depending on the measured value / selectable by the user) |
| Programming data (decimal point, limit value...) | are stored in the device |
| Control output | 3-point (Com, NO, NC) |
| Alarm output | relay output: 5 A / 240 VAC |
| Supply | 90 - 260 ACV / 50 - 60 Hz |
| Dimensions / control panel cut-out according to DIN | 92 (+0.8) mm x 45 (+0.5) mm |
| Weight | ca. 250 g / 8.8 oz |
| Ambient conditions | max. 85 % relative humidity / 0 - +50 °C (32 - 122 °F) |
| Degree of protection | IP 65 |
The workplace safety and health device represents an advanced solution for the continuous monitoring and precise control of light intensity in critical environments, such as photography laboratories, food production areas, and pharmaceutical production, or any sector where light quality is crucial to ensure operational and safety standards. This device is designed to operate reliably under challenging conditions, thanks to its robust ABS plastic construction and IP54 rating, making it resistant to dust and water splashes, ensuring durability even in complex industrial environments.
At the heart of the system is its high-precision light sensor, capable of detecting illumination levels up to 50,000 lux, with a resolution of 0.1 lx, ensuring high accuracy in measurements. The sensor is connected to a signal transmitter via a 1.5-meter cable, allowing easy installation and sensor placement even in hard-to-reach areas. The transmitter not only powers the sensor but also sends the collected data to the control unit for display and processing.
The digital display is a key feature, offering clear readings of the measured values and allowing the operator to monitor light levels in real time. The display includes a programmable relay output that can be used to trigger audible or visual alarms when preset safety limits are exceeded. This is particularly useful in environments where continuous monitoring is critical, such as production lines or refrigerated warehouses, where changes in light levels may indicate equipment or environmental issues.
In addition to the relay output, the device is equipped with an analog output, which can be used to send collected data to external systems, such as a datalogger or a remote control system. This feature enables detailed recording and analysis of measurements over time, facilitating data processing and documentation for quality control or safety purposes. The system also supports custom calibration via a set screw, ensuring that measurements are always accurate and meet required standards.
Installation is simplified by the device's versatile power supply, which supports a voltage range of 90 to 260 V AC, making it easy to integrate into various electrical infrastructures without the need for complex or costly modifications. Additionally, the operating conditions allow efficient use in environments with up to 85% relative humidity and temperatures ranging from 0 to 50°C, greatly expanding the potential fields of application.
This device is particularly suitable for the industrial sector, where proper light management can directly impact production quality. For example, in food production areas, continuously monitoring brightness is essential to maintain optimal conditions for food preservation, reducing the risk of contamination or spoilage. In the pharmaceutical sector, light must be precisely controlled to ensure that light-sensitive substances are handled and stored correctly.
Thanks to its ability to provide reliable measurements and trigger automatic alarms, this device is an essential tool for technicians and engineers operating in environments where light management is critical to safety and operational efficiency.
In summary, the workplace safety and health device offers a unique combination of robustness, precision, and versatility, making it an indispensable tool for ensuring continuous lighting monitoring and protection in sensitive work environments. Its ease of use and programmable options make it an efficient and reliable solution for improving quality and safety in various industrial and commercial sectors.
Caratteristichs:
- Measuring range: 0 - 50000 Lux in three areas
- Resolution: 0.1 lx / lx 1
- Accuracy: ± 5% of reading
- 4 to 20-mA analog output
- Resolution: 0.1 lx / lx 1
- Accuracy: ± 5% of reading
- 4 to 20-mA analog output
Delivery scope:
1 x Illuminometer PCE-LXT
1 x Lux sensor on 1.5 m (4.9 ft) cable
1 x Light transmitter
1 x Digital display device
1 x Instruction manual
1 x Lux sensor on 1.5 m (4.9 ft) cable
1 x Light transmitter
1 x Digital display device
1 x Instruction manual
- EAN Code:
- 4250348727244
