PCE Instruments PCE-LTD 100 Cryo datalogger for low-temperature measurement, measurement range -80 to +70°C
(Incl. Tax: €290.99)
The PCE-LTD 100 Cryo datalogger is designed for precise low-temperature measurements, with a measurement range spanning from -80 to +70°C. This device is ideal for monitoring temperature-sensitive environments and applications, featuring high accuracy and reliability. It is equipped with a digital display for easy reading of current temperature values and comes with data logging capabilities, allowing for the analysis of temperature trends over time. The datalogger is compact and user-friendly, making it suitable for both professional and personal use in various fields, including research, pharmaceuticals, and storage of sensitive materials.

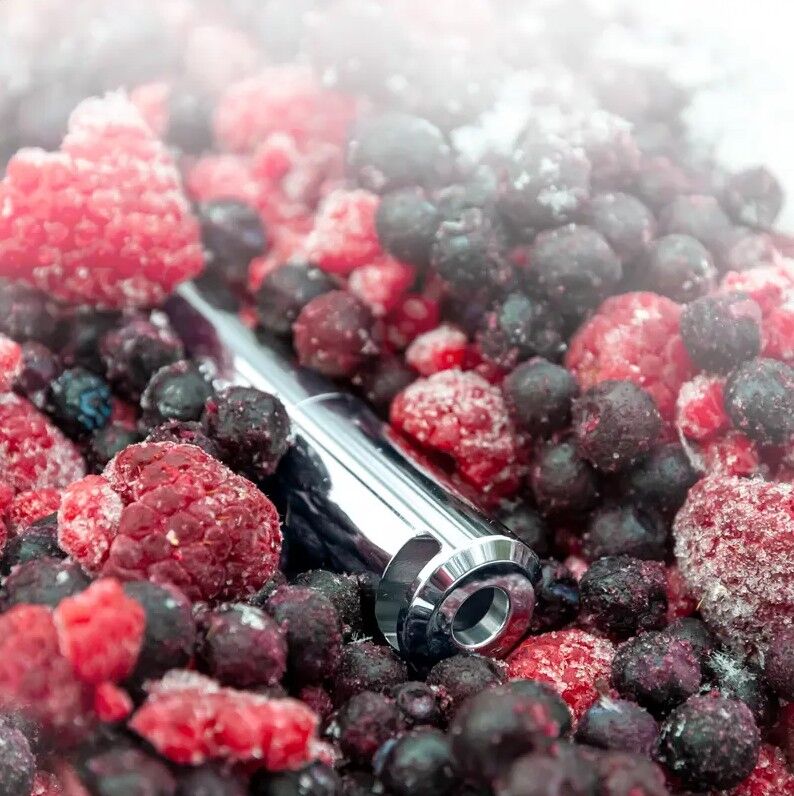

The Cryo data logger is a measuring instrument designed for precise monitoring of low temperatures, with an operating range from -80 to +70 °C. Thanks to these specifications, it is particularly suitable for cold chain control as well as for the transport and storage of medical, pharmaceutical, and frozen food products, ensuring that optimal conditions are maintained throughout all logistical stages. The internal memory can store up to 17,280 readings completely independently, supported by a replaceable battery that guarantees continuous operation even during extended monitoring cycles.
Technical Data:
| Measuring range | -80 - +70 °C / -112 - +158 °F |
| Measuring accuracy | ± 0.5 °C (-30 - +70 °C / -22 - +158 °F) ± 1 °C (-80 - -31 °C / -112 - +23.8 °F) |
| Resolution | 0.1 °C |
| Storage capacity | 17,280 values |
| Sampling interval | 1 s - 24 h |
| Storage formats via software | PDF, TXT, CSV, XLS, JPG, BMP, CIN |
| Start mode | time setting |
| Stop modes | when a USB connection has been established, as soon as the memory is full, as soon as the set number of memory points has been reached |
| Operating conditions | -80 - +70 °C / -112 - +158 °F, non-condensing |
| Storage conditions | -40 - +70 °C / -40 - +158 °F (without battery) |
| Battery life | 2 years @ 25 °C / 77 °F / 15 min storage interval 30 days @ -80 - -70 °C / -112 - +158 °F / 15 min storage interval |
| Power supply | 3.6 V 2/3 AA high temperature battery interchangeable (ER14335) |
| Protection class | IP67 |
| Dimensions | Ø 18 mm + 115 mm / Ø 7" + 45" |
| Weight | ca. 95 g / 3.3 oz (without battery) |

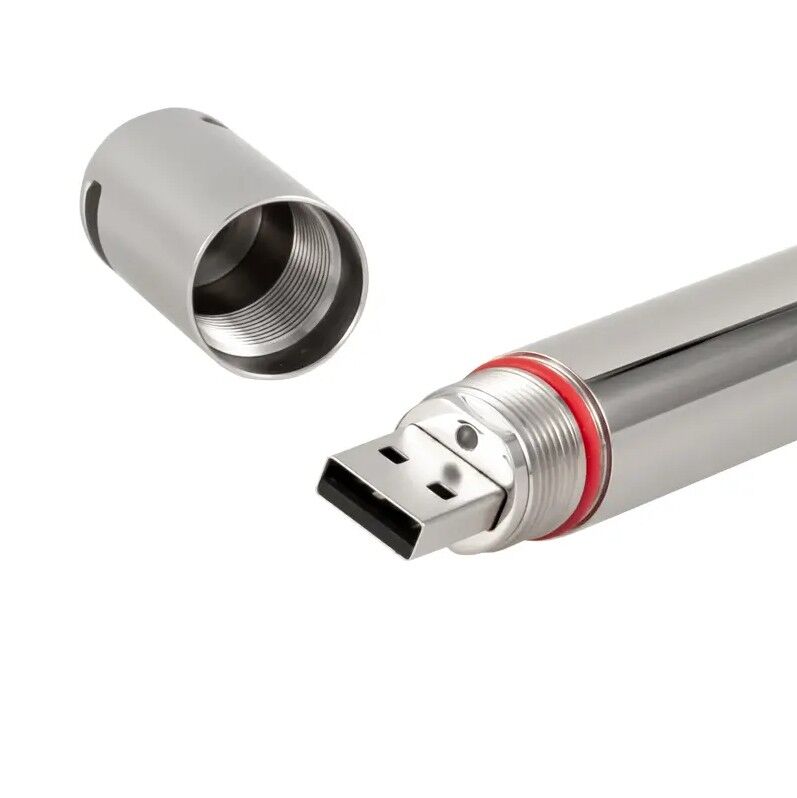

Its robust metal housing with IP67 protection makes the device resistant to water, dust, and impacts, enabling use in demanding environments and during the transport of sensitive materials. For data analysis, the Cryo data logger is connected to a computer via USB, where it is recognized as an external drive. The supplied software not only allows the reading and evaluation of stored values but also enables export in multiple formats such as XLS, CSV, PDF, TXT, or CIN, while graphs can be saved in JPG. Furthermore, the device can be configured to automatically generate export files in commonly used formats, simplifying direct integration into company databases or tracking systems.
The software also allows configuration of operational parameters, including start time, sampling rate, measurement units, and alarm thresholds, providing maximum flexibility according to specific monitoring requirements. Compact, durable, and easy to use, the Cryo data logger is a professional solution for technicians and specialized operators who require precision, reliability, and practicality in low-temperature monitoring.
Features:

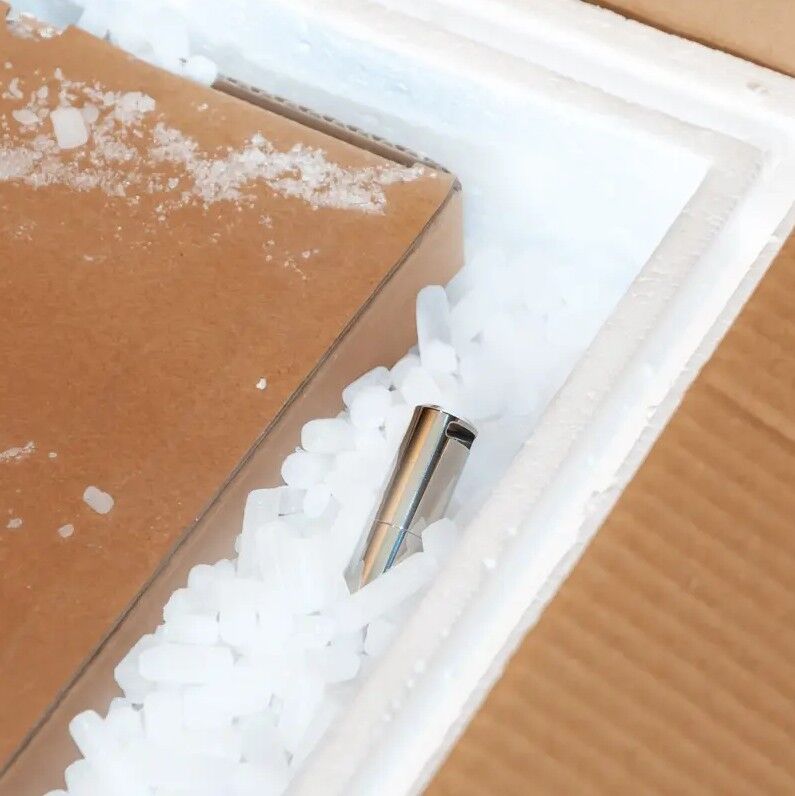

- USB data logger for dry ice
- Data export directly as PDF
- Waterproof housing IP67

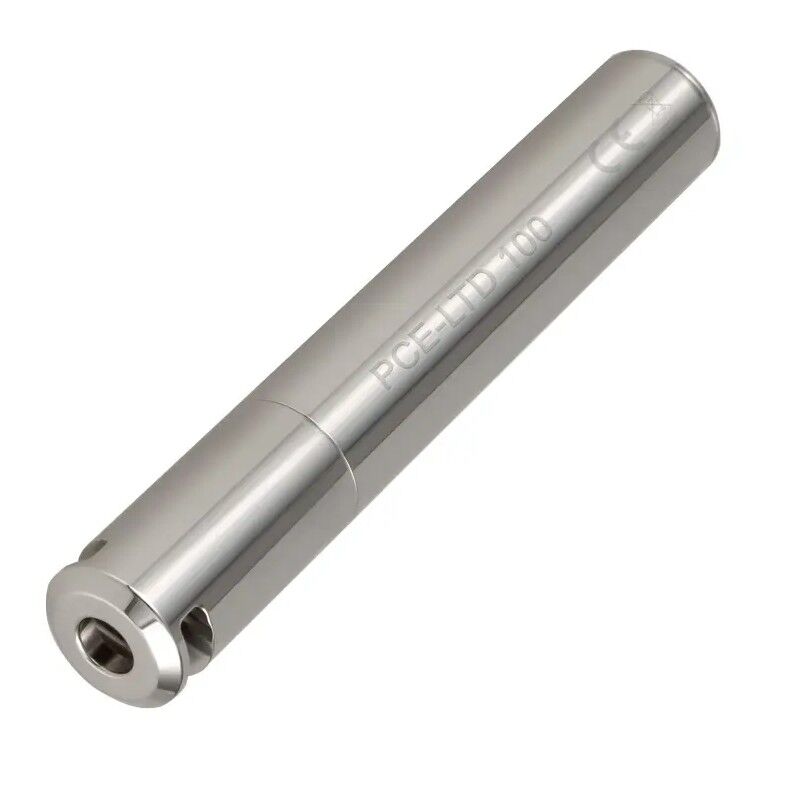

- Robust metal housing
- For temperatures between -80 - +70 °C / -112 - +158 °F
- Instantly replaceable battery
Delivery scope:
1 x Thermometer PCE-LTD 100
1 x 3.6 V 2/3 AA high temperature battery
1 x Instruction manual
1 x Software
- EAN Code:
- 4250348723215
- Typology:
- Transport & Traceability
- Brand:
- PCE INSTRUMENTS
