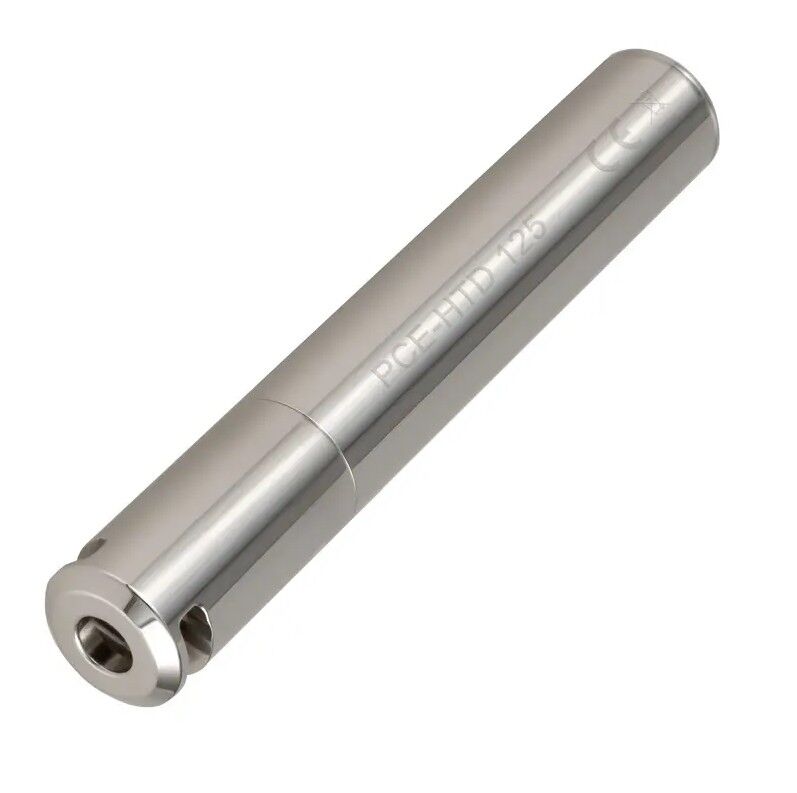

PCE Instruments PCE-HTD 125 Temperature datalogger with analysis software for automatic determination of temnperatures between -40 to 125 °C
(Incl. Tax: €295.73)
The PCE-HTD 125 is a temperature datalogger designed for automatic analysis of temperature ranges from -40 °C to 125 °C. It features user-friendly software for data analysis, enabling efficient monitoring and recording of temperature variations. This device is ideal for various applications, ensuring accurate temperature measurement and tracking over time.
This temperature data logger provides a rugged, reliable solution for continuous monitoring in extreme temperature environments, operating across a wide -40°C to +125°C range. Its waterproof metal housing with IP67 protection effectively withstands harsh conditions, making it particularly suitable for industrial applications like autoclave monitoring or high-temperature processes. The generous internal memory stores up to 32,000 measured values, enabling complete thermal curve tracking for detailed analysis.
Technical specifications:
| Measuring range | -40 - 125 °C / -40 - 257 °F |
| Measuring accuracy | ±0.2 °C (0 - +65 °C / 32 - 149 °F) |
| Resolution | 0.1 °C |
| Storage capacity | 32,000 values |
| Sampling interval | 1 s - 24 h |
| Storage formats | TXT, CSV, XLS, JPG, BMP |
| Start mode | timed or immediate |
| Stop modes | when a USB connection has been established, as soon as the memory is full, as soon as the set number of memory points has been reached |
| Operating conditions | -40 - +125 °C / -40 - 257 °F, non-condensing |
| Storage conditions | -40 - +85 °C / -40 - 185 °F (without battery) |
| Power supply | 3.6 V 2/3 AA high temperature battery |
| interchangeable (ER14335S) | |
| Protection class | IP67 |
| Dimensions | Ø 18 mm + 115 mm / Ø 7" + 4.5" |
| Weight | ca. 95 g / 3.3 oz (without battery) |
Computer integration is remarkably simple: automatically recognized as a USB mass storage device, it generates PDF reports accessible from any operating system without specific software. For deeper analysis, the included software allows data export in multiple formats (TXT, CSV, XLS) and graphs in JPG or BMP, offering full flexibility for post-processing. The replaceable battery ensures long-term operational continuity, completing the features of this tool designed for professionals requiring reliability and versatility in demanding environments.
Features:
- Robust metal housing with IP67
- For temperatures between -40 - +125 °C / -40 - 257 °F
- Exchangeable battery
- USB data logger for 32,000 measured values
- Data export directly as PDF
- Software included in delivery
Delivery scope:
1 x Thermometer PCE-HTD 125
1 x 3.6 V 2/3 AA high temperature battery
1 x Instruction manual
1 x Software
- EAN Code:
- 4250348723239
- Typology:
- Temperature Monitoring
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- ±0.2 °C
- Temperature:
- -40°C +125 °C
