The dry block temperature calibrator is a high-precision professional instrument designed to ensure accurate verification and calibration of probes and transducers in a wide range of applications. Periodic calibration of temperature sensors is essential, since they are constantly exposed to mechanical, thermal, and chemical stresses that over time can cause deviations from reference values. Such variations may result in measurements that do not correspond to the actual temperature, with possible negative effects on monitoring and control processes. The use of a dry block calibrator makes it possible to identify these deviations clearly and reliably, highlighting the drift behavior of the sensor and enabling timely corrective action.

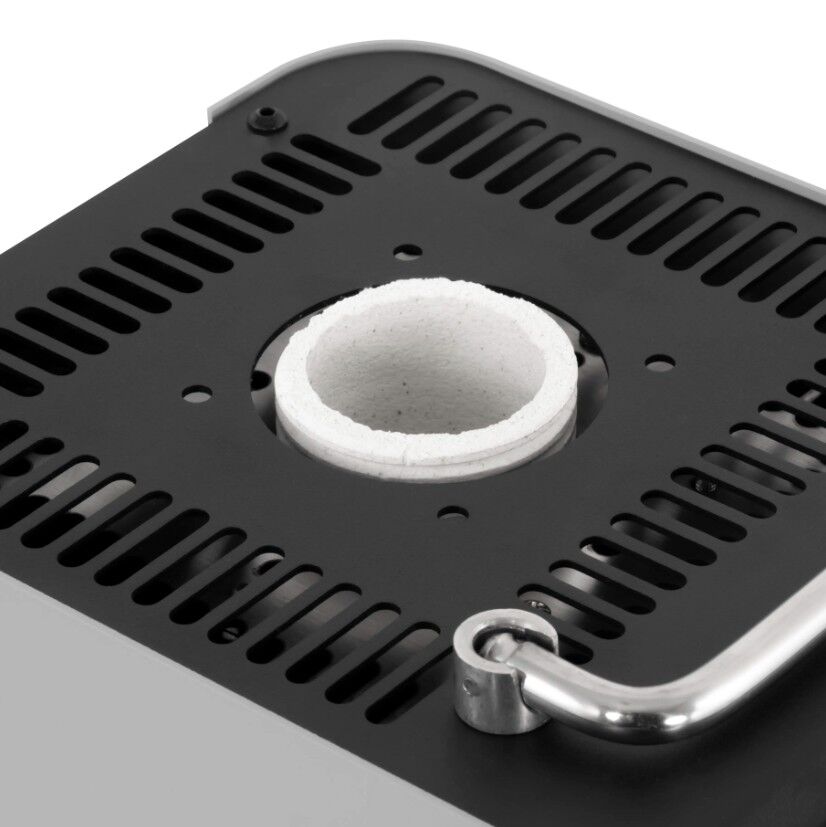

This model, featuring a compact and lightweight design, integrates a removable dry block which, with the aid of appropriate inserts, ensures optimal thermal coupling with the sensor under test. It is particularly suitable for the calibration of PT100, PT1000 and a wide variety of other measuring devices, and can be adapted to probes of different lengths and diameters. The presence of four sensor holes, ranging from 6 to 12 mm, further enhances its versatility and allows simultaneous use in different testing configurations.

Technical specifications:

Thanks to its rapid heating time and high accuracy of 0.1%, the calibrator ensures reliable results both in laboratory operations and in on-site testing. The wide temperature range covered by the Dry Block technology eliminates the need to replace calibration fluids or media, greatly simplifying the operator’s work and avoiding the common problems of other systems, such as fluid viscosity, flash point or degassing.

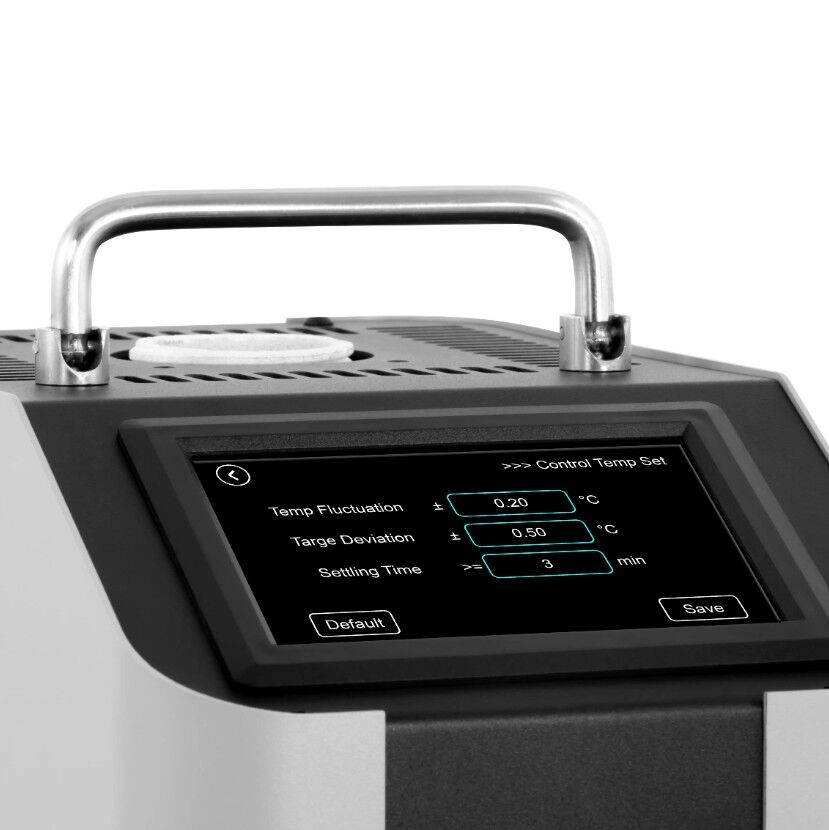

Operation is user-friendly, supported by a full-color touch screen display that allows fast parameter setting, PID adjustment management, data storage thanks to the internal memory, and customizable alarm configuration to guarantee maximum safety during use. A practical carrying handle makes the device easy to transport, ideal for those who need a versatile and high-performance tool ready for use in any operating environment.

In conclusion, this dry block calibrator represents a precise, reliable, and easy-to-use solution for the periodic calibration of temperature sensors, combining high performance, ease of operation, and maximum flexibility in both laboratory and field applications.

Features:

- Simple calibration
- 4 sensor openings 6 - 12 mm
- Easily transportable
- colour touch display
- adjustable alarm
- PID settings
- internal memory

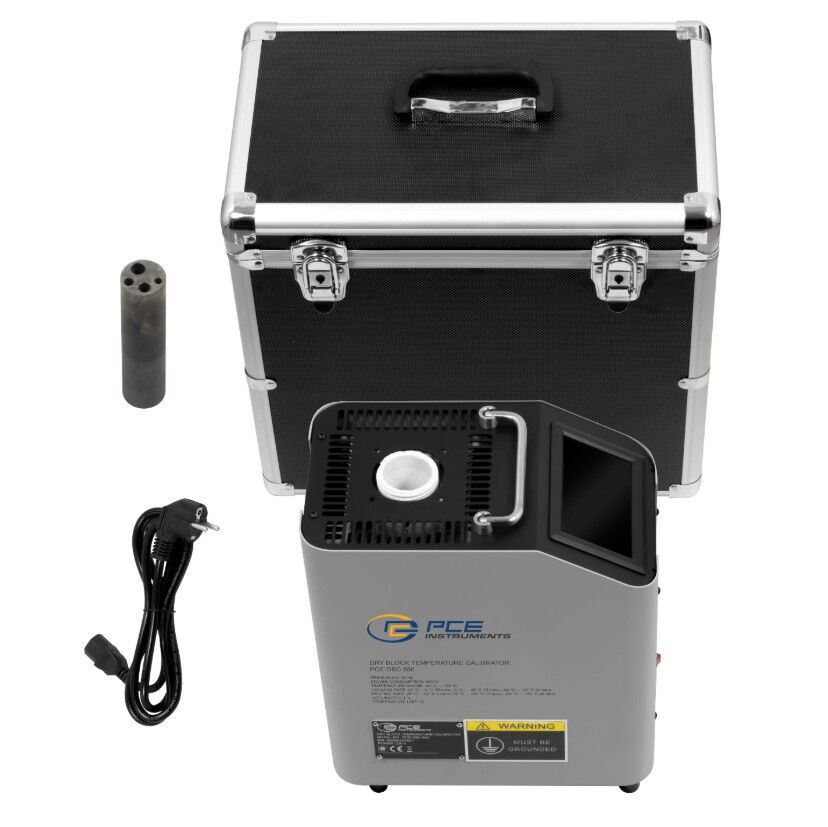

Shipping Content:

1 x calibrator / simulator PCE-DBC 650
1 x calibration insert
1 x transport case
1 x power cable
1 x operating instructions
