Maximum capacity	10000 kg / 22046 lbs ≈ 10 Tons
Minimum weight	100 kg / 220.5 lbs
Resolution	5 kg
Standard	OIML class III
Zero range	4 % full scale (FS)
Tare range	100 % FS
Settling time	≤ 10 seconds
Overload indication	100 % FS + 9e
Max. safety load	125 % FS
Ultimate load	400 % FS
Display	5-digit LCD/LED, 30 mm / 1.18" character height
Battery	6 V / 7 Ah fully-sealed lead-acid battery
Battery life	≥ 50 hours
Battery charger	9 V DC / 1000 mA
Remote control range	15 m / 49.2'
Remote control battery	2 x 1.5 V AAA batteries
Operating temperature	-10 - +40 °C / +14 - +104 °F
Operating humidity	≤ 85 % RH under +20 °C / +68 °F
Dimensions	264 x 206 x 745 mm / 10.4 x 8.1 x 29.4"
Weight	30 kg / 66.2 lbs

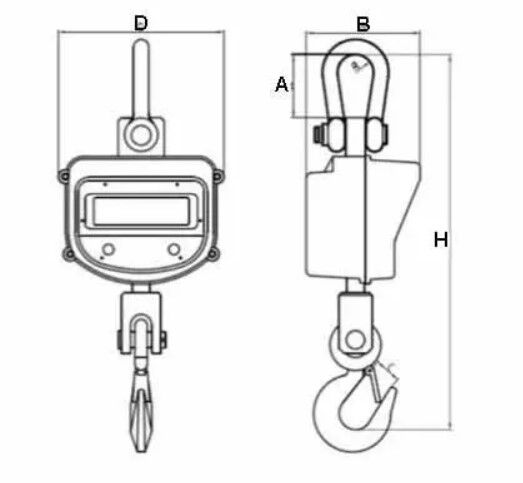

Dimension
A	124 mm
B	206 mm
D	264 mm
H	745 mm

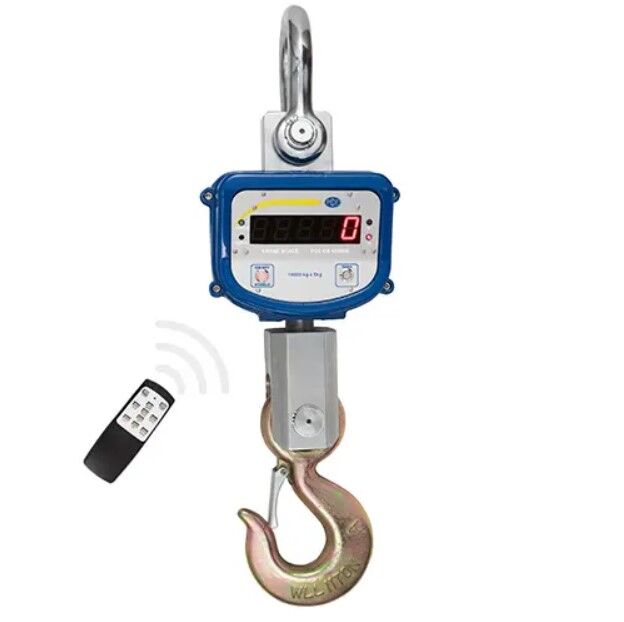

The dynamometer is an essential measuring tool for the precise and safe determination of suspended load weight. Designed for industrial applications, this device can measure loads up to 10 tons, ensuring reliable performance even in challenging work conditions. The dynamometer is used in various sectors such as logistics, mechanical engineering, construction, and quality control, where accurate and safe load weighing is critical. Thanks to its robust construction, it withstands intensive use and handles heavy loads without compromising the accuracy of measurements.



Using the dynamometer is extremely simple and intuitive, even for less experienced operators. It is placed between the load and the lifting system, such as a crane or a hoist, using a heavy-duty shackle located at the top, while a rotating hook with a safety latch ensures a secure grip on the load. One of the main features of the dynamometer is the 5-digit LED display with 30 mm high characters, which clearly shows the measured weight even from a distance, improving visibility and making the operator's work easier in difficult or poorly lit environments.



The dynamometer's integrated battery, with a capacity of 7 Ah, guarantees continuous operation for over 50 hours, a high operating time suitable for long work sessions without interruptions. When the battery charge is low, the display starts flashing, alerting the operator that recharging is necessary, preventing any disruption in the weighing process.



The dynamometer also features several advanced functions that make it extremely versatile and easy to use in various industrial applications. The TARE function allows zeroing the weight of accessories such as ropes, chains, or slings used to lift the load, providing a net measurement of the actual load weight. If the tare weight is already known, it can be manually entered to save time. Another very useful feature is the SUM function, which allows multiple weights to be added during operations and provides a total value directly on the display, eliminating the need for manual calculations and increasing operational efficiency. The HOLD function freezes the measured value on the display, allowing the operator to accurately record the data even in situations where the load is moving or the reading may be difficult.



The dynamometer is controlled via a remote control, provided with the device, further simplifying operations by allowing the operator to manage the device without having to physically reach it. This feature is especially useful in situations where the dynamometer is positioned at high or hard-to-reach points.



The dynamometer also stands out for its compact and robust design, making it resistant to shocks and suitable for demanding industrial environments. The quality of the materials used in its construction ensures long-lasting durability and high resistance to wear, while the ease of use and speed of measurement make it an ideal tool for those who need to weigh loads accurately and quickly.



In conclusion, the dynamometer represents a reliable, efficient, and versatile solution for weighing heavy loads in an industrial setting. Thanks to its advanced functions like TARE, SUM, and HOLD, its remote control, and its long-lasting battery, it meets the needs of operators in terms of precision, convenience, and safety. Whether in quality control operations or material handling, the dynamometer ensures precise measurements, helping to optimize workflows and ensure the safety of loads and operators involved.



- Maximum weighing capacity: 10000 kg / 22046 lbs ≈ 10 Tons
- Resolution: 5 kg
- Tare range: 100% full scale
- Displays measurement values in kilograms (kg) or pounds (lbs)
- Comes factory calibrated (see accessories for optional ISO calibration)
- Includes hook, shackle and remote control
- Features zero, tare, hold, sum / accumulation, battery voltage indication and adjustable brightness functions



1 x PCE-CS-10000N suspended scale with weighing hook, shackle and battery
1 x battery charger
1 x remote control with batteries
1 x user manual
