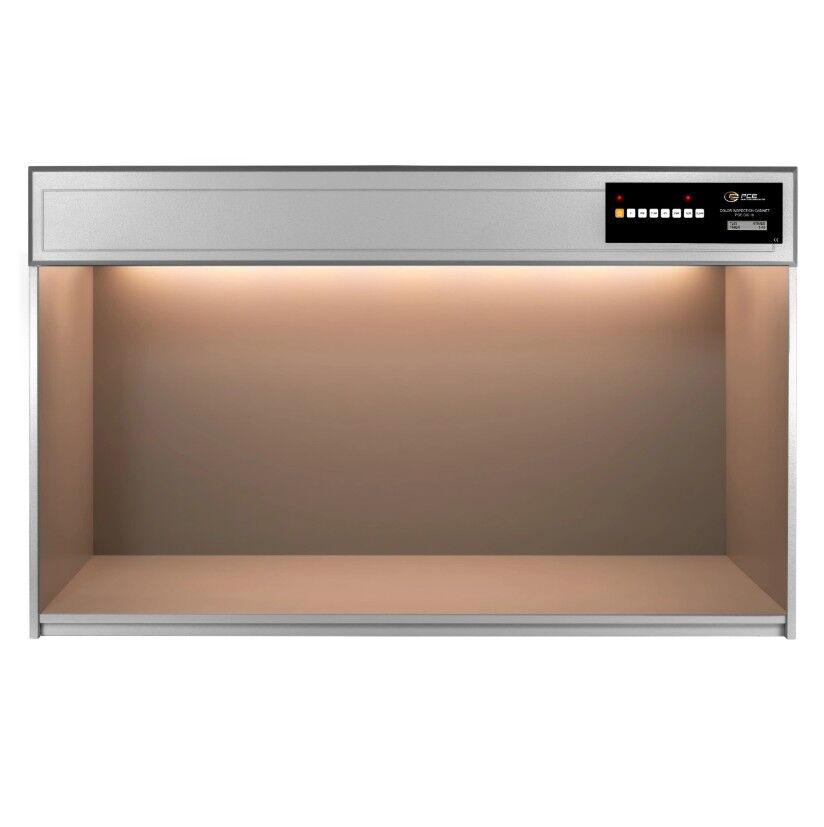

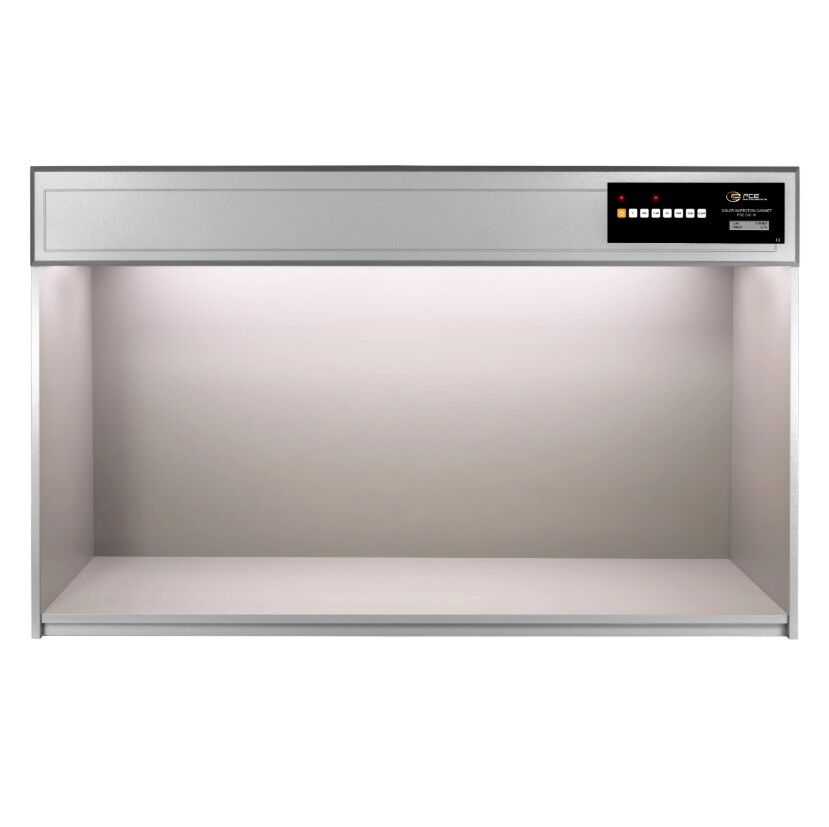

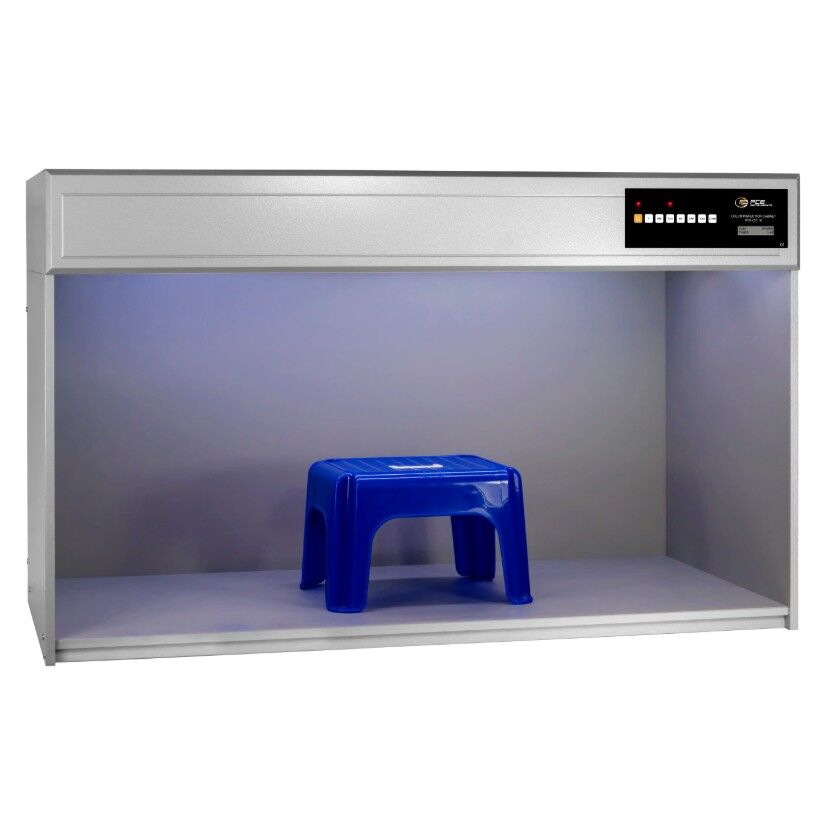

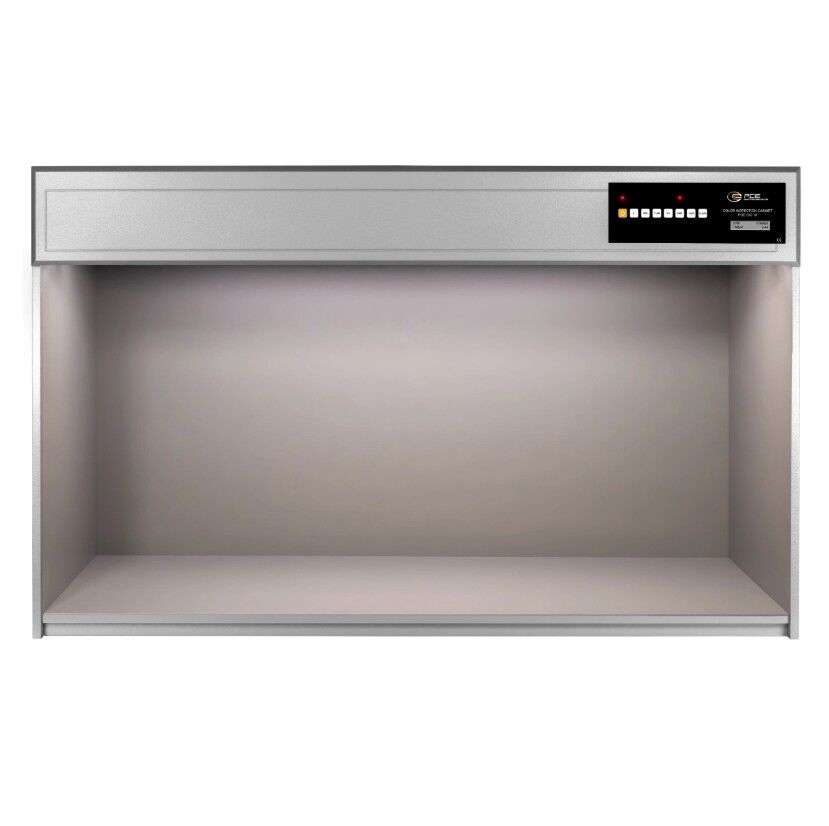

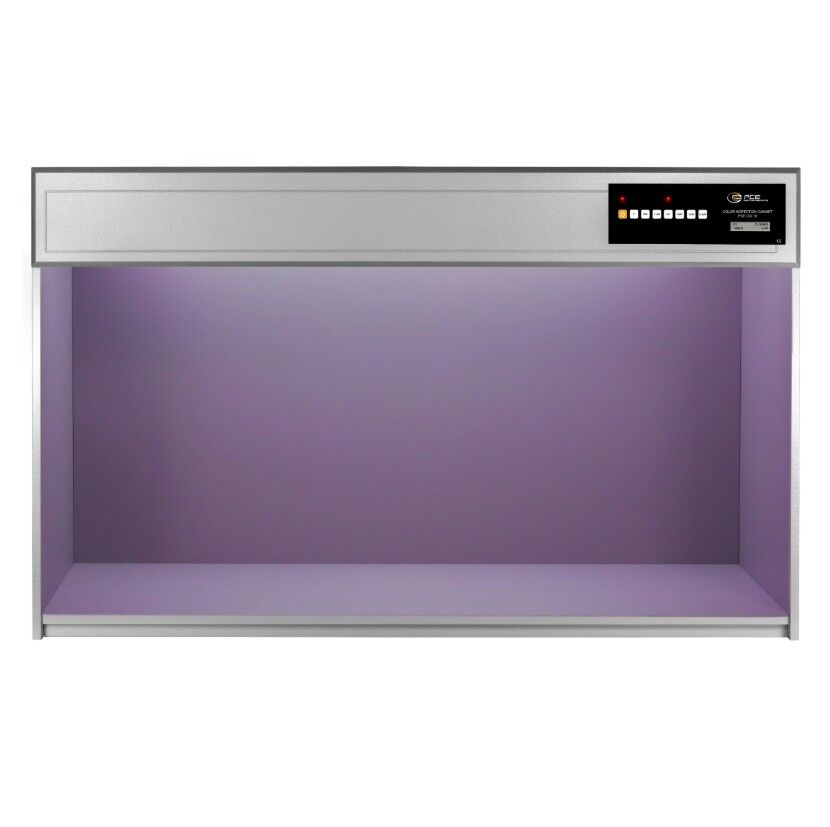

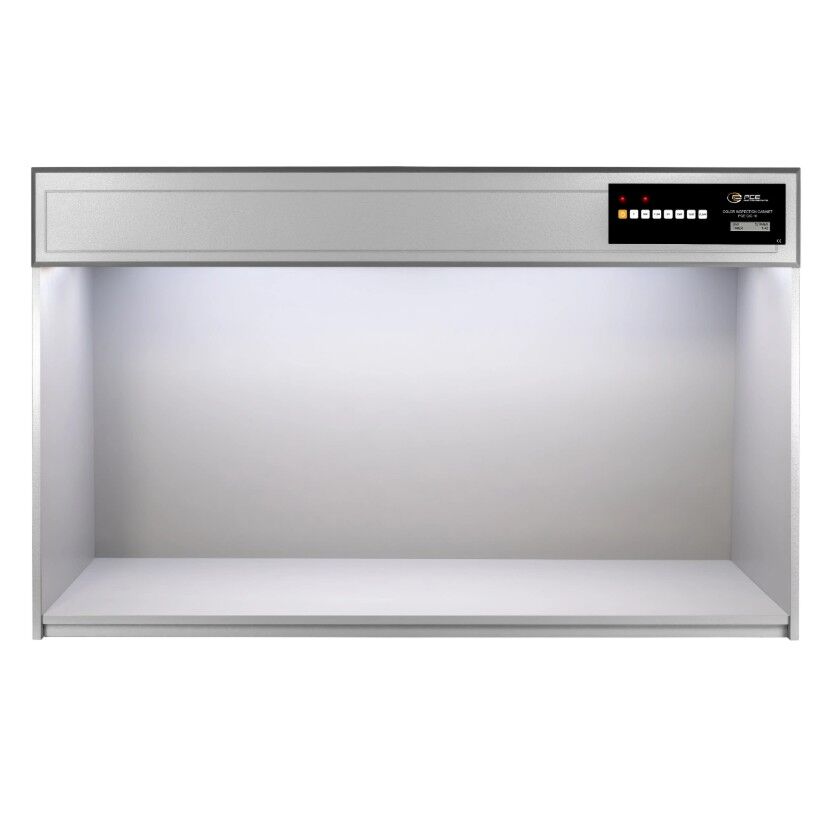

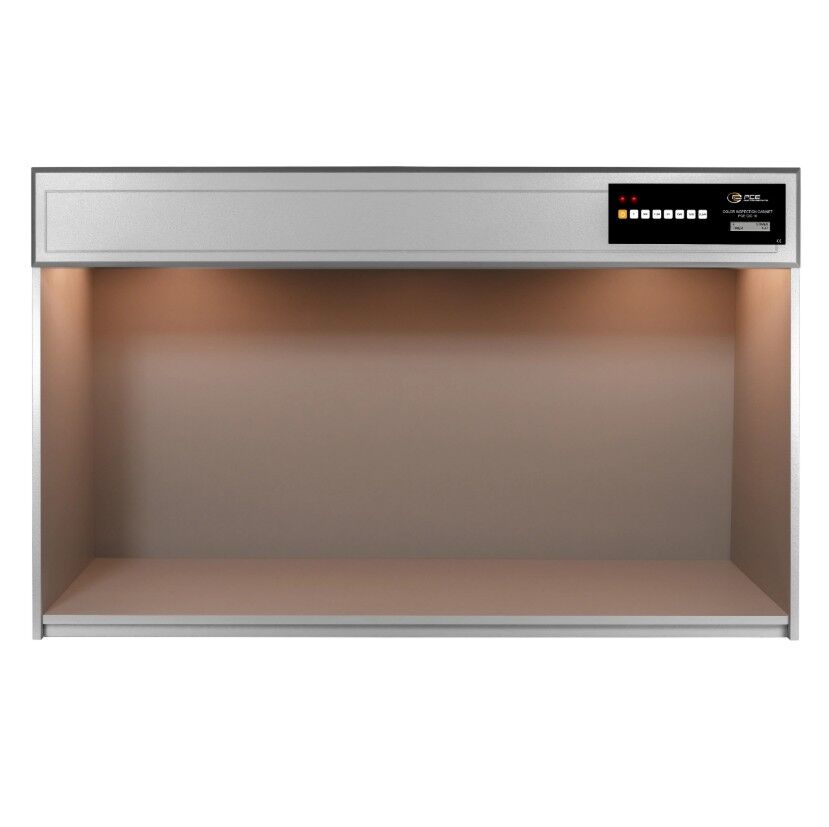

PCE Instruments PCE-CIC 10-LED Color viewing box for quality control and colour comparison, simulating six types of light
(Incl. Tax: €2,366.68)
The PCE Instruments PCE-CIC 10-LED is a colour matching light booth for quality control, designed to compare samples under multiple standard illuminants and reduce colour mismatches caused by changing lighting conditions. It simulates six light types (A/F, D50, TL84/F11, UV, CWF, TL83/U30), selectable via dedicated buttons and also combinable. Large viewing area, easy-to-clean interior and an integrated hour counter to manage recommended lamp operating time.
The PCE Instruments PCE-CIC 10-LED light booth is an essential tool whenever products must show consistent colour appearance during production and inspection. In quality control it enables repeatable evaluation of coatings, prints and materials under standardised lighting conditions, helping to prevent disputes and avoid rework.
In practice, two samples may look identical under one light source yet appear different under another (for example daylight versus retail lighting). This effect—caused by different spectral compositions of the materials and the illuminant—can lead to inconsistent decisions between production, customer and supplier. By checking the same sample under multiple standard light sources, the light booth highlights potential colour deviations early and supports reliable acceptance criteria.

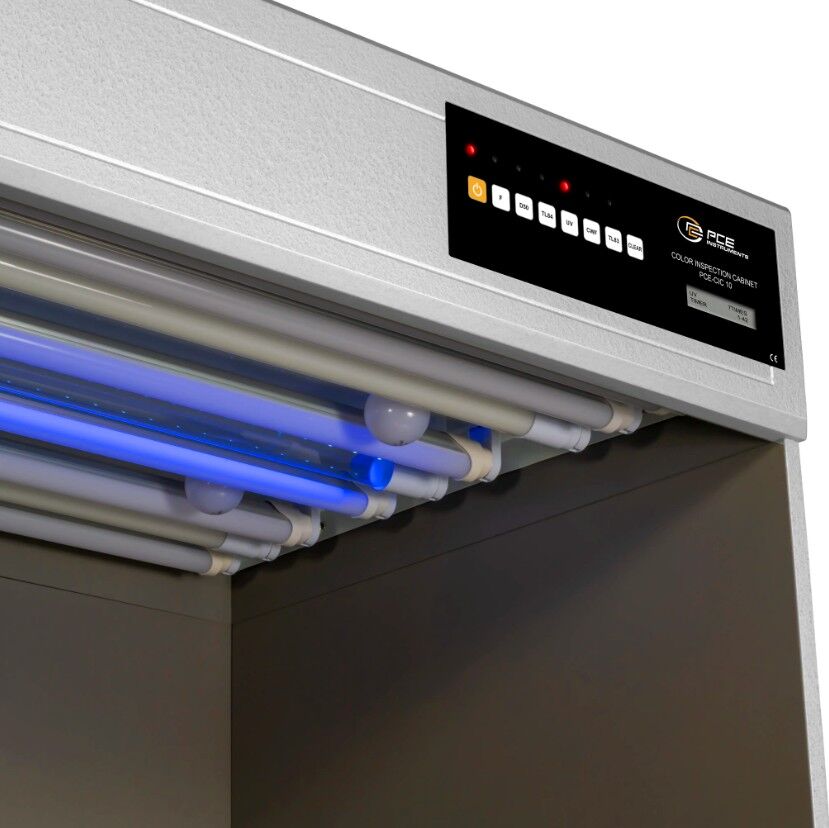

The unit provides six built-in light sources as standard: A/F, D50 (artificial daylight), TL84/F11 (department store lighting), UV, CWF (office/commercial/warehouse) and TL83/U30 (US retail/office). Light selection is made via dedicated buttons and multiple lights can be switched on simultaneously if required. The integrated hour counter helps track lamp usage, while the housing is designed for easy cleaning and low-maintenance operation with a large illuminated viewing area for the test object.
Technical specifications
| Parameter | Value |
|---|---|
| Application | Quality control and colour matching (metamerism reduction) |
| Simulated light sources (6) | A/F, D50, TL84/F11, UV, CWF, TL83/U30 |
| Standards | ASTM D1729, ISO 3664, DIN, ANSI, BSI |

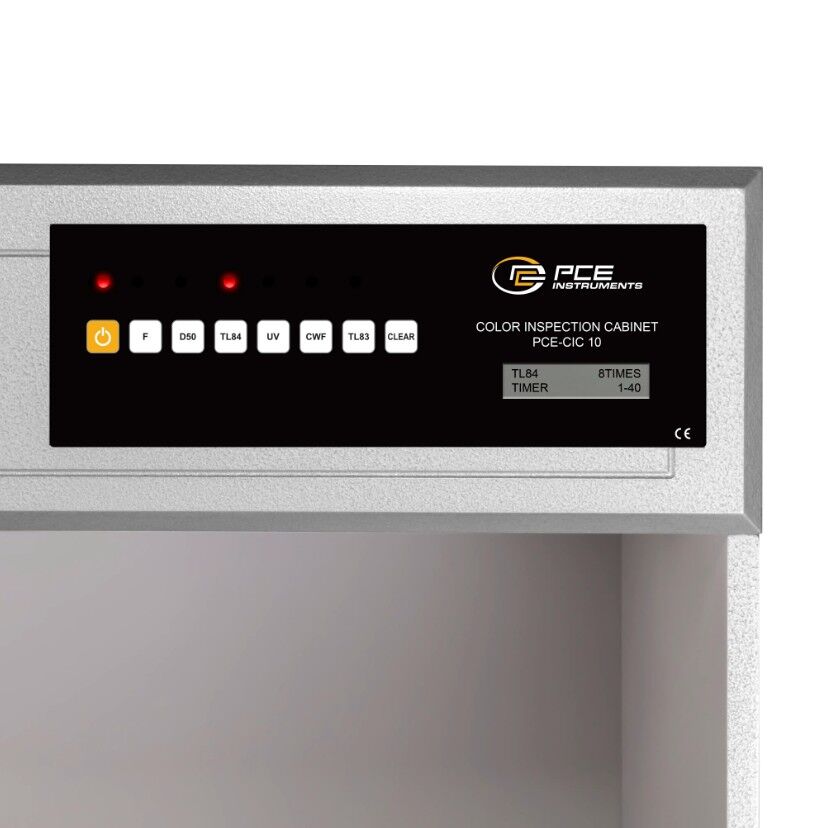

| Light selection | Dedicated buttons, lights can be combined |
| Hour counter | Integrated (lamp operating time tracking) |
| Menu language | English (GB), English |
| Protection rating (device) | IP20 |
| Power supply | 230 V AC / 50 Hz |

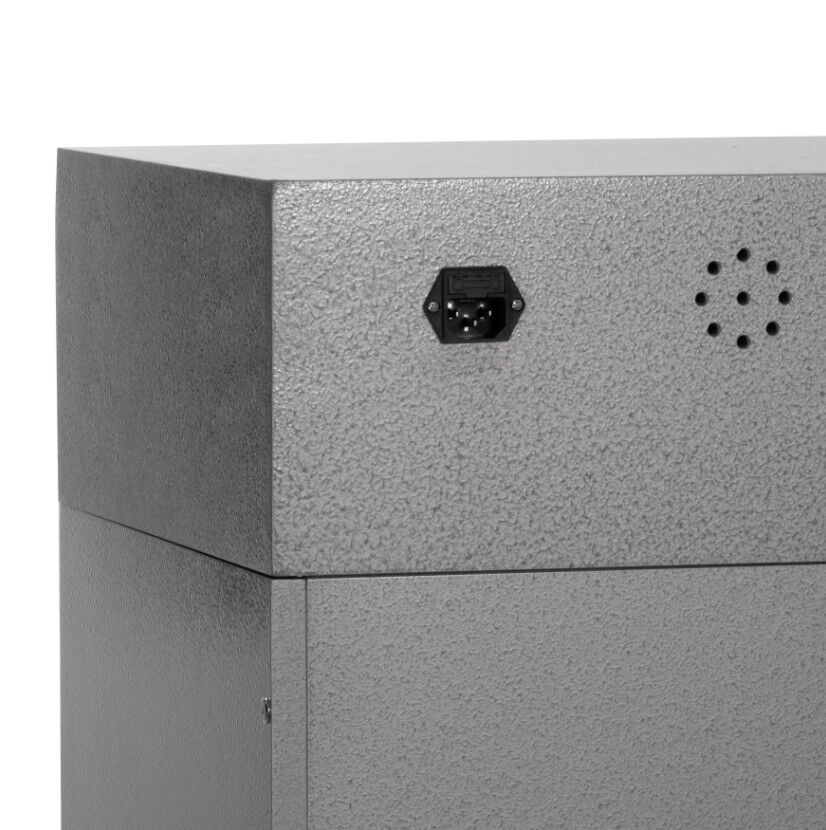

| Connector type | IEC inlet |
| Operating conditions | 10 … 50 °C / 10 … 90% RH |
| Storage conditions | 10 … 50 °C / 10 … 90% RH |
| Dimensions (L × W × H) | 1310 × 600 × 800 mm |
| Weight | 65 kg |
| Features | Large viewing area, easy-to-clean interior, short warm-up time |
Features:
- color assessment under different light types
- with hour counter
- short warm-up time
- according to ASTM D1729, ISO3664, DIN, ANSI, BSI
- easy to clean housing
- large lighting area of the objects

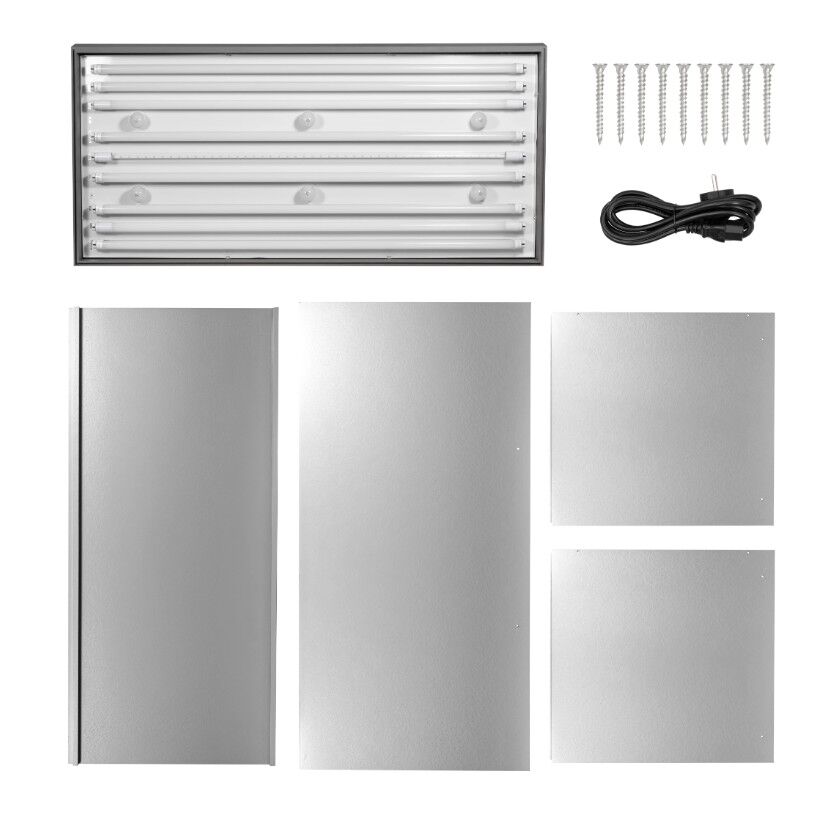

Delivery scope:
1 x Color Viewing Box PCE-CIC 10-LED
1 x instruction manual
