PCE Instruments PCE-BPD-U-46A Panel-mounted display with metal frame, wall and switchboard mounting
(Incl. Tax: €895.71)
The PCE-BPD-U-46A is a panel-mounted display designed for versatile applications. It features a sturdy metal frame, allowing for secure wall and switchboard mounting. This display is ideal for monitoring various parameters in industrial settings, providing clear and accurate readings. Its compact design ensures easy integration into existing systems while maintaining durability and reliability.
The PCE Series X panel display represents an advanced solution for industrial monitoring, featuring a rugged metal design with IP65 protection that ensures resistance to dust and water jets. The bright red 60mm tall LED digits guarantee excellent readability up to 25 meters, even in high ambient light conditions, making it ideal for demanding production environments.
Technical Data:
| Function | to convert analog signal into a usable value |
| Input signal | 4 - 20 mA, ±20 mA DC, 0 - 10 V DC, ±10 V DC |
| Maximum input signal | 100 mA or 100 V DC |
| Input impedance (current measurement) | 11 Ω |
| Input impedance (voltage measurement) | 932 kΩ |
| Number of digits | 4 |
| Digit height | 60 mm / 2.3" |
| Maximum reading distance | 25 m / 82 ft |
| Accuracy | 0.05 % of measuring range |
| Measuring rate | 15 Hz |
| Response time for value changes from 0 to 99% of the signal | 120 ms |
| Display range | -1999 - 9999 |
| Number of outputs | 2 |
| Power consumption (without optional accessories) | 3 W |
| Power consumption (with optional accessories) | 5 W |
| Sensor voltage supply | 20, 15, 10, 5 V DC |
| Sensor power supply accuracy | ±5 % |
| Maximum sensor supply current | 35 mA (with short-circuit protection) |
| Power supply | 85 - 265 V AC / 120 - 370 V DC |
| Weight | 2200 g / 77.6 oz |
| Further specifications | |
| Cable cross-section for input and output signal | <0.5 mm² |
| Cable cross-section for supply voltage | <2.5 mm² |
| Display | 7 segment display |
| Viewing angle | 120 ° |
| Warm-up time | 15 minutes |
| Dimensions | further information can be found in the instructions |
| Operating conditions | 0 - 50 °C / 32 - 122 °F, <90 % RH, non-condensing |
| Storage conditions | -20 - 70 °C / -4 - 158 °F, <90 % RH, non-condensing |
The device supports major industrial input signals including 4-20 mA and 0-10 V, with optional output interfaces available for process signal management and alarm generation when exceeding limit values. Intuitive front-panel button configuration allows complete operational parameter customization.

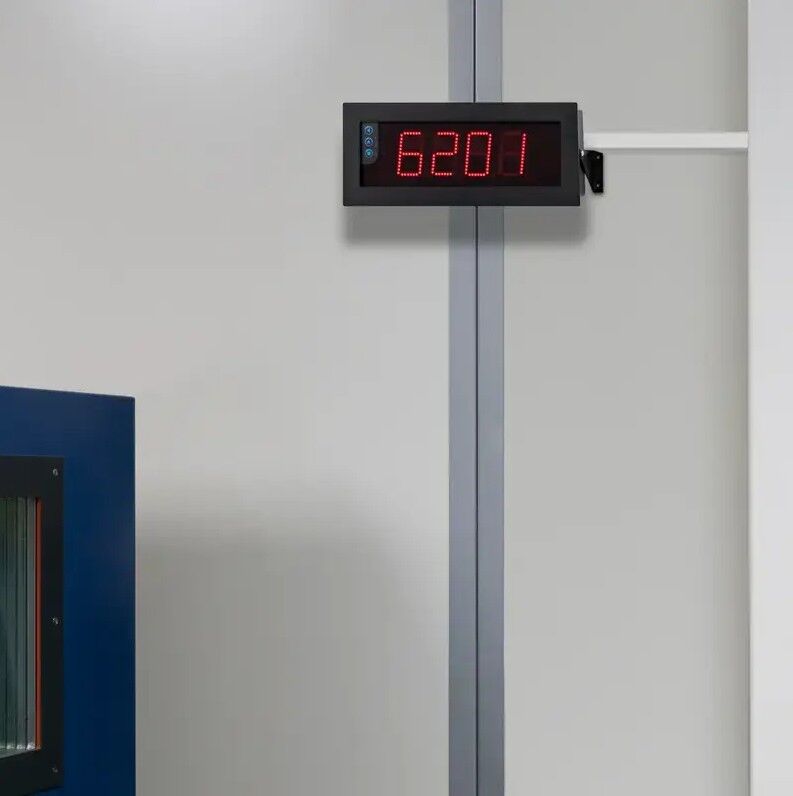

Installation flexibility is a key strength: the display can be wall-mounted or panel-mounted, with a vertical adjustment system for optimal alignment. The enclosure insulation provides additional protection against moisture infiltration, ensuring long-term reliability in any operating condition.
Particularly suitable for production plants, control systems and industrial environments requiring durability and immediate data visibility, this display combines high technical performance with remarkable versatility.
Features:
- Protection class IP65
- Robust metal housing
- Individually parameterizable
- Bright red LED indicator
- For wall or control cabinet mounting
- Different input signals
Delivery scope:
1 x Panel Meter PCE-BPD-U-46A
1 x Instruction Manual
