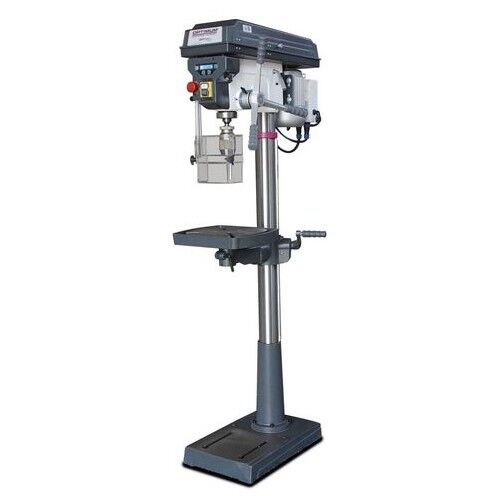

OPTIMUM 058OP3030 Bench and column drill, V-belt drive, max drilling capacity on steel Ø25 mm, 400 V, model D 26Pro, 750W
(Incl. Tax: €1,402.02)
The D 26Pro bench and column drill is designed for precision work on steel and other hard materials. Equipped with a powerful silent motor, it offers high rotation accuracy with a tolerance of ≤ 0.02 mm. The depth adjustment and integrated digital display allow for precise operations. The tiltable and 360° rotatable work table enhances versatility, while the safety switch protection ensures reliability. The robust structure and reinforced base reduce vibrations, ensuring durability and comfort even during intensive use.
Accessories included:
Cone attachment MT3 - B16,
Self-tightening chuck mm 3-16 B16.
T-shaped data.
The D 26Pro bench and column drill is a versatile tool designed to meet the precision demands of professional and industrial environments. Its powerful and quiet motor makes it ideal for drilling on hard materials such as steel, and its ability to ensure incredible rotational concentricity (≤ 0.02 mm) makes it indispensable for professionals who require extremely precise results. It is widely used in mechanical workshops, prototyping laboratories, and companies producing components for the automotive, construction, and aerospace industries, where precise and fast drilling is essential.
Technical data:
| Motor power ~ 50 Hz | 750 W |
| Maximum drilling capacity on steel (S235JR) | 25 Ø mm |
| Maximum continuous drilling capacity on steel (S235JR) | 20 Ø mm |
| Stroke of the column | 85 mm |
| Spindle chuck | MT3 |
| Distance between chuck/column | 210 mm |
| Chuck speed | 200 – 2440 rpm |
| Number of speeds | 12 |
| Table dimensions | 330x290 mm |
| T-slot dimensions | 14 mm |
| Drill table tiltable/rotatable | ± 90° / 360° |
| Maximum distance chuck/table | 720 mm |
| Base dimensions | 385x260 mm |
| Dimensions / No. / Distance of T-slots in the base | 16 mm / 2 mm / 170 mm |
| Max distance chuck/base | 1230 mm |
| Column diameter | 80 Ø mm |
| Dimensions | 670x355x1640 mm |
| Net weight | 85 Kg |
Professionals in these fields, such as mechanics, blacksmiths, technicians, and workshop operators, use this drill to perform drilling operations with different depths, which can be controlled via an adjustable stop and a digital display showing the drilling depth in real-time. The ability to easily adjust the workbench position, which can be tilted up to 90° or rotated 360°, allows for complex operations on a wide range of pieces with various shapes and sizes. This versatility makes the D 26Pro ideal for operations on non-standard components, such as those with grooves or special angles.
The drill is also equipped with advanced safety features, making it safe and easy to use, even for less experienced operators. Thanks to its robust design, with a reinforced base that reduces vibrations and a self-tightening chuck that ensures secure tool clamping, the D 26Pro delivers high and lasting performance. Its features make it perfect for tasks that require high precision, such as prototype manufacturing, maintenance, and the creation of high-quality mechanical components. The motor's quiet operation also contributes to a more comfortable working environment, especially in busy workshops or workplaces.
Overall, the D 26Pro is an ideal choice for modern workshops, where performance, precision, and safety are a priority. Its reliability makes it a machine suitable for intensive, daily use, capable of handling a wide range of drilling tasks, from production to maintenance.
- Brand:
- OPTIMUM
- Application:
- 380-400V Three Phase
- EAN Code:
- 8032819382154
- Typology:
- Drill press
- Power:
- 750 W
