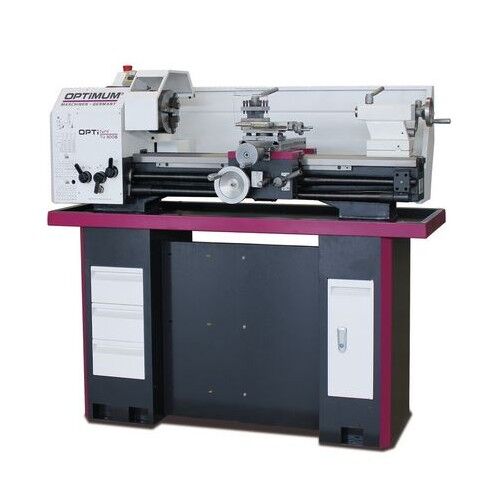

OPTIMUM 050OP7210 Lathe with Longitudinal and Cross Feed 400V, bar passage 38mm, Motor Power 1.5 kW, Center Height 158mm, Distance Between Centers 720mm - Model TU 3008 G
(Incl. Tax: €6,265.55)

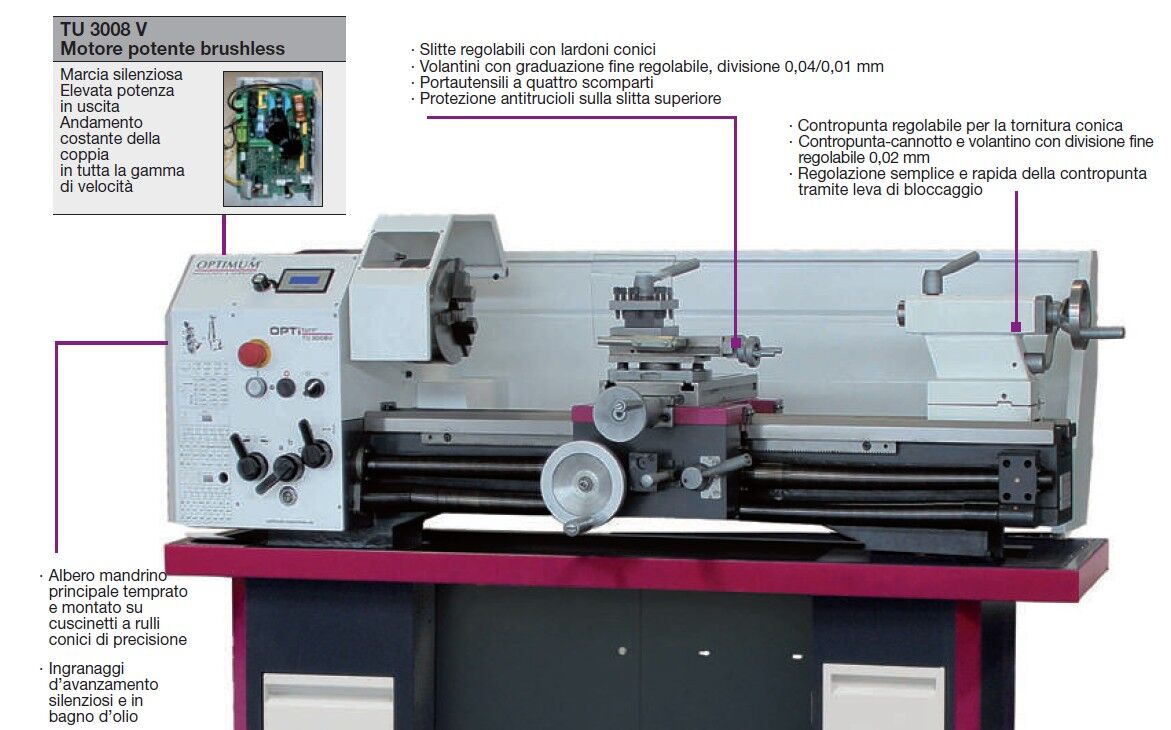

The TU3008 G lathe for do it your self is designed to ensure precision and reliability in the processing of various materials. The gray cast iron prismatic bed is reinforced and induction-hardened, providing a solid working base. The concentric rotation accuracy of the spindle nose is less than 0.009 mm, while the self-centering accuracy is 0.04 mm, ensuring high-quality work. The lathe features left-right rotation, automatic longitudinal and transverse feed, and a leadscrew for threading. The self-centering protection and the threading gear sets ensure safe and precise operations.
ACCESSORIES SUPPLIED:
· 3-jaw chuck Ø 160 mm
· MT3, MT5 fixed tailstocks
· 4-compartment tool holder
· Gearbox set
· Service spanners
The TU3008 G lathe is a professional tool designed to meet the needs of artisans, precision mechanics, and skilled hobbyists. Built with a reinforced prismatic cast iron bed, induction hardened and ground, it ensures optimal stability and precision when working with metals, wood, and plastics. With a concentric rotation precision of ≤ 0.009 mm at the spindle nose, this lathe is perfect for high-precision operations such as machining mechanical components, creating prototypes, or crafting custom parts for small-scale production.
TECHNICAL DATA:
| Motor power ~ 50 Hz | 1,5 kW |
| Height of tips | 158 mm |
| Distance between centres | 720 mm |
| Swing diameter above machine bed | 310 mm |
| Swing diameter above planing slide | 190 mm |
| Bed width | 180 mm |
| Speed range | 165 - 2400 rpm |
| Number of gears | 6 |
| Spindle chuck | Camlock DIN ISO 702-2 n. 4 |
| Spindle cone | MT5 |
| Spindle bore/rod passage | 38 Ø mm |
| Travel upper slide | 65 mm |
| Travel cross slide | 150 mm |
| Longitudinal feed range | 0,085 - 0,832 mm/giro |
| Flat feed range | 0,01 - 0,1 mm/giro |
| Metric pitch | 0,2 - 3,5 mm/giro |
| Imperial pitch | 56 - 8 Gg/1" |
| Four-compartment tool holder attachment height | 25 mm |
| Chuck | MT3 |
| Quill stroke | 70 mm |

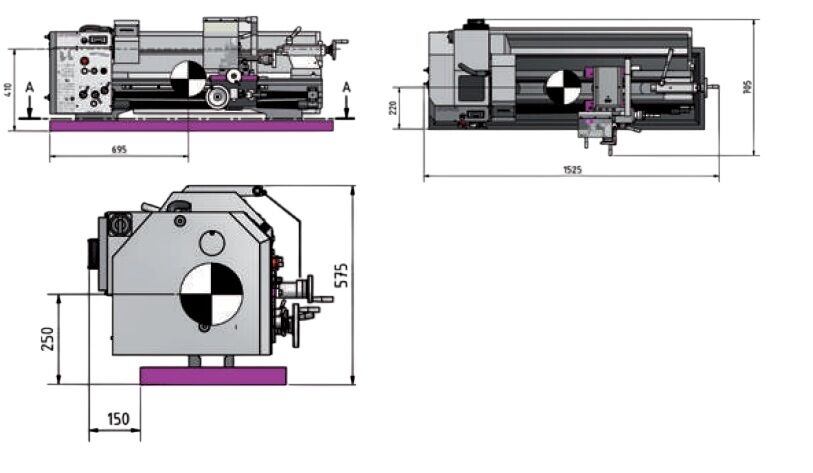

| Dimensions | 1525x705x575 mm |
| Weight approx. | 260 Kg |
The lathe is equipped with a leadscrew for automatic threading and longitudinal turning, making the process even simpler, with automatic longitudinal and transverse feed. This function is particularly useful for repetitive or complex tasks, improving operational efficiency. The gear set for threading and thrust bearing ensure smooth and silent operation, with long-lasting durability. The self-centering protection and the easily engageable right-left rotation from the control panel add versatility and safety, while the gear set allows for adaptation to various machining needs.
The robust design and high-quality construction, in compliance with CE directives, give the TU3008 G a long operational life. It is ideal for professionals and small workshops seeking a compact yet powerful lathe for turning and machining small-scale projects, consistently delivering precise and reliable results.
* The above data are not binding and may be changed at the manufacturer's discretion.
- Brand:
- OPTIMUM
- Application:
- 380-400V Three Phase
- EAN Code:
- 8032819372988
- Typology:
- Lathe
- Power:
- 1.1 kW
