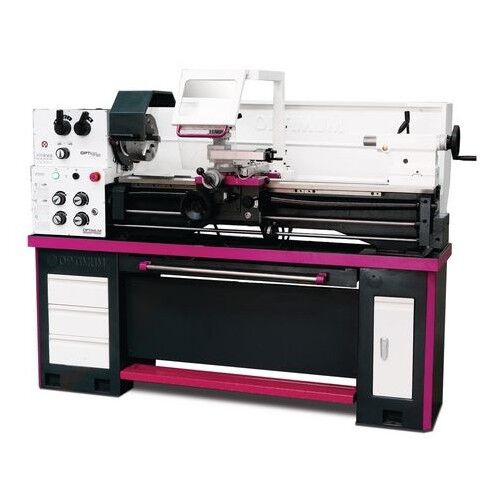

OPTIMUM 050OP2050 Precision Lathe 400V, motor power 1.5 kW, center height 180mm, distance between centers 980mm - Model TH 3610

OPTIMUM 050OP2050 Precision Lathe 400V, bar passage 52mm, motor power 1.5 kW, center height 180mm, distance between centers 980mm - Model TH 3610

In stock
SKU
OPT050OP2050
Special Price €9,951.52 Regular Price €12,136.00
(Incl. Tax: €12,140.85)

The precision parallel lathe TH 3610 features tempered and ground bedways for greater durability and precision. The concentric rotation of the spindle nose has a tolerance of ≤ 0.015 mm. The gears and shafts of the gearbox are hardened, ground, and mounted on precision bearings in an oil bath. It includes a lockable main switch, selectable right-left rotation via a lever, a leadscrew guard, a foot-operated emergency stop, and safety handwheels with disengagement for the X and Z axes.

ACCESSORIES SUPPLIED:

· Reduction collar CM6 / CM3
· 2 fixed tailstocks CM3
· Fixed steady rest max Ø 100 mm
· Mobile steady rest max Ø 95 m
· 4-compartment tool holder
· LED machine lam
· Gear change set
· Service keys
· Self-centering chuck not included



The Optimum TH 3610 precision parallel lathe is a versatile machine tool widely used in professional environments requiring high-precision metalworking. It is essential for turners, precision mechanics, artisans, and companies in the metalworking sector producing custom components or working on prototypes. With a rotation precision of the spindle nose within 0.015 mm, the TH 3610 is ideal for manufacturing shafts, bushings, flanges, and other mechanical parts with tight tolerances.

TECHNICAL DATA:

Motor power ~ 50 Hz 1.5 kW
Center height 180 mm
Distance between centers 980 mm
Ø turnable over machine bed 356 mm
Ø turnable in the gap 516 mm
Gap width 160 mm
Bed width 187 mm
Spindle speed 70 - 2000 rpm
Number of speeds 8
Spindle mount Camlock DIN ISO 702-2 No. 5
Spindle taper MT6
Bar passage 52 Ø mm
Top slide travel 100 mm
Cross slide travel 170 mm
Longitudinal feed (32) 0.052 - 1.392
Cross feed (32) 0.014 - 0.38
Metric thread pitch (26) 0.4 - 7 mm/rev
Imperial thread pitch (34) 56 - 4 TPI
Tailstock taper MT3
Tailstock diameter 42 mm
Tailstock quill travel 120 mm
Height of four-way tool post 16x16 mm
Dimensions 1930x725x1350 (DPA 1620) mm
Net weight 610 kg

Its eight adjustable speeds, ranging from 70 to 2,000 revolutions per minute, adapt perfectly to various materials such as steel, aluminum, bronze, and others, ensuring optimal finishing. The three-phase motor with a power of 1500 W provides sufficient strength even for complex machining on large workpieces. Internal mechanisms like hardened and ground gearbox gears and shafts, mounted on precision bearings in an oil bath, ensure long service life and reliable operation, even in intensive production environments.

Workshop professionals value the ability to reverse spindle rotation using a lever on the apron, a feature particularly useful for threading or correcting errors without removing the workpiece. The lead screw cover protects internal mechanisms from dust and debris, reducing maintenance time. Advanced safety features, including a lockable main switch and a pedal-operated emergency stop, make this machine compliant with modern standards and safe for less experienced operators.

The built-in LED lamp in the turret guard provides perfect visibility on the workpiece, facilitating complex machining even in low-light conditions. The robustness of the bed, induction hardened and precision-ground, ensures stability during use, while the safety disengagement handwheels for X and Z axes improve operator ergonomics and safety.

The lathe comes with a range of accessories, such as fixed and traveling steadies, useful for working on long or thin pieces requiring extra support, and a set of gears for threading adjustment. While designed for industrial use, it is also suitable for artisan workshops or technical schools where future machine operators are trained. The absence of a chuck in the standard configuration allows users to select the most suitable model for their needs.


* The above data are not binding and may be changed at the manufacturer's discretion.
Brand:
OPTIMUM
Application:
380-400V Three Phase
EAN Code:
8032819370472
Typology:
Lathe
Power:
1.5 kW
