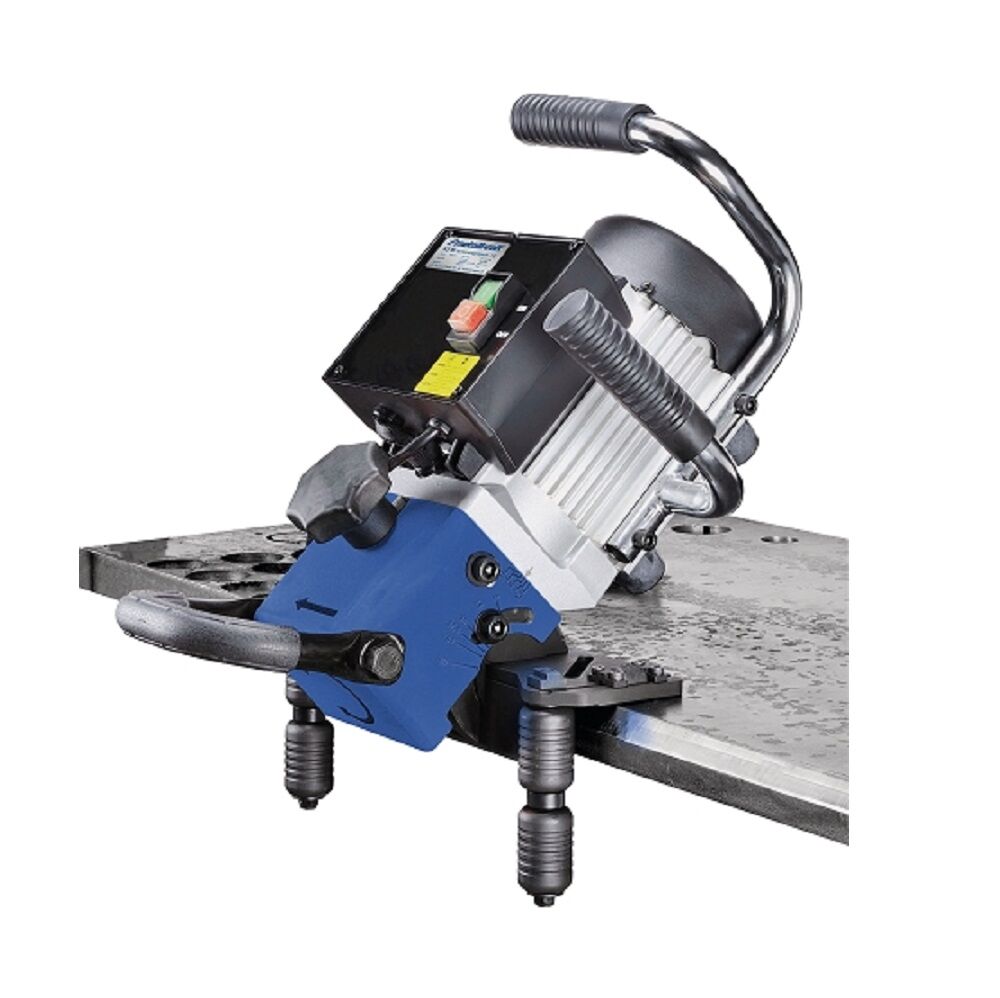

METALLKRAFT 3990017 Edge deburrer for visible edges and weld preparation with stepless angle adjustment - Model KE 16-2
In stock
SKU
MET3990017
Special Price
€1,671.10
Regular Price
€1,966.00
(Incl. Tax: €2,038.74)
(Incl. Tax: €2,038.74)
- Excellent for producing clean visible edges and weld preparation
- For machining steel and aluminum

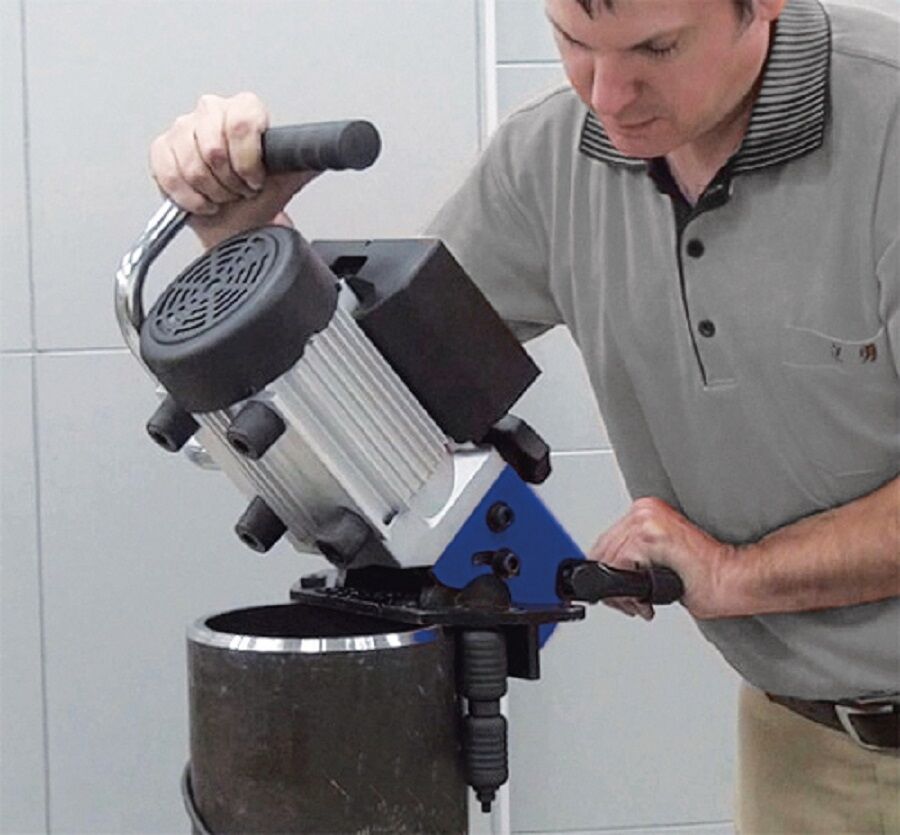

- Due to adjustable guide rollers on the support table also suitable for deburring of tubes with Ø 150 - 350 mm (optional 300 - 600 mm)
- Setting the chamfer height without tools
- Stepless angle adjustment from 0 - 60 °
- Handy and powerful device
- With two 6-way insert holders
- Feed is done manually
- For machining steel and aluminum
- Due to adjustable guide rollers on the support table also suitable for deburring of tubes with Ø 150 - 350 mm (optional 300 - 600 mm)
- Setting the chamfer height without tools
- Stepless angle adjustment from 0 - 60 °
- Handy and powerful device
- With two 6-way insert holders
- Feed is done manually
TECHNICAL DATA:

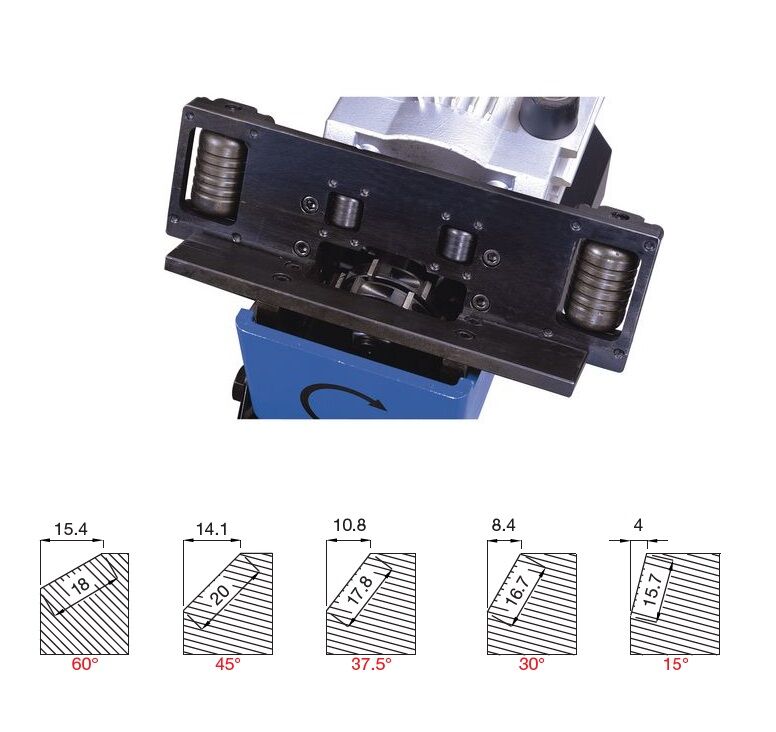

Bevel angle: 15°-30°-37.5°-45°-60°
Bevel width at 15°: 15.7 mm
30° bevel width: 16.7 mm
Bevel width 37.5°: 17.8 mm
Bevel width 45°: 20 mm
60° bevel width: 18 mm
Tube diameter: 150-350 mm (300-600 mm on request)
Motor power: 1100 W
Motor voltage: 230V/50Hz
Continuously variable speed: 3000 rpm
Dimensions: 503x350x248 mm
Weight: 20.1 kg
Bevel angle: 15°-30°-37.5°-45°-60°
Bevel width at 15°: 15.7 mm
30° bevel width: 16.7 mm
Bevel width 37.5°: 17.8 mm
Bevel width 45°: 20 mm
60° bevel width: 18 mm
Tube diameter: 150-350 mm (300-600 mm on request)
Motor power: 1100 W
Motor voltage: 230V/50Hz
Continuously variable speed: 3000 rpm
Dimensions: 503x350x248 mm
Weight: 20.1 kg
STANDARD EQUIPMENT:
· Plastic case
· 2 x 6-fold blanking die holder
· 1 kit with 12 cutting inserts
· Tool kit
· Front handle
· Plastic case
· 2 x 6-fold blanking die holder
· 1 kit with 12 cutting inserts
· Tool kit
· Front handle
- Brand:
- METALLKRAFT
- EAN Code:
- 4036351222200
- Typology:
- Chamfering machine
