ISO.H100.ERCM GAETANO CAPORALI Set of ER Collet chuck with mini clamping nut DIN ISO 15488 (DIN6499) with coolant passage in the central hole of the taper, shank ISO DIN 2080 and ER collet size of choice
In stock
Only %1 left
SKU
CA-ISO.H100.ERCM
As low as
€57.42
Regular Price
€63.80
(Incl. Tax: €70.05)
(Incl. Tax: €70.05)
The ER collet chuck with mini nut DIN ISO 15488 is an essential component for tool clamping and management in machine tools. This device securely accommodates ER collets, which are available in various sizes, for use in milling and turning operations. The through-coolant feature via the central bore enhances tool cooling, improving efficiency and reducing wear. When mounted on CNC machines, this chuck is employed across multiple industries, including precision engineering, automotive, and aerospace, where high accuracy and reliability are critical. Its compliance with ISO standards ensures quality and compatibility with a wide range of equipment.
Supplied with mini clamping nut
ER Collet Chuck Holders with DIN 2080 Taper – Compact Version with Mini Nut.
Collet chucks designed for DIN 2080 taper shanks, compatible with various sizes of ER collets, particularly with mini nuts to reduce the front footprint. These chucks feature a central coolant channel that enhances tool cooling and chip evacuation, especially useful for internal machining operations.
The use of miniature nuts helps minimize the external dimensions. Available in multiple lengths and ER collet sizes, they can be selected according to the machining needs. Widely appreciated for their flexibility and cost-effectiveness, these holders allow quick tool changes by simply replacing the ER collet, capable of clamping a wide range of shank diameters.
Thanks to a broad range of lengths, users can select the right chuck to avoid interference with the workpiece and to ensure sufficient rigidity. All chucks are balanced to G6.3 and support speeds of up to 18,000 RPM.
For any dimensional, technical, or precision-related questions, the TADAAH technical team is ready to support you. Contact us for further information or tailored advice.
| ER collet model | Collets range |
| ER11 | 1÷7 mm |
| ER16 | 1÷10 mm |
| ER20 | 1÷14 mm |
| ER25 | 1÷20 mm |
- Brand:
- GAETANO CAPORALI
- EAN Code:
- ISO40 DIN 2080
- Typology:
- ER with mini ring nut

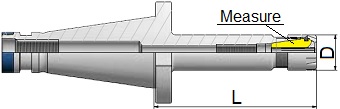

- Lengt "L":
- 100mm
