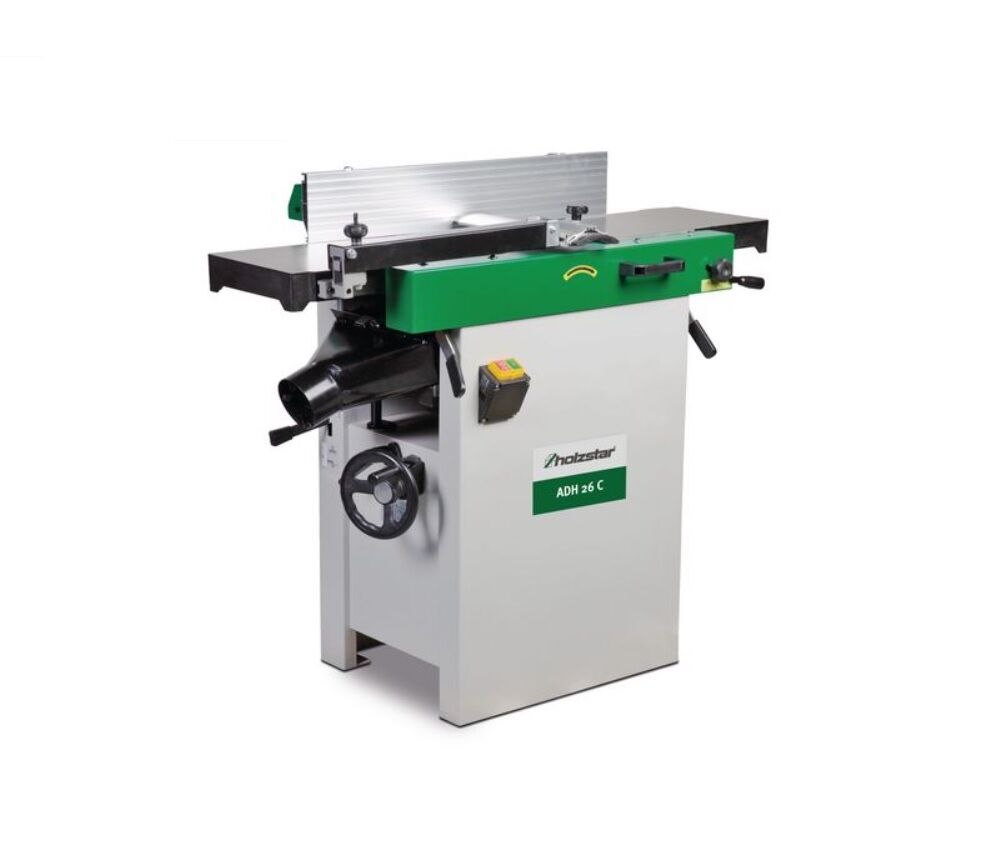

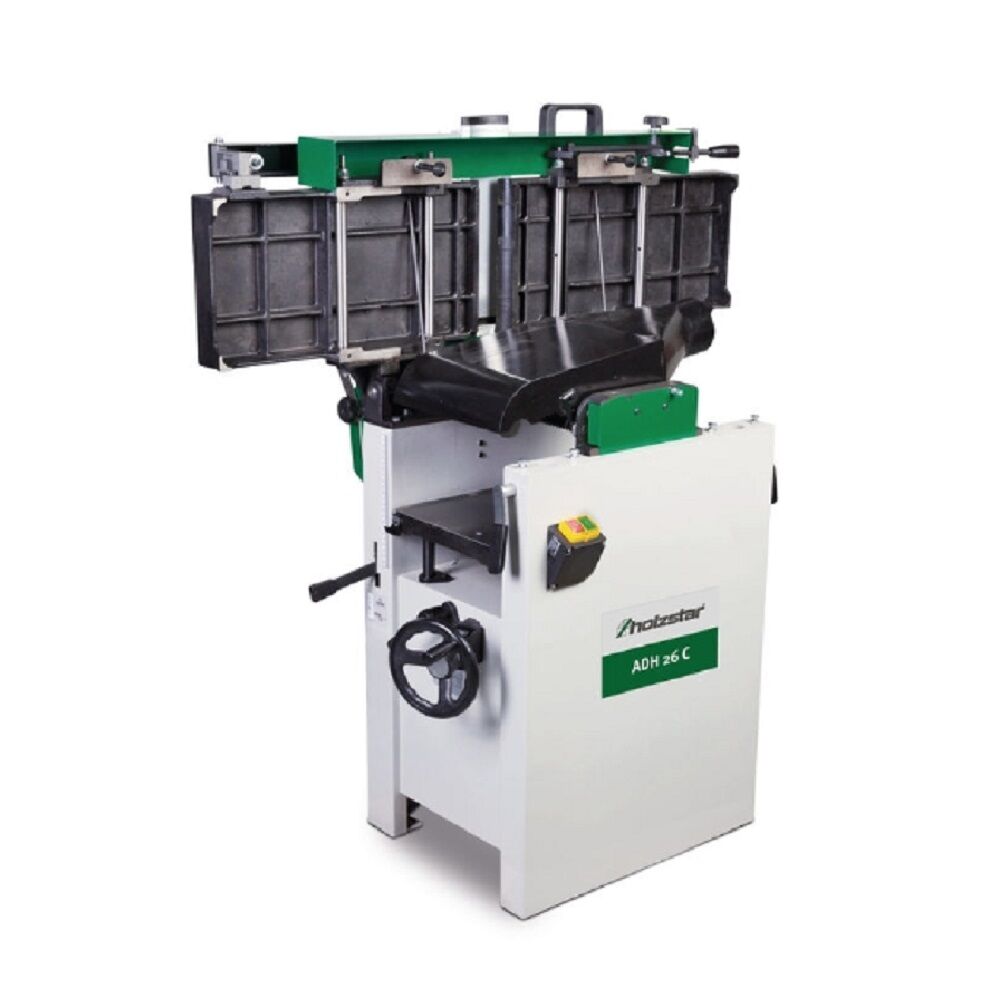

HOLZSTAR 5904027 Combi planer - Model ADH 26C - Surface and thickness planer

HOLZSTAR 5904027 Combi planer - Model ADH 26C - Surface and thickness planer, 400 V

In stock
SKU
HOL5904027
Special Price €1,934.60 Regular Price €2,276.00
(Incl. Tax: €2,360.21)

- Suitable for small spaces and perfect for the hobby sector
- For making 90° joints and precise planing of solid wood, boards, planks and panels
- Quick and easy adjustment of the feed rate to an accuracy of up to 3 mm
- Automatic workpiece feed
- Rubberized exit roller preserves the surface when planing
- Fixed aluminium guide tilting from 90° to 45° easily adjustable. The inclination can be easily read on the graduated scale
- Large planing table made of die-cast aluminium reinforced with nerva¬tures
- Blade shaft with 2 HSS knives
- Large cast iron moving table with ground surface, mounted on 4 bearings
- Table adjustment via hand wheel, scale and numeric display
- Emergency switch
- The integrated dust extraction hood ensures a clear view during planing preparation and can be used for both surfacing and thicknessing operations.
- Swarf removal adjustment via control lever

Fixed table dimensions: 1120x275 mm
Mobile table dimensions: 545x258 mm
Max. workpiece width: 258 mm
Max. workpiece height: 830 mm
Max. removal rate: 3 mm
Number of knives: 3
Shaft Ø: 70 mm
Shaft speed: 5200 rpm
Feed speed: 5.5 m/min
Suction hose Ø: 100 mm
Motor power 50 Hz: 1.7 kW
Max dimensions: 1120x630x960 mm
Weight: 170 Kg

Brand:
HOLZSTAR
Application:
380-400V Three Phase
EAN Code:
4036351248910
Typology:
Combi planer
Power:
1.7 kW
