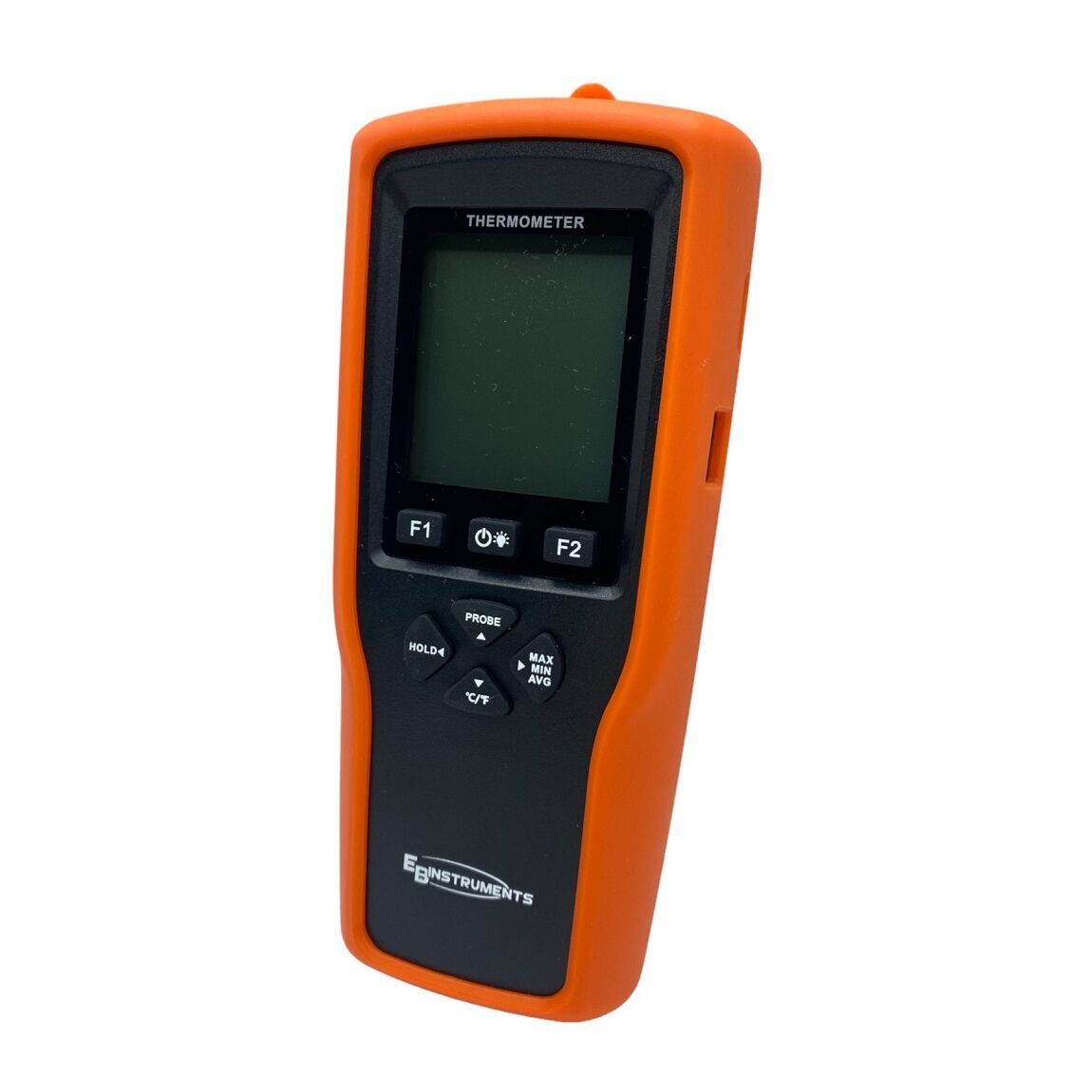

EB Instruments DTC11 Digital industrial thermometer for type K/J/T thermocouples with datalogger and backlit LCD display

In stock

SKU

EB-DTC11

Special Price €135.00 Regular Price €150.00
(Incl. Tax: €164.70)

The industrial thermocouple thermometer model DTC11 offers maximum versatility for all industries. Equipped with a single input for thermocouple types K, J, T with miniature connector, it supports the data logger function for up to 20,000 data points with selectable acquisition times. The mini USB output allows data export in TXT, CSV and XLS formats. The backlit LCD display shows the measured value, graphical trend, minimum, maximum and average reading. Includes calibration and alignment functions on points of your choice. Supplied with hard case, 3 alkaline batteries, mini USB cable and rubber protection cover. Thermocouples are ordered separately.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details
More Information

Measuring Ranges	Type K probes: -200°C to +1372°C Type T probes: -200°C to +400°C Type J probes: -200°C to +1200°C
Scale	°C/°F selectable
Resolution	0,01° under 1000°C / 0,1° over 1000°C
Accuracy	< ± (0,3%
Connection	Miniature female input
Operating range	-10°C ÷ +50°C
Protection	IP52
Power supply	3 x 1.5V AAA alkaline batteries or 3 x 1.2V AAA rechargeable batteries
Battery life	200 hours
Dimensions	174x73x40 mm
Weight	198 g

The industrial thermocouple thermometer model DTC11 is a versatile and advanced solution for precise temperature measurement in various industries. Designed for reliability and ease of use, this device features a single input for thermocouple types K, J and T, using a miniaturised connector that ensures a stable and secure connection.

One of the distinguishing features of the DTC11 is the integrated data logger function, which allows up to 20,000 data records with selectable acquisition times. This functionality is particularly useful for continuous monitoring and detailed analysis of temperature variations over time. Recorded data can be easily exported via the mini-USB output in TXT, CSV and XLS formats, facilitating information processing and sharing.

The backlit LCD display gives a clear view of the measured value, together with the graphical trend, minimum, maximum and average values measured. Allowing operators to have a complete and immediate picture of the thermal conditions of the monitored process. In addition, the device includes a calibration and alignment function to optimise the accuracy at specific points on the thermocouple, ensuring maximum measurement precision.

The thermometer comes complete with a hard case for protection during transport and use, 3 alkaline batteries for long-lasting power supply, a mini-USB cable for connection to computers, and a rubber protective shell for added impact resistance.

In summary, the DTC11 thermocouple thermometer is an indispensable tool for professionals who need accurate, reliable and easily manageable temperature measurements.
