CGM S9000DUAL Super power Diesel generator 7.2kW, single-phase / three-phases 230V/400V, with Engine Electric starter and AVR Voltage regulation
(Incl. Tax: €1,930.65)
The SUPER POWER DIESEL range is the perfect combination of high perfomance gensets with an important focus on the gensets noise level. CGM DUAL series genserating sets, 3000 rpm, soundproofed, equipped with air-cooled diesel engines with electric starting system with key and battery. They are equipped with a single-phase / three-phases voltage selector and manual panel with quick connector for an automatic ATS panel.3000 rpm gensets have been designed for stand-by use only. Not recommended using for more than 6 hours continuously or more than 500 hours/year.
- 12 VDC voltage;
- 12 Months warranty all over the World;
TECHNICAL DATA:
| Stand-by Power kW - 400V + N | 7.2 |
| Stand-by Power kVA 400V + N | 9 |
| Stand-by Power kW 230V | 5.6 |
| Stand-by Power kVA 230V | 7 |
| Weight Kg | 162 |
| Dimensions mm | Length=920mm Width=520mm Height=720mm |
| Electrical system type | 3F+N / 1F+N ~ |
| Power factor |
0.8 ϕ |
| Voltage | 230V ~1 |
| Voltage | 400V ~3 |
| Frequency | 50 Hz |
| Ampere rating | 25.2 A @ 230V |
| Ampere rating | 11.4 A @ 400V |
| Engine | CGM D12HP |
| Engine emissions standards | STAGE V |
| Engine power | 12 (9) Hp (kW) |
| Rpm | 3000 |
| No. of cylinders | 1 |
| Engine starting system | Electric starter |
| Displacement | 498 cc |
| Fuel type | Diesel |
| Consumption | 2.1 lt/h @ 75% |
| Tank capacity | 14 lt |
| Autonomy | 6.7 h |
| Type | Self-excited, with brushes |
| Voltage regulation | Voltage stabiliser (AVR) |
| Voltage precision | ± 1 % |

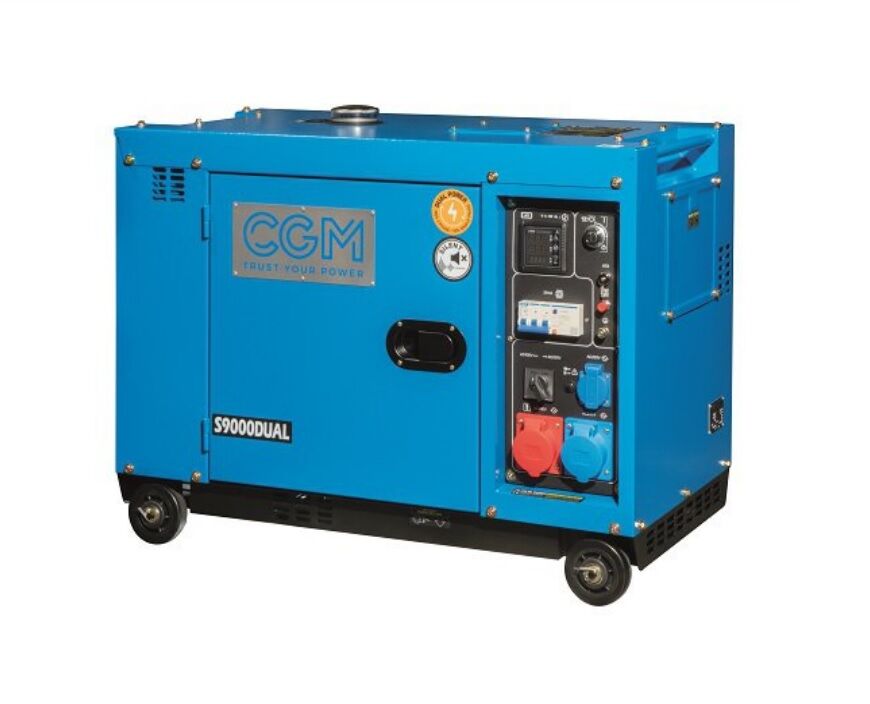

The image is only f or demonstration purposes. All data can be found out in the original technical datasheet of the engine and the alternator.
Values shown are nominal values, they can change in every moment and without warning.
- Typology:
- Diesel generator
- Application:
- 220-240V Single-phase, 380-400V Three Phase
- Brand:
- C.G.M Gruppi Elettrogeni srl
- Power:
- 7.2 kW
