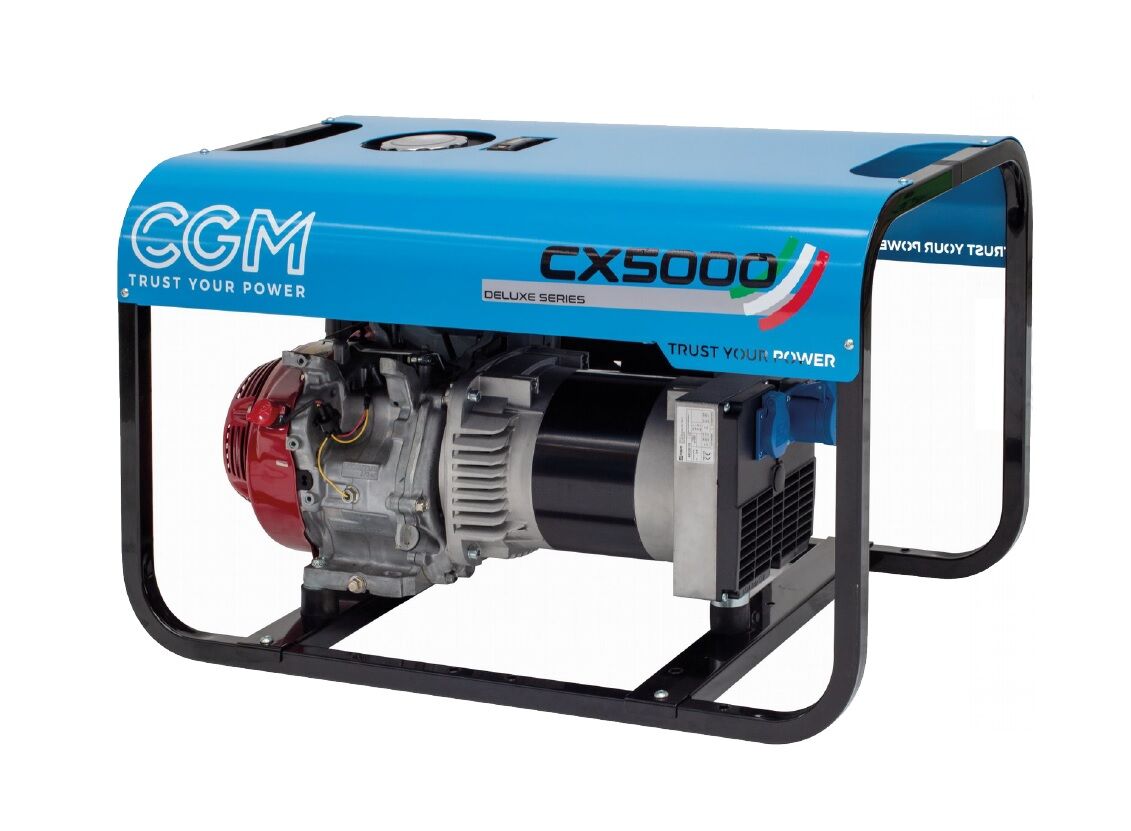

CGM CX5000 Portable petrol current generator 4.5kW with protective cover, single-phase 230V, with recoil starter system and AVR voltage stabiliser
(Incl. Tax: €1,610.40)
CGM CLASSIC series gensets with gasoline engine, 3000 rpm, light, compact and easy to use, mounted on fixed base frame with anti-vibration dampers. The DELUXE series represents a more complete evolution of the Classic series. These generators come standard with the 15 litre bigger tank, the protection cover and the voltage stabiliser (AVR). These generating sets could adapt easily in every situation like houses, campings, hobby, yards etc. 3000 rpm gensets have been designed for stand-by use only. Not recommended using for more than 6 hours continuously or more than 500 hours/year.
Features:
- Honda engine;
- Starting with rope;
- Bigger 15lt tank;
- Protective cover;
- Italian alternators;
- Voltage stabiliser (AVR).
- 12-month warranty worldwide
- The quality of a generating set completely designed and produced in Italy
TECHNICAL DATA:
| Prime Power kVA | 5 |
| Prime Power kW | 4,5 |
| Stand-by power kVA | 5,5 |
| Stand-by power kW | 4,95 |
| Weight Kg | 66 |
| Dimensions mm | Length=825mm Width=550mm Height=530mm |
| Electrical system type | 1F+N ~ |
| Power factor | 0,9 ϕ |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Ampere rating | 24 A |
| Engine | HONDA GX270 |
| Engine emissions standards | STAGE V |
| Engine power | 6,2 (4,6) Hp (kW) |
| Rpm | 3000 |
| No. of cylinders | 1 |
| Engine starting system | Recoil starter |
| Displacement | 270 cc |
| Fuel type | Petrol |
| Consumption | 1,6 lt/h @ 75% |
| Tank capacity | 15 lt |
| Autonomy | 9,4 h |
| Alternator | LINZ ELECTRIC – NSM MADE IN ITALY |
| Type | Self-excited, with brushes |
| Voltage regulation | Voltage stabiliser (AVR) |
| Voltage precision | ± 2 % |
The image is only f or demonstration purposes. All data can be found out in the original technical datasheet of the engine and the alternator.
Values shown are nominal values, they can change in every moment and without warning.
- Typology:
- Gasoline Generator
- Application:
- 220-240V Single-phase
- Brand:
- C.G.M Gruppi Elettrogeni srl
- Power:
- 4.5 kW
