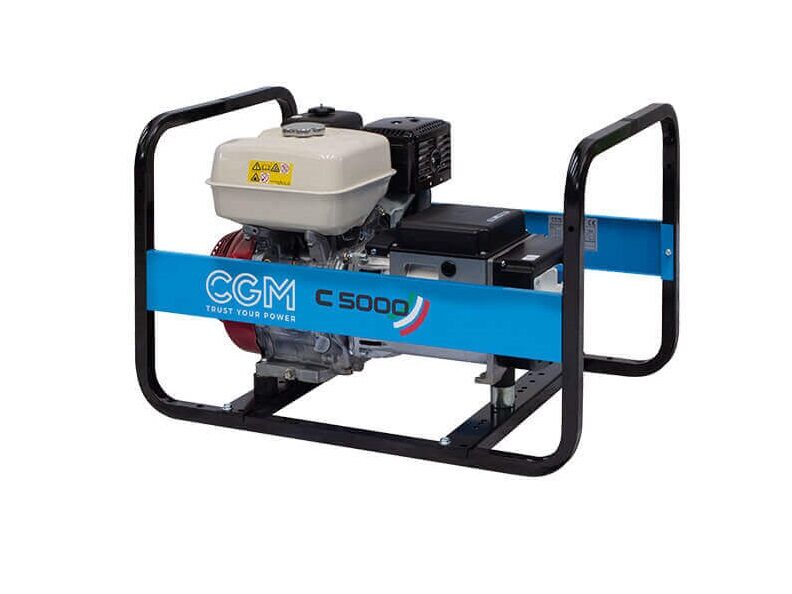

CGM C5000E Portable petrol current generator 4.5kW, single-phase 230V, with Engine starting system and AVR voltage stabiliser
(Incl. Tax: €1,948.95)
CGM CLASSIC series gensets with gasoline engine, 3000 rpm, light, compact and easy to use, mounted on fixed base frame with anti-vibration dampers. These generating sets could adapt easily in every situation like houses, campings, hobby, yards etc. 3000 rpm gensets have been designed for stand-by use only. Not recommended using for more than 6 hours continuously or more than 500 hours/year.
Features:
- 4 stroke Honda engine;
- Starting with rope;
- Italian alternators;
- The lightest and most compact of the range;
- Voltage stabiliser (AVR).
- 12-month warranty worldwide
- The quality of a generating set completely designed and produced in Italy
TECHNICAL DATA:
| Prime Power kVA | 5 |
| Prime Power kW | 4,5 |
| Stand-by power kVA | 5,5 |
| Stand-by power kW | 4,95 |
| Weight Kg | 58 |
| Dimensions mm | Length=780mm Width=510mm Height=500mm |
| Electrical system type | 1F+N ~ |
| Power factor | 0,9 ϕ |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Ampere rating | 24 A |
| Engine | HONDA GX270 |
| Engine emissions standards | STAGE V |
| Engine power | 6,2 (4,6) Hp (kW) |
| Rpm | 3000 |
| No. of cylinders | 1 |
| Engine starting system | Engine starting system |
| Displacement | 270 cc |
| Fuel type | Petrol |
| Consumption | 1,6 lt/h @ 75% |
| Tank capacity | 5,3 lt |
| Autonomy | 3,3 h |
| Alternator | LINZ ELECTRIC – NSM MADE IN ITALY |
| Type | Self-excited, with brushes |
| Voltage regulation | Voltage stabiliser (AVR) |
| Voltage precision | ± 5 % |
The image is only f or demonstration purposes. All data can be found out in the original technical datasheet of the engine and the alternator.
Values shown are nominal values, they can change in every moment and without warning.
- Typology:
- Gasoline Generator
- Application:
- 220-240V Single-phase
- Brand:
- C.G.M Gruppi Elettrogeni srl
- Power:
- 4.5 kW
