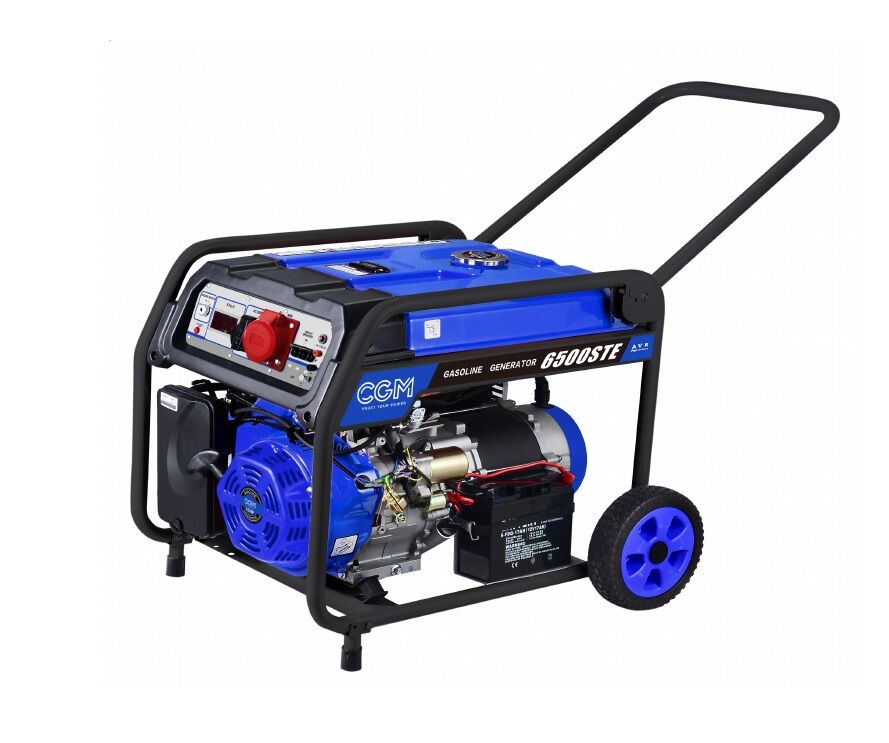

C.G.M 6500STE Portable petrol super power generator 5.2kW with handling trolley, 400V, Electric starter system and AVR voltage stabiliser
(Incl. Tax: €704.55)
The SUPER POWER range is a high quality level generators’ series that guarantees a high level of reliability. The strength points of this range are: high level of features, lightness, compactness, easy operation and also modern design. CGM SUPER POWER series gensets with gasoline engine, 3000 rpm, light and compact, with high autonomy fuel tank. These generating sets could be adopted easily in every situation like houses, campings, hobby etc. 3000 rpm gensets have been designed for stand-by use only. Not recommended using for more than 6 hours continuously or more than 500 hours/year

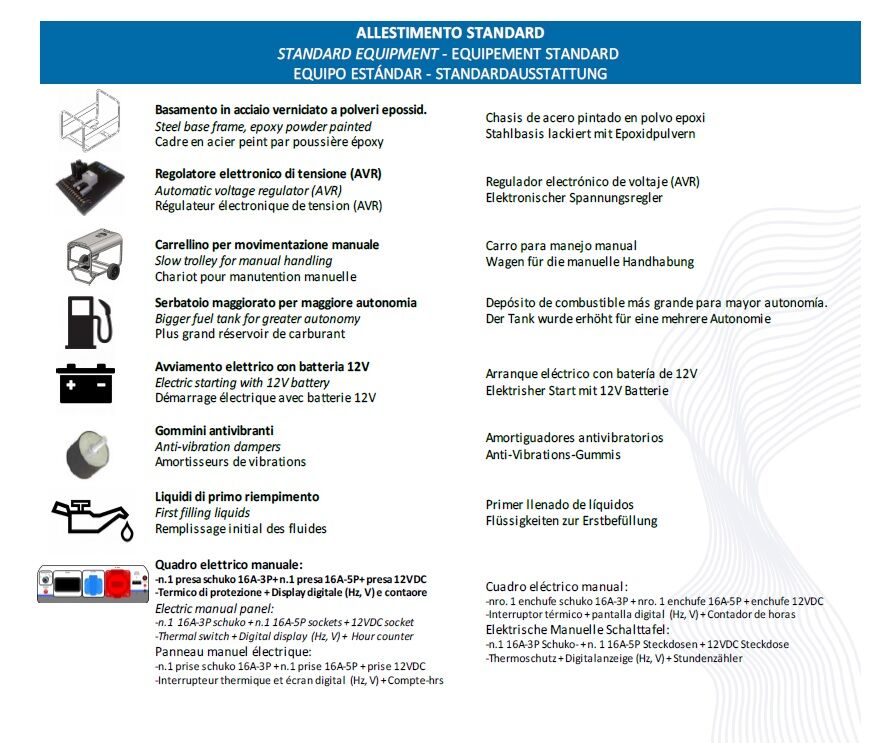

Features:
- AVR;
- Splash-proof protection cover;
- Hourmeter;
- Bigger tank;
- Ergonomic trailer;
- Copper alternator;
- 12 Months warranty all over the World;
- Quality of a genset completely designed and manufactured in Italy.
TECHNICAL DATA:
| Power Rated kW | 5.2 |
| Power MAX kW | 5.7 |
| Weight Kg | 87 |
| Dimensions mm | Length=700mm Width=530mm Height=580mm |
| Electrical system type | 1F+N ~ |
| Power factor | 1 ϕ |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Ampere rating | 9 A |
| Engine | CGM 15HP |
| Engine emissions standards | STAGE V |
| Engine power | 8.04 (6) Hp (kW) |
| Rpm | 3000 |
| No. of cylinders | 1 |
| Engine starting system | Electric starter |
| Displacement | 420 cc |
| Fuel type | Petrol |
| Consumption | 2.4 lt/h @ 75% |
| Tank capacity | 33 lt |
| Autonomy | 13.8 h |
| Type | Self-excited, with brushes |
| Voltage regulation | Voltage stabiliser (AVR) |
| Voltage precision | ± 1 % |
The image is only f or demonstration purposes. All data can be found out in the original technical datasheet of the engine and the alternator.
Values shown are nominal values, they can change in every moment and without warning.
- Typology:
- Gasoline Generator
- Application:
- 380-400V Three Phase
- Brand:
- C.G.M Gruppi Elettrogeni srl
- Power:
- 5.2 kW
