PCE Instruments PCE-HWA 30 Flowmeter with data logger and rotating telescopic probe: measures wind speed (0.3-30 m/s), memory for 960 values, software, and Beaufort scale
In stock
SKU
PCE-HWA-30
€270.53
(Incl. Tax: €330.05)
(Incl. Tax: €330.05)
The flowmeter is an advanced instrument for measuring wind speed that uses a hot wire to obtain precise readings. Operating with a measuring range from 0.3 to 30 m/s, it allows monitoring not only the speed but also the flow rate and ambient temperature. The Beaufort scale displays the current wind force, adding value to the measurements. With an internal memory capable of storing up to 960 values, the data can be easily retrieved and transferred to a computer via a micro USB interface. The telescopic probe, 750 mm long and equipped with a rotating head, optimizes the sensor's positioning. The 1000 mAh battery, rechargeable via micro USB, makes the flowmeter particularly suitable for mobile use.
Technical specifications:
| Wind speed | m/s |
| Measuring range | 0.3 - 30.0 m/s |
| Resolution | 0.01 m/s |
| Accuracy | ±3 % ±0.1 m/s of measured value |
| Wind speed | ft/min |
| Measuring range | 60 - 5904 ft/min |
| Resolution | 0.01, 0.1, 1 ft/min |
| Accuracy | ±3 % ±20 ft/min of measured value |
| Wind speed | knots |
| Measuring range | 0.6 - 58.3 knots |
| Resolution | 0.01 knots |
| Accuracy | ±3 % ±0.2 knots of measured value |
| Wind speed | km/h |
| Measuring range | 1.0 - 108.0 km/h |
| Resolution | 0.01 km/h |
| Accuracy | ±3 % ±0.4 km/h of measured value |
| Wind speed | mph |
| Measuring range | 0.7 - 67 mph |
| Resolution | 0.01 mph |
| Accuracy | ±3 % ±0.2 mph of measured value |
| Volume flow | CMM (m³/min) |
| Measuring range | 0 - 999900 m³/min |
| Resolution | 0.001 - 100 m³/min |
| Adjustable area | 0.001 - 999 m² |
| Volume flow | CFM (FT³/min) |
| Measuring range | 0 - 999900 ft³/min |
| Resolution | 0.001 - 100 m³/min |
| Adjustable area | 0.001 - 999 m³ |
| Temperature measurement | °C |
| Measuring range | 0 - 45 °C |
| Resolution | 0.1 °C |
| Accuracy | ±1.0 °C |
| Temperature measurement | °F |
| Measuring range | 32 - 113 °F |
| Resolution | 0.18 °F |
| Accuracy | ±1.8 °F |
| Further specifications | |
| Probe length | 270 - 990 mm / 10.63 - 38.98" |
| Probe diameter | Ø0.8 - 1.2 mm / 0.031 x 0.047" |
| Interface | Micro USB |
| Data memory | 960 measured values |
| Power supply | 3.7 V, 1000 mAh battery |
| 5 V DC, 1 A Micro USB interface | |
| Power consumption | 15 - 35 mA without background lighting |
| 70 - 100 mA with background lighting | |
| Battery discharged display | <3.4 V |
| Operating conditions | 0 - 50 °C / 32 - 122 °F, 40 - 80 % RH, non-condensing |
| Storage conditions | -20 - 60 °C / -4 - 140 °F, < 80 % RH, non-condensing |
| Dimensions | 70 x 194 x 35 mm / 2.7 x 7.6 x 1.3" |
| Weight | 400 g / 14 oz |
The flowmeter is a highly specialized instrument designed for measuring wind speed and its thermal characteristics, essential in many technical, engineering, and professional applications. This device employs innovative technologies and uses a hot wire to detect wind speed accurately and reliably. The measuring range covers values from 0.3 to 30.0 m/s, allowing precise detection under various atmospheric conditions, both indoors and outdoors. In addition to monitoring wind speed, the flowmeter can also measure flow rate and ambient temperature, providing a comprehensive analysis of weather conditions in real time.
One of the distinctive features of this flowmeter is the integration of the Beaufort scale, which provides a clear indication of the current wind force. This scale serves as a useful reference tool for users, facilitating the understanding of weather variations and enabling quick assessments of wind conditions. The internal memory of the flowmeter, capable of storing up to 960 values, allows users to easily save and retrieve readings, making the device extremely practical and useful during analyses.
Thanks to the micro USB interface, the flowmeter offers the capability to transfer data to a computer for more in-depth analysis and the creation of detailed reports. This functionality is particularly advantageous in work environments where data recording and analysis are crucial for monitoring and planning activities.

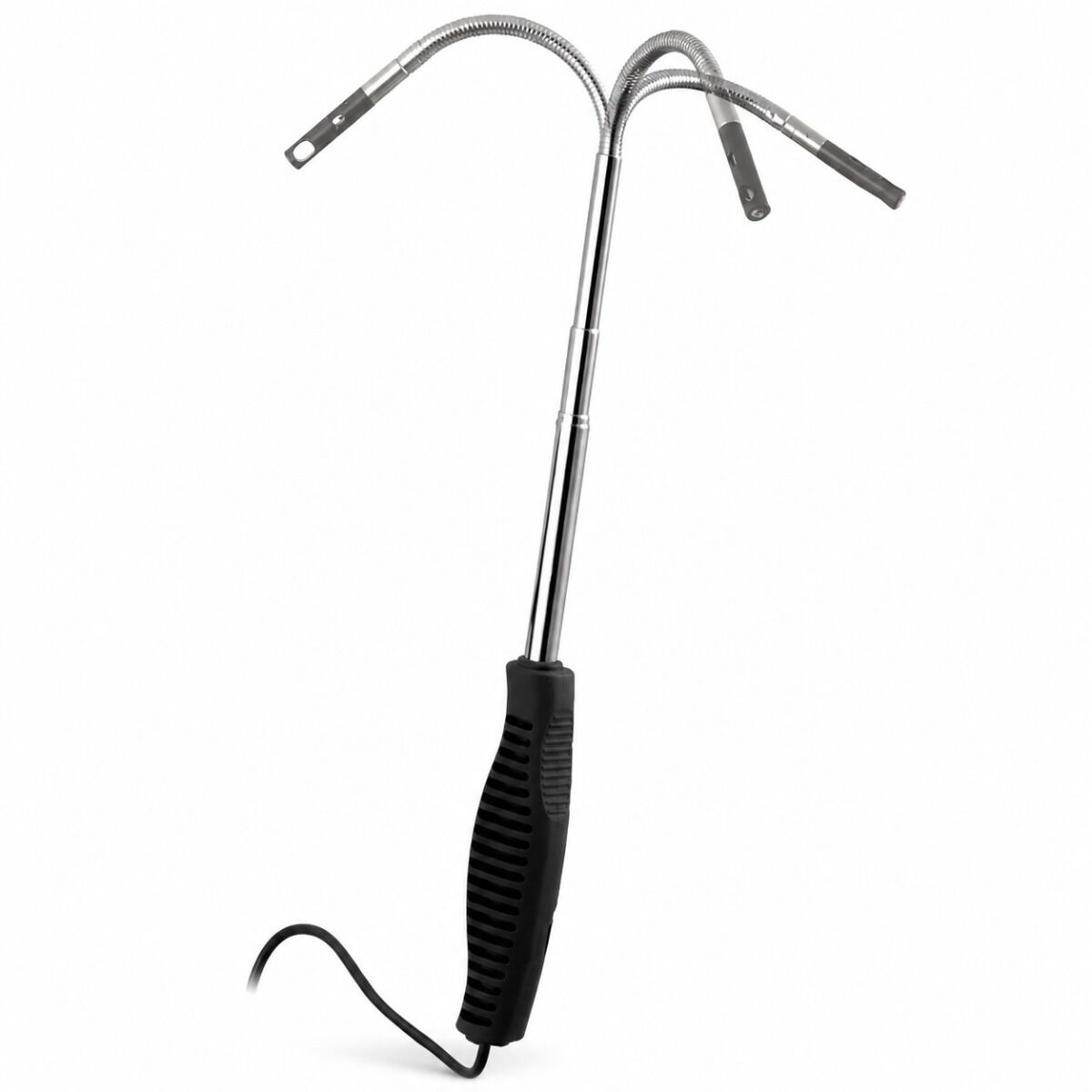

To ensure accurate and reliable measurements, the flowmeter is equipped with an extendable telescopic probe up to 750 mm, featuring a rotating head that facilitates optimal sensor positioning. This design makes the flowmeter extremely versatile and suitable for measurements in challenging situations or confined spaces. The flowmeter's battery, with a capacity of 1000 mAh, is rechargeable via the micro USB interface, ensuring continuous operation and making the device particularly suitable for mobile applications, both in work environments and outdoors.
The flowmeter finds applications across a wide range of sectors. In engineering, for example, it is used for inspections of ventilation systems, analysis of energy performance, and monitoring climatic conditions in construction projects. In agriculture, the flowmeter can be employed to monitor wind conditions in greenhouses or fields, ensuring crops are protected and optimized for healthy growth. Additionally, in the field of meteorology, the flowmeter is a crucial tool for climate assessments and environmental studies, contributing to the understanding of atmospheric dynamics and their implications.
In summary, the flowmeter is an extremely versatile and advanced device capable of providing precise and detailed data on speed, flow rate, and temperature of wind. Whether used for professional, industrial, or research purposes, it is an indispensable tool for monitoring and improving environmental conditions, ensuring safe and efficient operations. Its advanced technology, combined with a practical and functional design, makes it a reference device for anyone needing reliable and detailed measurements in the fields of meteorology and engineering.
Caratteristichs:
- Hot wire anemometer with data storage
- Software for reading out the measured values
- Swiveling telescopic arm
- Measuring range 0.3 - 30.0 m/s / 0.98 - 98.4 ft/s
- Data memory for 960 measured values
- Beaufort scale
- Software for reading out the measured values
- Swiveling telescopic arm
- Measuring range 0.3 - 30.0 m/s / 0.98 - 98.4 ft/s
- Data memory for 960 measured values
- Beaufort scale
Delivery scope:
1 x Thermometer PCE-HWA 30
1 x Micro USB cable
1 x Transport case
1 x Instruction manual
1 x Micro USB cable
1 x Transport case
1 x Instruction manual
- EAN Code:
- 4250348723321
- Typology:
- Flowmeter
- Brand:
- PCE INSTRUMENTS
