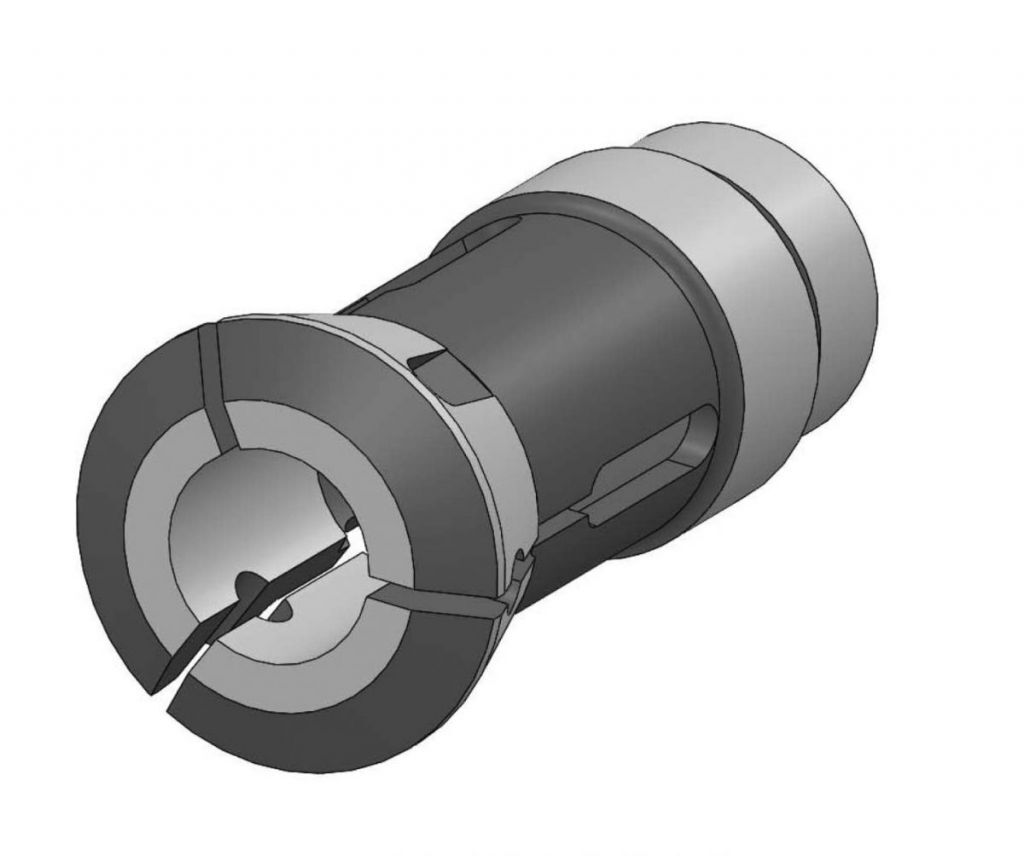

9210E Main Collet ROUND for Multi spindle lathes Schütte SD80 / VD80 - AF81 / SF81
The 9210E Main Collet ROUND is designed for use with multi-spindle lathes, specifically the Schütte SD80, VD80, AF81, and SF81 models. This collet provides secure clamping of cylindrical workpieces, ensuring precision and stability during machining operations. It is suitable for high-speed production environments and supports various material types. The collet's design facilitates quick setup and changeover, enhancing operational efficiency for manufacturers.
The 9210E Main Collet ROUND is a specialized tool used in multi-spindle lathes, particularly compatible with models such as Schütte SD80, VD80, AF81, and SF81. This collet is engineered to securely clamp cylindrical workpieces, ensuring that they remain stable and precise during machining processes. The design of the 9210E collet is particularly advantageous for high-speed production environments, where efficiency and accuracy are paramount.
This collet is versatile, accommodating a variety of material types, which makes it suitable for different manufacturing applications. Its construction enables quick setup and changeover, significantly enhancing operational efficiency in production lines. The 9210E Main Collet ROUND not only improves the overall machining accuracy but also contributes to reduced cycle times, making it a valuable component for manufacturers aiming to optimize their processes.
The following tables detail the technical specifications and characteristics of the 9210E Main Collet ROUND:
| Parameter | Value |
|---|---|
| Model | 9210E Main Collet ROUND |
| Compatibility | Multi-spindle lathes Schütte SD80 / VD80 / AF81 / SF81 |
| Workpiece Shape | Cylindrical |
| Clamping Type | Secure clamping |
| Application Environment | High-speed production |
| Material Compatibility | Various types |
| Efficiency Benefits | Quick setup and changeover |
| Characteristic | Description |
|---|---|
| Design Purpose | To secure cylindrical workpieces for precision machining |
| Manufacturing Sector | Applicable in various industries including automotive, aerospace, and general manufacturing |
| Operational Stability | Ensures stability and accuracy during high-speed machining operations |
| Setup Time | Designed for rapid setup and changeover |
| Precision Level | High precision for achieving tight tolerances |
| Durability | Constructed for long-lasting performance in demanding environments |
- Brand:
- SCHUTTE
- Application:
- Round
- Typology:
- Thread outside left
- Machine Type:
- AF81, SD80, SF81, VD80

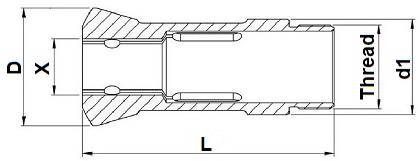

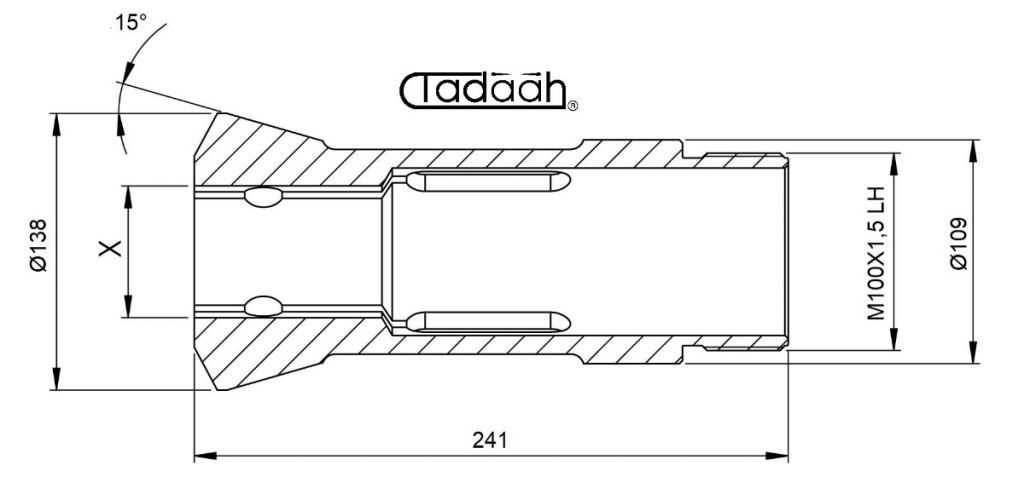

- Diameter "d1" mm:
- 109
- Dimension of thread :
- M100x1.5 LH
- Diameter "D" mm:
- 138
- Lengt "L":
- 241mm
- Angle "C":
- 15
- Code:
- 9210E
