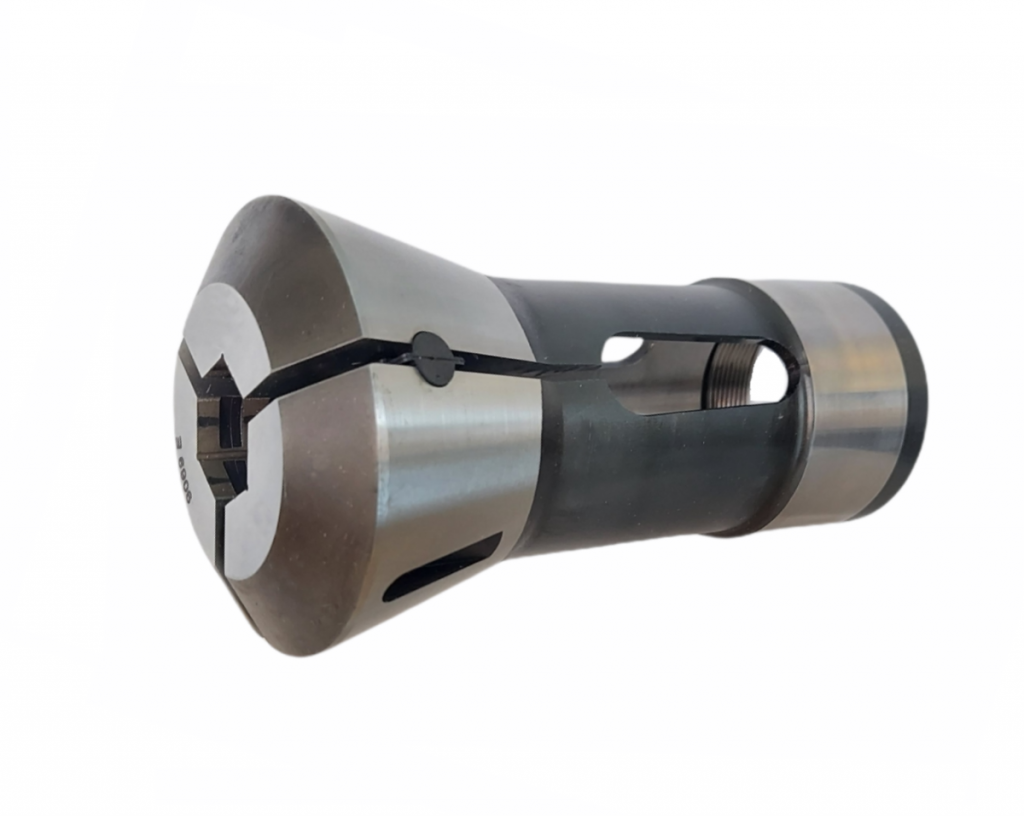

9069E Main Collet EXAGONAL for Gildemeister GM35, GM35AC, GM35/8AC, GMC35, Mori-Say 6/32, Mori-Say 8/32
Delivery times: 5-6 days even with HM coating, except unforeseen
The main collets will be supplied according to the available profiles, if you need a particular profile please write to us by clicking here
Main collet: for Gildemeister GM35-6, GM 35-8, GMC35 Var35, Mori-Say 6/32, 8/32. Mori-Say 6/32, 8/32
Clamping faces can be tungsten carbide hard coated. Giving a frontal closing load approx. 50% higher than uncoated as well as extending the life of the collet.
Application | Exagonal |
---|---|
Brand | GILDEMEISTER - DMG MORI, MORI-SAY |
Typology | Thread inside left |
Machine Type | GM32, GM35, GM35AC, GM35/8, GMC35, 6/32, 8/32 |

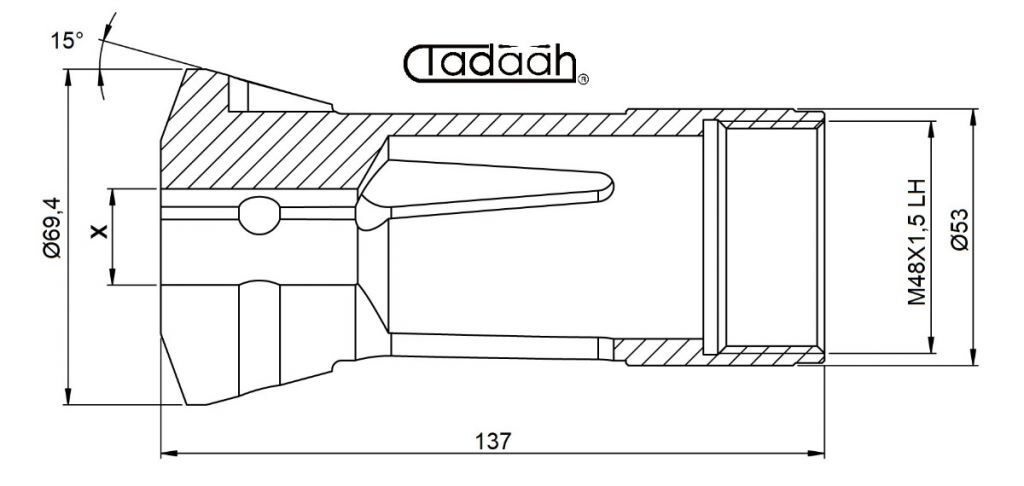

Diameter "d1" mm | 53 |
Dimension of thread | M48x1.5 LH |
Diameter "D" mm | 69.4 |
Lengt "L" | 137mm |
Code | 9069E |
