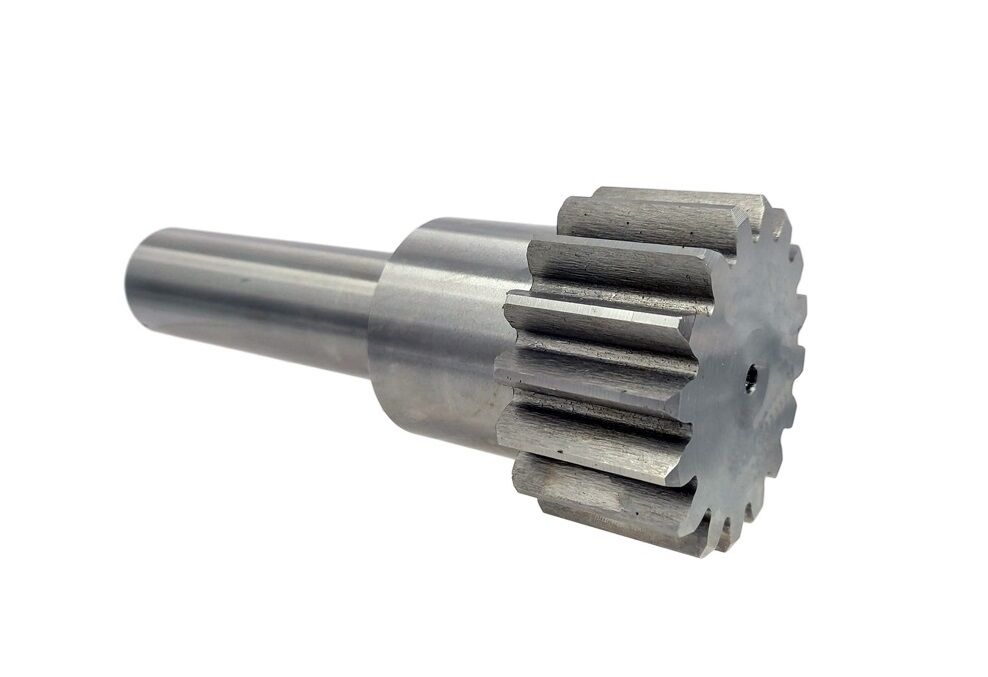

The Z16 gear for manual camshaft drive transmission is a critical component within the kinematic system of Gildemeister GM16AC multi spindle cam driven automatic lathes first version 5301. Its primary function is to transmit manual motion generated by the handwheels located on the control and rear side allowing controlled rotation of the camshafts during setup adjustment and maintenance operations. This enables precise cam positioning with high resolution reducing phase errors and improving machine setup quality. In addition to its manual function the gear plays a key role during automatic machine operation by stabilizing the external gear of the epicyclic system ensuring correct kinematic constraint of the gear train. During operation it is subjected to significant dynamic loads due to camshaft acceleration during idle times drum indexing and deceleration phases during machining operations. The tooth geometry and engagement quality directly influence motion transmission to auxiliary systems including radial and axial slides and tool holding spindles contributing to overall machine synchronization. Proper control of transmission play reduces backlash vibration and wear improving concentricity repeatability and overall machining accuracy even under demanding conditions typical of automotive and precision engineering sectors.
