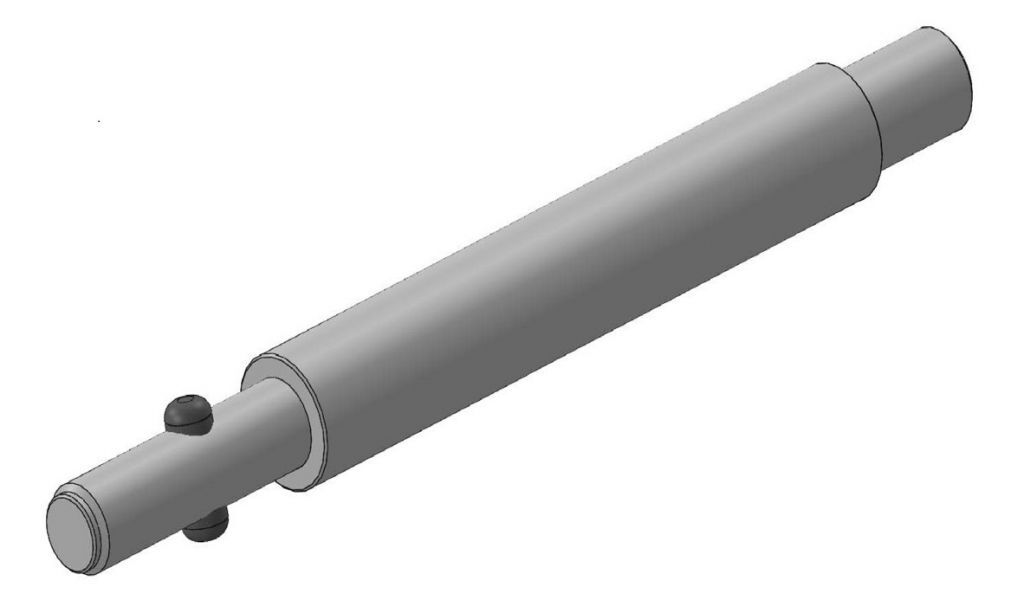

518.218 Barloader revolving diameter 18mm suitable for TORNOS ROBOBARfor collet with diameter 11mm - attack diameter 10mm
Product interchangeable with the original.
Delivery: approximately 1 week, with confirmation by mail.

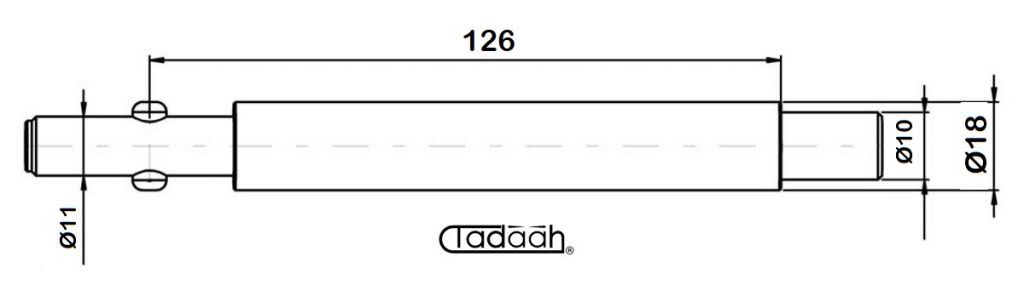

The dimensions correspond to the product chosen, but the drawing and images shown are indicative and not proportional.
Features:
The rotors are made of certified high-alloy steel, hardened and ground. The production process is carried out entirely in Italy with high precision machine tools and strict quality control.
Use:
On all CNC lathes, fixed head, sliding headstock using Tornos Robobar loaders, which perform internal and external turning, drilling, milling on all types of ferrous materials, low alloy, high alloy steels, cast irons, nickel alloys, titanium, bronze and brass, composite materials.
USE:
On the rotors is mounted the bar-pusher collet, the component being assembled with bearings, takes the rotation of the main spindle when the bar is closed with the bar-pusher collet.
Brand | TORNOS ROBOBAR |
---|---|
Diameter "D" mm | 18 |
Lengt "L" | 126mm |
Type of attack | Dia.10 |
Dimension "X" | 11mm |
