517.012 Bar loader revolving Diameter 12mm for collect with right thread M7x0.75mm - attack M8x1.25mm

517.012 Bar loader revolving Diameter 12mm for collect with right thread M7x0.75mm - attack M8x1.25mm

In stock
SKU
TD-517.012
Special Price €89.10 Regular Price €99.00

Non-original interchangeable product.

Delivery: approximately 1 week, with confirmation by mail.

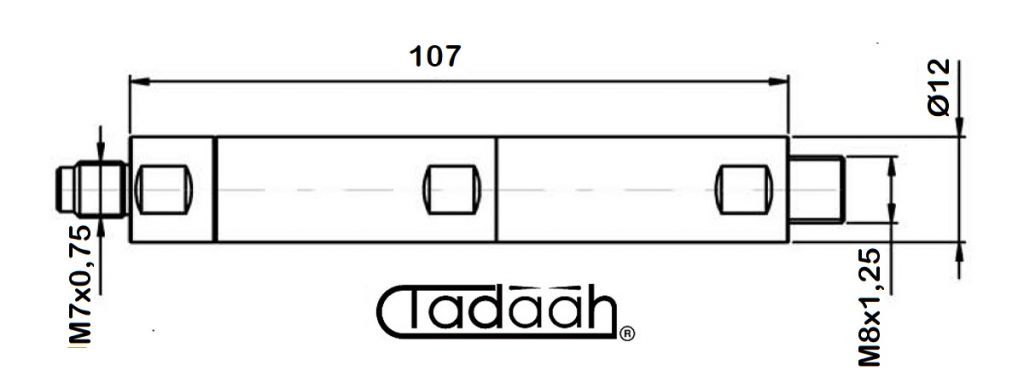

The dimensions correspond to the product chosen, but the drawing and images shown are indicative and not proportional.





Features:

The rotors are made of highly alloyed certified steel, hardened and ground. The production process is carried out entirely in Italy with high precision machine tools and with rigorous quality control.

Usage:

On all CNC lathes, fixed head, sliding head that use Cucchi loaders with right-hand thread, which perform internal, external turning, drilling, milling on all types of ferrous materials, low-alloy and highly-alloyed steels, cast irons, nickel alloys, titanium, bronzes and brass, composite materials

USE:

The bar pusher collet is mounted on the rotors, the component being assembled with bearings, it takes the rotation of the main spindle when the bar is closed with the bar collet.

Variants:

The product is chosen through the quotas and specifications required in completing the fields shown on the product.

More Information
Brand CUCCHI
Diameter "D" mm 12
Lengt "L" 107mm
Type of attack MF8x1.25
Dimension "X" M7x0.75
