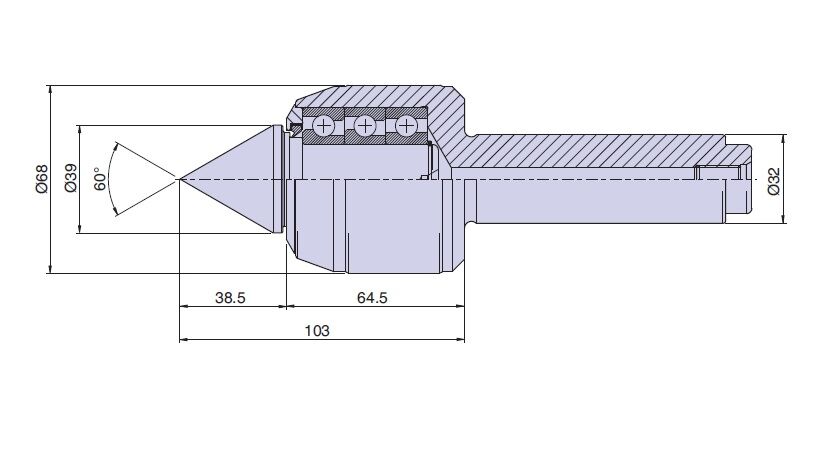

34014 Nuova PTM Standard Live center Type CNC4/S cylindrical coupling, MEDIUM load, Max daN 1250

34014 Nuova PTM Standard Live center Type CNC4/S cylindrical coupling, MEDIUM load, Max daN 1250

In stock
SKU
PTM34014
Special Price €327.03 Regular Price €419.27
(Incl. Tax: €398.98)
Medium load (Max radial and axial daN 1250)
CN series tailstocks are strong and precise, and are characterized by their excellent price-performance ratio.They are distinguished by their extremely compact and rigid outer body and are suitable for turning-finishing work on all types of high-speed lathes.
CN rotary tailstocks have been manufactured and assembled with WPS (Water Protection System) technoclogy, which exclude the entry of chips, dust or coolant as they have special seals inside and an internal permanent grease lubrication system.
The permenent grease present ensures their approximate life of about 1200 hours for each model, and they generally do not require maintenance but periodic overhaul is recommended.
Slight grease leakage is normal during the first few hours of operation.
If a tailstock is not used for long periods, it is advisable to start operating for a few minutes at low speed to allow the internal grease to resume its lubricating function.



Brand:
NUOVA PTM
Typology:
Cylindrical shank
Diameter "d1" mm:
32
Concentricity error max (mm):
0.005mm
Speed max (RPM/min.):
5000
