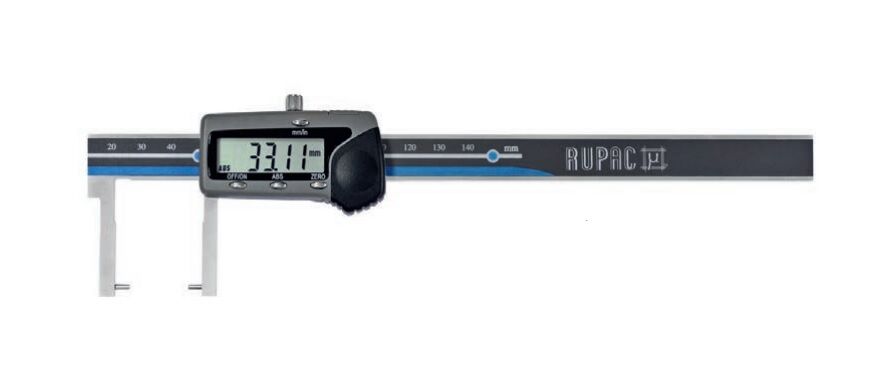

RUPAC S2996154 special digital caliper from the Digitronic Series for external grooves with cylindrical contacts, measuring range 0–150 mm and accuracy 0.03 mm.
(Incl. Tax: €214.72)
Special digital caliper for external grooves with inward-facing cylindrical contacts, 9.5 mm LCD display and mm/inch plus preset functions. Ideal for external grooves and slots. Supplied with case and battery
The Digitronic special-execution digital caliper for external grooves is designed for accurate measurement of external grooves and slots using inward-facing cylindrical contacts that rest securely on the surfaces to be inspected. This configuration allows precise determination of groove width and position, making the tool ideal for splined shafts, retaining-ring seats and sealing grooves.
The sliding caliper body with 9.5 mm high-contrast LCD display ensures clear and immediate readability, even under poor lighting conditions. The electronic unit provides all key functions required for professional use: ON/OFF, auto OFF, origin, mm/inch conversion and preset, which allows a reference value to be set and speeds up repetitive measurements.
Accuracy is defined by a dedicated internal standard, with the corresponding values listed in the technical table, while the robust construction guarantees long-term stability and metrological reliability. The caliper is supplied complete with protective case and battery, ready for use in workshops, metrology labs and dimensional inspection on components with external grooves.

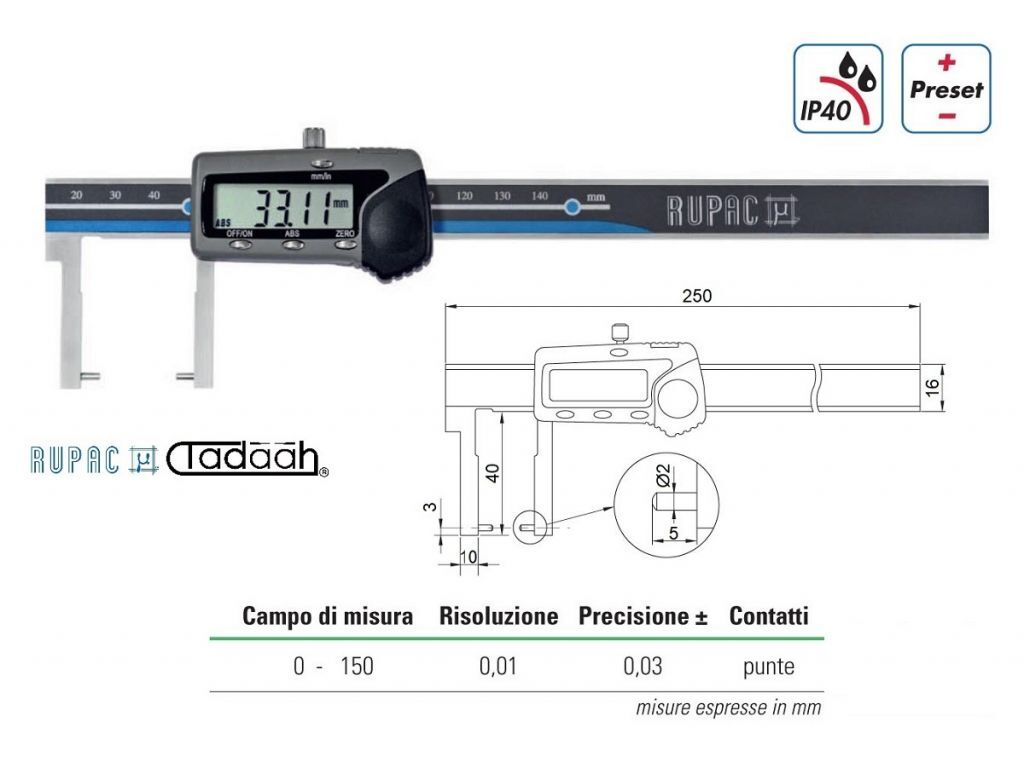

Technical Specifications – Caliper for External Grooves
| Code | Measuring range | Resolution | Accuracy | Contacts |
|---|---|---|---|---|
| 2996154 | 0 – 150 | 0.01 | 0.03 | pins |
- Brand:
- RUPAC
- Typology:
- For grooves
- Measurements range:
- 0 - 150 mm
- Resolution (mm):
- 0.01mm
- Lengt "L":
- 250 mm
