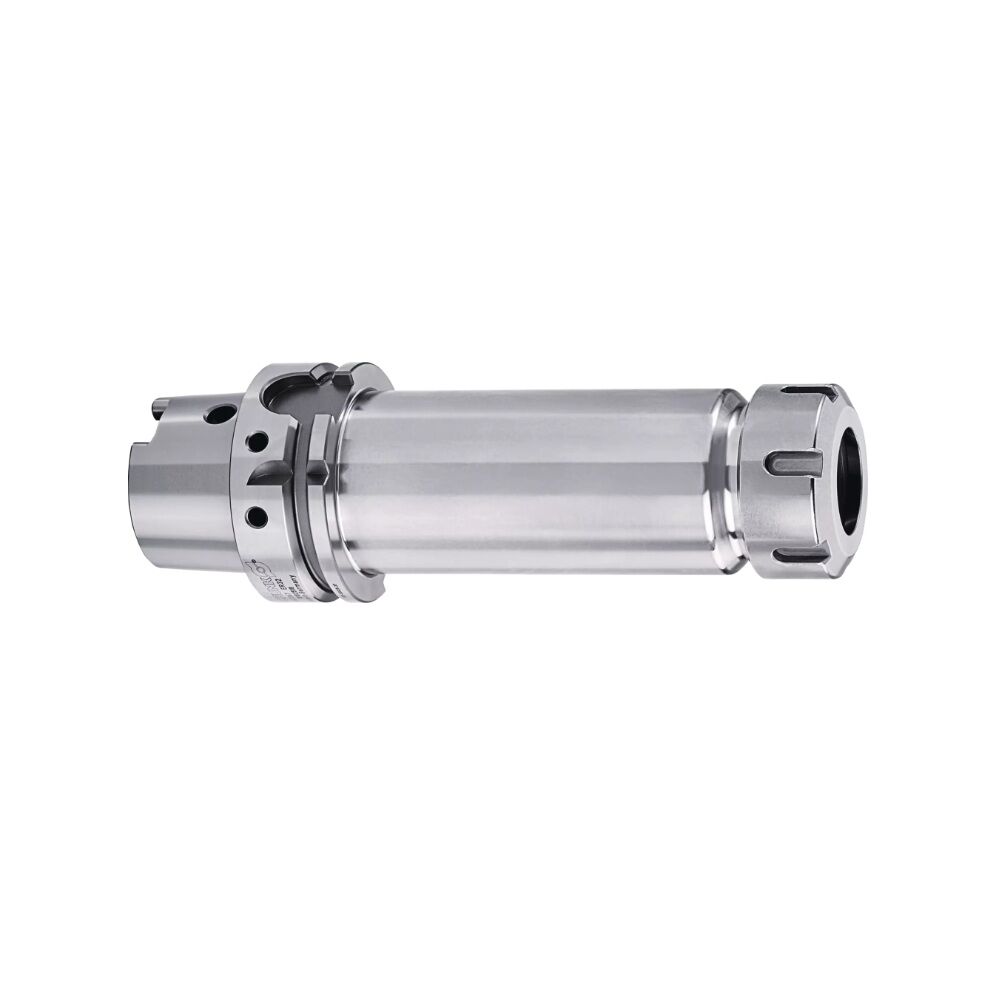

23005043 SCHUNK ER32 collet chuck with HSK100A shank DIN ISO 12164-1 for clamping tools with cylindrical shank DIN ISO 15488-B, length 200mm
(Incl. Tax: €450.18)
The ER collet chuck complies with DIN ISO 15488-B standards and provides a versatile solution for clamping cylindrical shank tools, with a wide operating range that accommodates various dimensional tolerances. The Dual Contact ER configuration ensures dual contact surfaces (taper and face) that eliminate any tool-spindle clearance, delivering exceptional stability for high-precision machining. The system achieves less than 0.008 mm runout at 2.5xD and G2.5 balancing up to 25,000 RPM (Umax <1 gmm). Featuring standard DIN 69873 coolant holes and automatic tool change compatibility, it also includes threads for axial adjustment (screw not included). The clamping nut is supplied as standard.
The SCHUNK ER32 collet chuck with HSK100A shank is an advanced tool designed specifically for securely clamping tools that have a cylindrical shank, in accordance with the DIN ISO 15488-B standards. Measuring 200 mm in total length, this chuck provides a combination of precision, stability, and efficiency that is essential for various machining applications.
This mandrel features a conical HSK100A interface that meets the DIN ISO 12164-1 standard, ensuring optimal torque transmission and stability. This is particularly critical for machining tasks that require high precision and consistent repeatability. Its innovative design facilitates easy and quick replacement of collets, enhancing production efficiency by minimizing downtime between tool changes.
The ER32 collet used with this chuck is of high quality, ensuring that tools are securely held in place, which significantly reduces the risk of vibrations or slippage during operation. The strong connection provided by the HSK interface maximizes cutting speed and improves the overall quality of the finish on the machined components.
This collet chuck is especially suitable for high-precision machining environments, where maintaining the geometry of the tools is crucial for achieving accurate results. The careful design and selection of high-quality materials ensure that the SCHUNK ER32 mandrel is an effective solution for professionals looking to enhance their machining processes.
| Product Name | SCHUNK ER32 Collet Chuck |
| Shank Type | HSK100A |
| Standard Compliance | DIN ISO 15488-B (for clamping tools), DIN ISO 12164-1 (for shank) |
| Length | 200 mm |
| Suitable for | Milling, turning, and high-precision machining tasks |
| Main Benefits | High precision, enhanced tool retention, reduced vibration risk, quick collet change |
In summary, the SCHUNK ER32 collet chuck is a top-tier product designed to meet the rigorous demands of modern machining, offering reliability and performance for operators and technicians alike.
- Brand:
- SCHUNK
- Typology:
- ER with standard ring nut
- Length "L":
- 200mm
- Size:
- ER32 - 470E
- Shank Type:
- HSK100A
- Diameter "d2":
- 50mm
- Diameter "D":
- 50mm
- Length "L1":
- 171mm
- Dimension "F":
- M24x1.5
