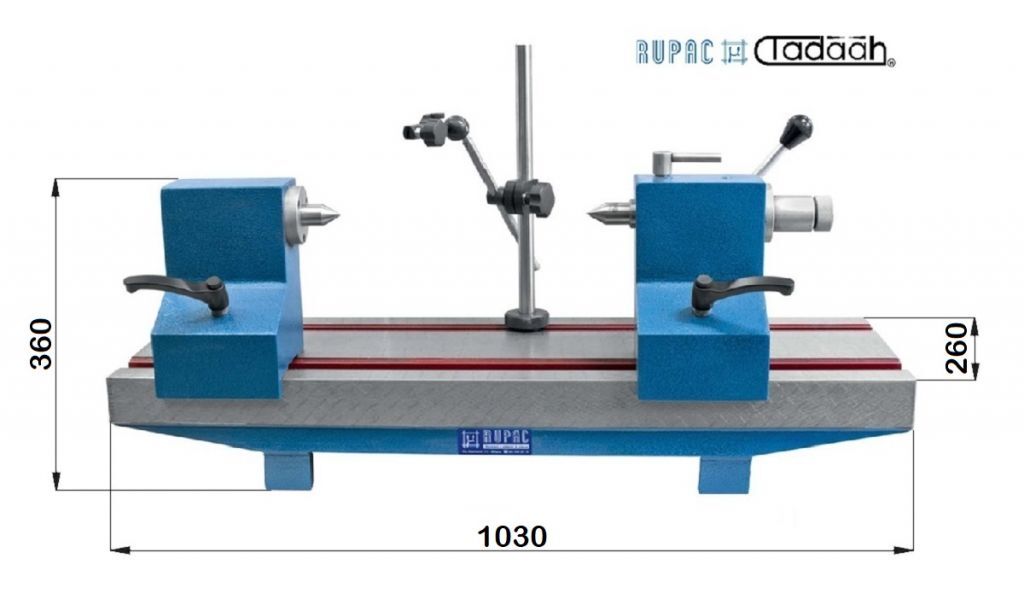

2005018 RUPAC MicroMet PLUS Series Eccentricity Control Unit-360x260x1030
In stock
SKU
RP-2005018
€2,235.00
(Incl. Tax: €2,726.70)
(Incl. Tax: €2,726.70)
Stabilized cast iron appliance.
Pair of tailstocks consisting of one tailstock with fixed tailstock and one with axially adjustable tailstock by means of a lever, with preloaded spring, stroke about 20 mm.
The tailstocks are supplied with dial gauge column with micrometric adjustment and Ø 8 mm connection hole.
Minimum base hardness: 180HB
Accuracy: DIN 876/1
Minimum base hardness: 180HB
Accuracy: DIN 876/1
Minimum tailstock hardness: 750HV. Cone 60°.
Guide rail flatness: 0,02 mm.
Parallelism of the tailstock axes with the base ± 0.01: 300 mm.
Distance between tips: 500mm
Height of tips: 200 mm
Coaxiality of tailstocks: ≤ 10 μm.
Taper of the tips: MT3.
Max piece weight: 100 Kg
Net (gross) weight: 105 Kg (130 Kg)
- Brand:
- RUPAC
- Typology:
- Control bench centers
- Dimension :
- 360x260x1030mm
