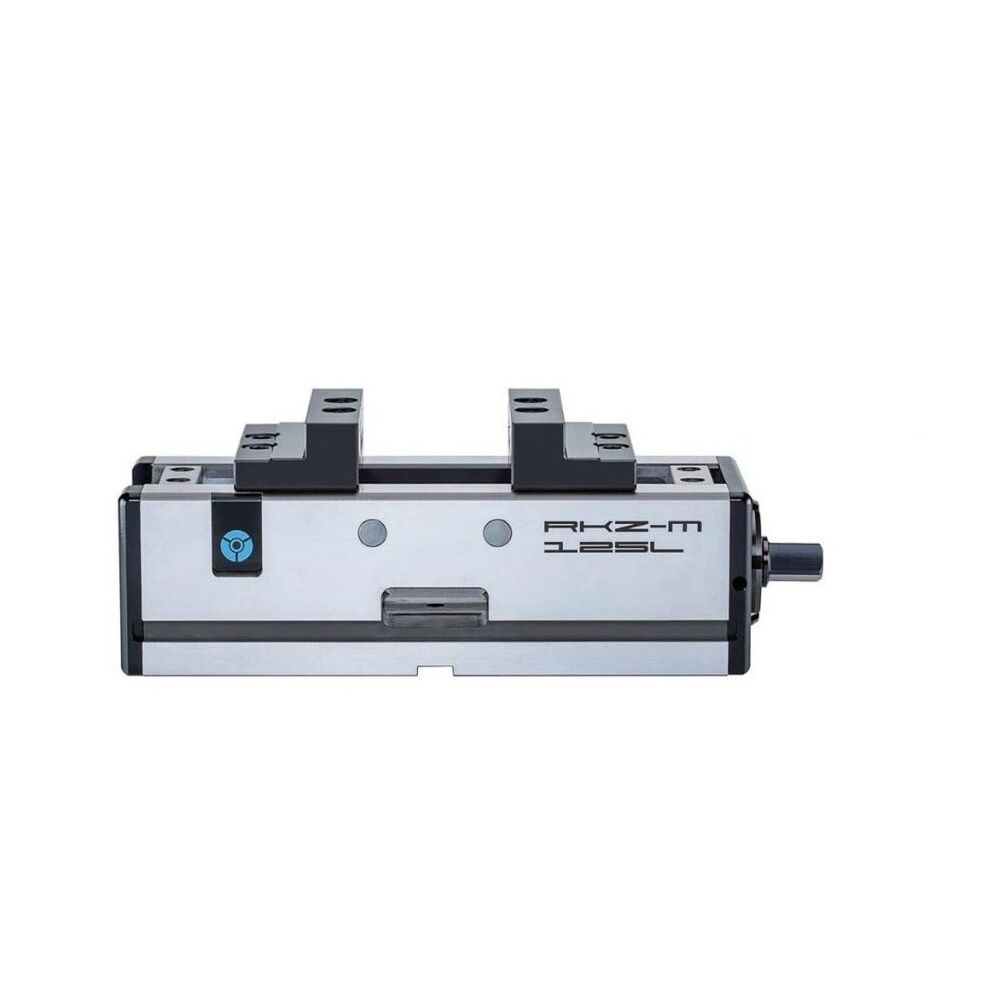

180190 Vice Rohm RKZ-M clamping system mechanical without power transmitter, manually operate, with stepped jaws length 50mm - Clamping force 10kN
In stock
SKU
RH-180190
€1,535.00
(Incl. Tax: €1,872.70)
(Incl. Tax: €1,872.70)
Features:
- Highest average precision and repeatability
- Minimum collision contour
- Minimum collision contour
- Clamping system: mechanical
- Constant clamping force for each clamping process and high repeatabilityin combination with a torque wrench
APPLICATION:
Optimized for 5-axis machining.
TYPE:
- Clamping system mechanical without power transmitter, manually operated.
- Centric clamping with two moving jaws.
CUSTOMER BENEFITS:
- Short, compact design
- Large clamping stroke
- Constant clamping force for every clamping operation and high clamping repeatability when a torque wrench is used
- Clamping accuracy at the centre: ± 0.02 - clamping repeatability: 0.01
TECHNICAL FEATURES:
- Steel basic body as well as all guides hardened and ground on all sides
- Standard-equipped with stepped top jaws
RKZ-M = RÖHM, compact, centrical, manual
- Brand:
- ROHM
- EAN Code:
- 4019208322704
- Typology:
- Manual vice
- Size:
- 50mm
