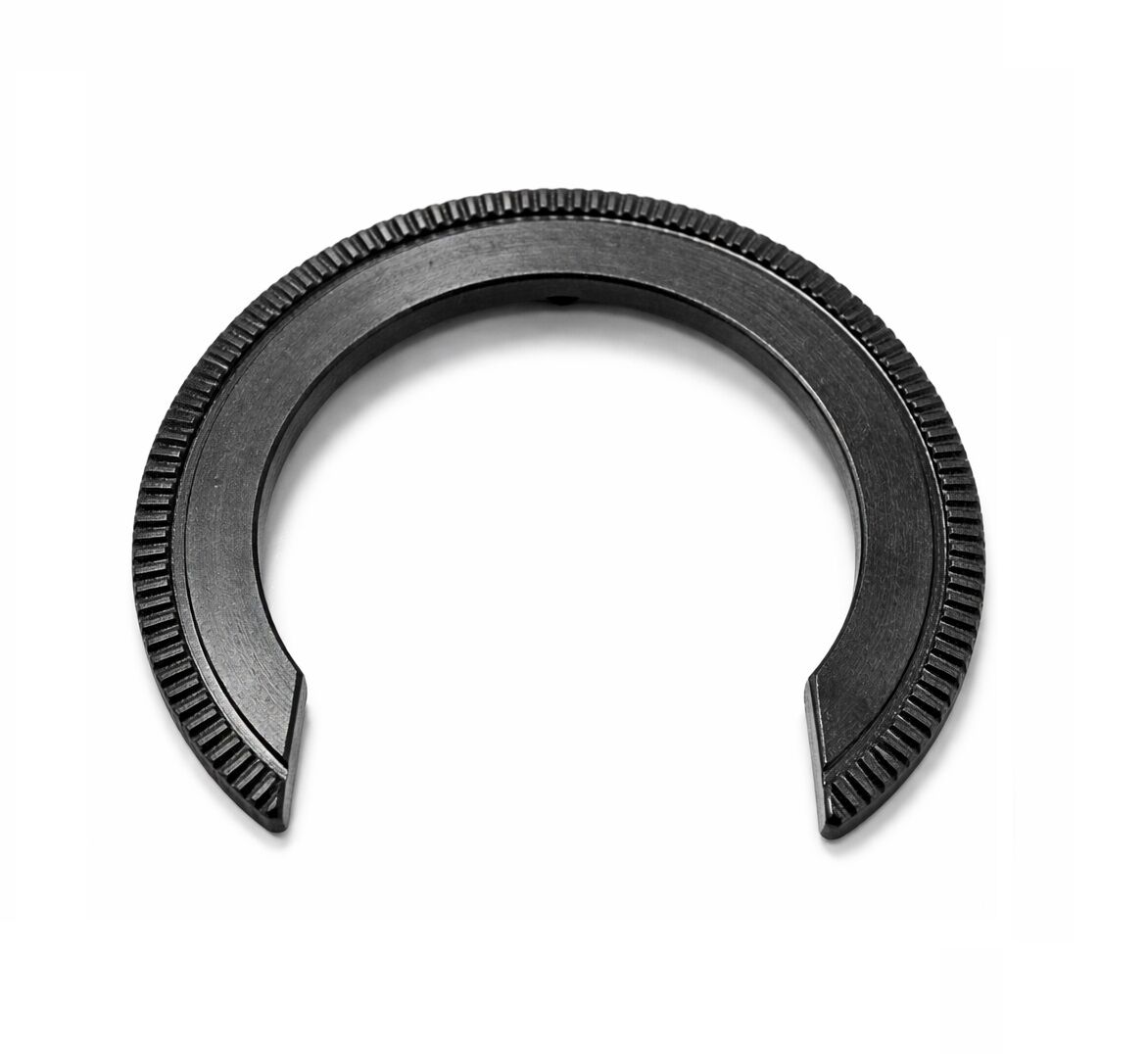

The 0805102 toothed ring is an essential component for locking the cams onto the cam-holder hub of the right- and left-hand shafts of Gildemeister AS16, AS20, GS20, GM20 and GM20AC multispindle automatic lathes. Its <strong>toothed interface</strong> ensures rigid and repeatable engagement, preventing micro-movements of the cam under dynamic load. Each tooth corresponds to a 3° angular index, allowing extremely fine timing adjustment and enabling the cam angle to be set precisely according to machining requirements.

This precise angular control avoids timing drift, stroke variation and unwanted deflections, ensuring stable performance during drilling, pick-up and frontal or radial machining. The ring is designed to withstand high rotational stress and rapid acceleration typical of multispindle systems, maintaining long-term reliability and synchronisation. Wear on the teeth can compromise phase accuracy and should be monitored to ensure machining precision and gearbox longevity.

For angular adjustment, mounting assistance or compatibility confirmation, Tadaah’s technical experts are available to support all Gildemeister AS20, GS20, GM20, GM20AC, GM32, GM35, GM42, GM35AC and GM42AC models. Contact us to optimise your camshaft system.
