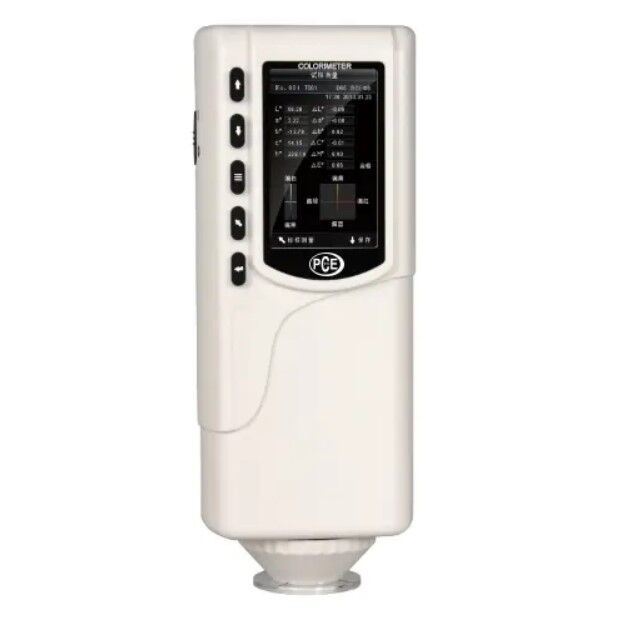

PCE Instruments PCE-CSM 5 High-Precision spectrometer for quality control with software, lithium battery, white calibration, multiple color spaces, and interchangeable measurement areas (4 mm & 8 mm)
In stock
SKU
PCE-CSM-5
€2,479.22
The PCE-CSM 5 spectrometer is an advanced tool designed for quality control with high precision. Equipped with automatic calibration on white and included software, it measures various color spaces such as CIE LAB, XYZ, LCh, RGB, and LUV. The interchangeable apertures of Ø 4 mm and Ø 8 mm allow for analysis of different surfaces. Results, which can be stored up to 100 reference values and 20,000 samples, can be transferred to a PC via USB. The lithium battery ensures long operational duration and fast recharging.
Technical specifications:
| Measuring geometry | 8°/d |
| Measuring aperture | Ø 6 mm, Ø 8 mm (exchangeable) |
| Sensor | Silicon photoelectric diode |
| Color spaces | CIE LAB, XYZ, LCh, RGB, LUV |
| Color difference formula | ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00 |
| Other color parameters | WI ( E313，CIE, AATCC，Hunter )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCII |
| Observation angle | CIE 10° |
| Light source | D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 |
| Data on display | colorimetric value color difference (value/graph) PASS/FAIL result colour offset |
| Measurement time | 0.4 s |
| Repeatability | Standard deviation within ΔE*ab 0.03 Average of 30 measurements of standard white plate |
| Error between Equipment | ΔE* ab 0. 2 |
| Storage | 100 reference values, 20,000 samples |
| Interface | USB / RS-232 |
| Display | TFT 2.8" (16:9) |
| Power supply | Rechargeable lithium-ion battery 3.7 V @ 3,200 mAh |
| Battery life | approx. 5,000 measurements |
| Lamp life | 5 years, more than 1.6 million measurements |
| Operating temperature | 0 - +40 °C / 32 - 104 °F |
| Storing temperature | -20 - +50 °C / -4 - 122 °F |
| Dimensions | 205 x 67 x 80 mm / 8 x 2.6 x 3.1 in |
| Weight | 500 g / 17.6 oz |
The PCE-CSM 5 spectrometer is an advanced and highly precise tool designed for quality control across various industrial and commercial applications. This device is engineered to provide detailed and reliable color analysis, making it ideal for environments where maintaining high color standards and consistent quality is essential.
The PCE-CSM 5 measures various color spaces including CIE LAB, XYZ, LCh, RGB, and LUV, using an LED light source to ensure accurate results even under variable lighting conditions. The automatic calibration on white and black is a key feature of the device, as it ensures precise measurements by reducing errors and improving repeatability, crucial for production processes and quality control.
The device features two interchangeable apertures of Ø 4 mm and Ø 8 mm, allowing the spectrometer to adapt to a wide range of surfaces and sample sizes. This versatility enables it to analyze moist, textile, and food materials with high accuracy. The ability to select different apertures allows for detailed measurements on surfaces of varying sizes, ensuring comprehensive sample evaluation.
Once a measurement is taken, the PCE-CSM 5 automatically saves the results in the device's internal memory. It can store up to 100 reference values and 20,000 samples, facilitating detailed comparison and analysis of collected data. Results can be easily transferred to a PC via the USB interface, allowing for detailed analysis and report generation with the included software, which significantly enhances control quality and optimizes daily operations.
The ergonomic design and intuitive user interface of the spectrometer make it simple and accessible even for less experienced operators. The rechargeable lithium battery offers long operational duration, enabling over 3,000 measurements on a single charge. The rapid recharge time ensures that the device is always ready for use, avoiding prolonged interruptions in quality control activities.
The PCE-CSM 5 is applicable in numerous industrial and commercial sectors. In the food industry, it is used to ensure that products such as fruits and vegetables maintain optimal color consistency. In the textile industry, it is essential for monitoring the consistency of fabric colors during dyeing and production processes, ensuring that final results meet color specifications. In the industrial sector, the spectrometer is employed for quality control of paints, plastics, and construction materials, verifying that each production batch meets predefined color standards and ensuring uniform product quality.
In conclusion, the PCE-CSM 5 represents an essential tool for anyone requiring accurate and in-depth color analysis. Its precision, versatility, and reliability make it indispensable for technicians, engineers, and quality operators. It provides the necessary tools to improve consistency and efficiency in daily operations, ensuring that products meet industry regulations and end-consumer expectations. With the PCE-CSM 5, companies can achieve a higher level of quality control and color accuracy, essential for maintaining high product standards and meeting modern market demands.
Caratteristichs:
- CIE LAB, XYZ, LCh, RGB, LUV
- white calibration
- determination of reference values and samples
- exchangeable measuring apertures
- white calibration
- determination of reference values and samples
- exchangeable measuring apertures
- rechargeable lithium-ion battery
- suitable for many different surfaces
- easy to use
- incl. PC software
- suitable for many different surfaces
- easy to use
- incl. PC software
Delivery scope:
1 x Color meter PCE-CSM 5
1 x Lithium-ion battery
1 x Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual
1 x aluminum carry case
1 x Lithium-ion battery
1 x Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual
1 x aluminum carry case
- EAN Code:
- 4250348716491
- Typology:
- Spectrometer
- Brand:
- PCE INSTRUMENTS
